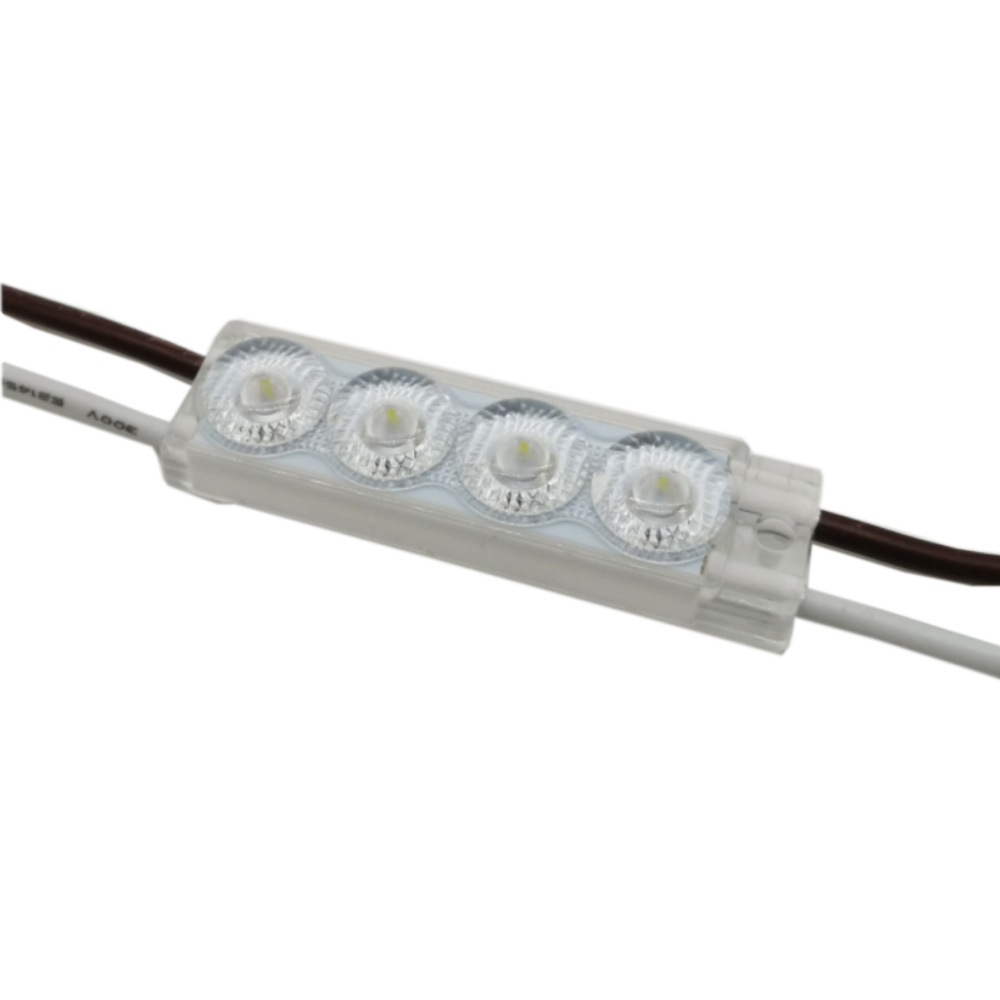

100pcs/pack 2835SMD x 4 Bezel-Free Lens Module for Channel Letter 220VAC

Unit Price:$117.90 - 131.00/pack(Discount Notice)

Buy More, Save More!

Qty (packs) Discount Amount/pack
    1 - 5 0% $131.00
    6 - 19 10% $117.90

Need more quantities, please submit a Bulk Order inquiry

Get Coupon: $500Order ≥ $4999 $200Order ≥ $1999 $100Order ≥ $999 $50Order ≥ $499 $30Order ≥ $299 $10Order ≥ $100

Please choose

  • Warm white
  • Natural White
Quantity:
pack(s) Total Cost: USD $131.00

Shipping Weight: 3.7lb (1.7kg) freightFreight

Order Now Add to Cart Ask A Question

Buyer Protection

Your are Viewing: Price : $117.90 - 131.00/pack Order Now
Cart 0 item(s) Back to Top

Features
1, Adopt high quality 2835 light source adopts, high brightness, uniform color, good antistatic ability;
2, Without power adapter, AC220V directly, constant current circuit design, single LED module can be cut;
3, With NEWEST 160° optical lens,Bezel-Free re-innovated lens, beautiful shape, high conductivity aluminum PCB, cooling effect is good.
4, Adopts bezel-free lens, glue process, flame retardant grade up to UL94V-2, waterproof grade IP68.
5, Application: Mainly used in 6-20cm channel letters and lighting boxes etc.

Packing information:
Packing box: 81.2 x 27.3 x 21.8cm
100pcs/pack, 10packs/box, 1000pcs/box
N.W:15.0KG/G.W:17.0KG

Remarks of installation and application:
(1). Power lines use 2 x1.5mm² cable (according to the load current to select the corresponding power lines), if module cord need to lengthen must choose over 0.75mm²/ 18 # specifications wire, in order to avoid excessive overload causes the power cord fever, cause adverse consequences;
(2). Per LED Module can be cut, cut short when the module connection, centered with diagonal cutting pliers first cut off the power supply cord between the two modules, decortication around 10 mm, then USES the special waterproof insulation waterproof adhesive tape, and final inspection power terminal guide connectivity and firm, with bare hands can't pull out wire line from terminal advisable;
(3). Modules installed at the bottom of the first module of gum from type paper torn off, preliminary fixed on light boxes or advertising logo inside, and then USES the two ST2.5 x10mm self-tapping screw locking reinforcement, also can be used on both sides of the module, a fixed glass glue way;
(4). The end of the module threads to use waterproof tape or wiring plug waterproof processing, avoid short-circuit damages to the products;
(5). This AC module standard 50 PCS, please do not excess connection, avoid damage to the product line load current is too large.
Note: Recommended to use with the relevant safety certification of air-switch before feed.

LED Type 2835
Operating voltage(V) AC220V Color of the shell White
Power 1.0W Weight (50PCS) 450g
Luminous Flux 95Lm Cascade Qty (pcs) 50PCS
Lighting effect 95lm/W Fixing way ST2.5x12mm

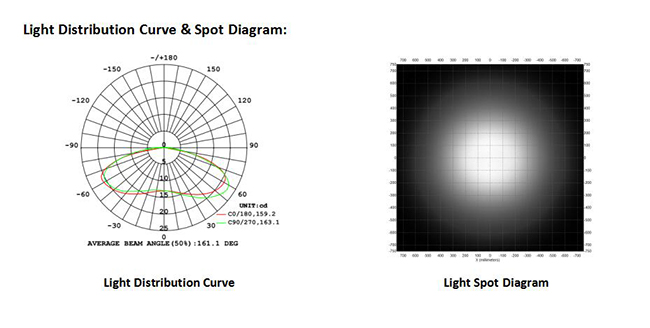

Beam angle 160° Back Tape 3M foam tape
Quantity of LED (pcs) 4LEDs Operating temperature -25~55℃
Protection class IP68 Storage temperature -25~70℃

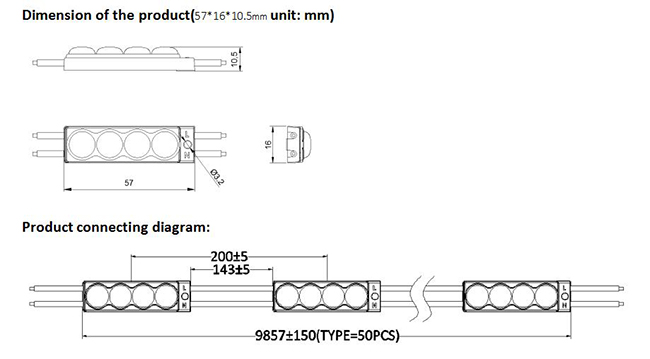

Dimension(mm) 57 x 16 x 10.5mm Warranty 5 years
Type of led SMD2835 CT/WL of led 3000-3200K / 6000-6500K
CRI >70 Luminous flux 95Lm/LED

Product Application:

Solution Width(mm) Thickness (mm) Size (mm) Arrangement way(m²) Arrangement distance (mm) Module Qty (PCS) Installation density (PCS/m²) Surface illumination (LUX/m²)
Solution 1 63 60 510x320 0.163 90 13 80 4000-4500
Solution 2 82 80 665x415 0.28 120 14 50 2500-3000
Solution 3 110 100 885x507 0.45 140 16 35 1600-2100
Solution 4 130 120 1060x665 0.71 155 19 27 1000-1500
