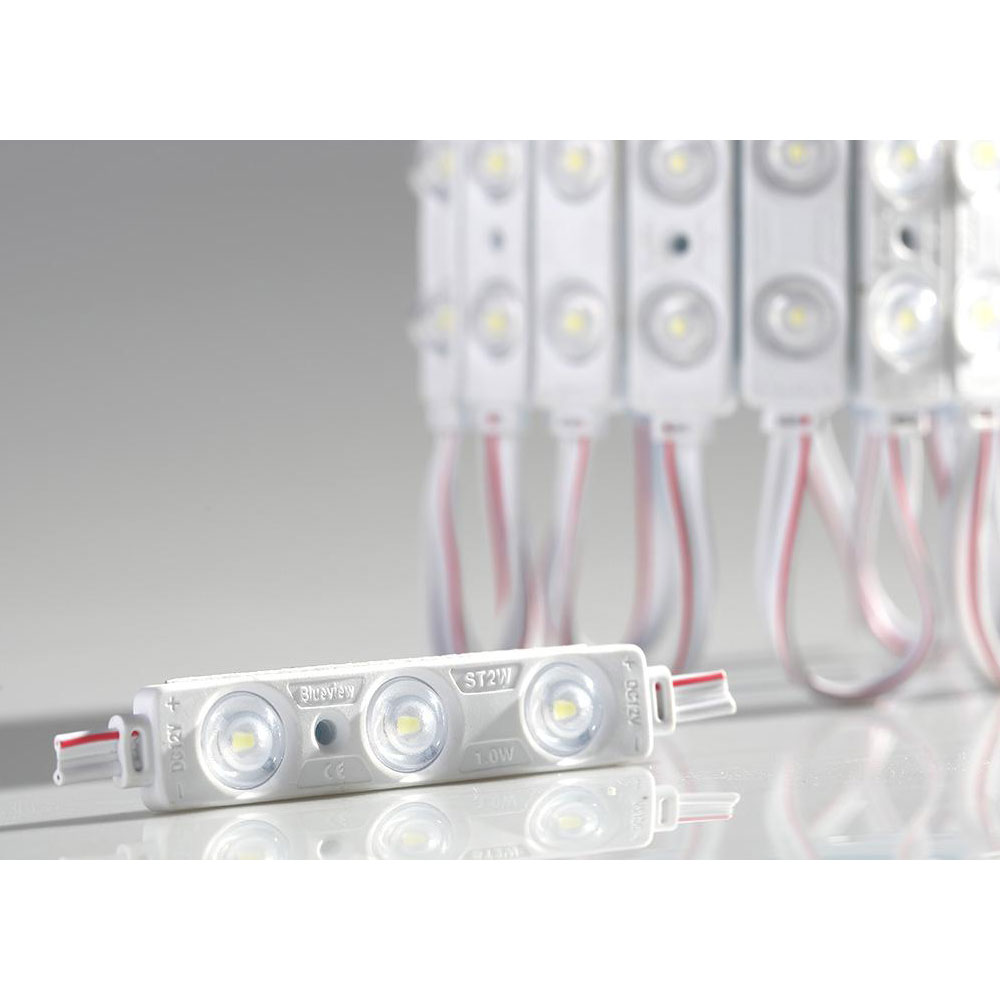

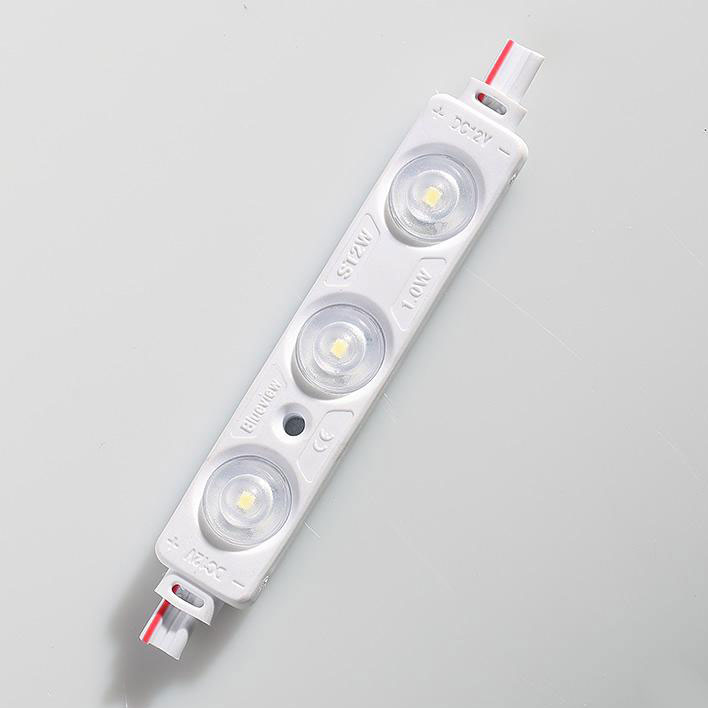

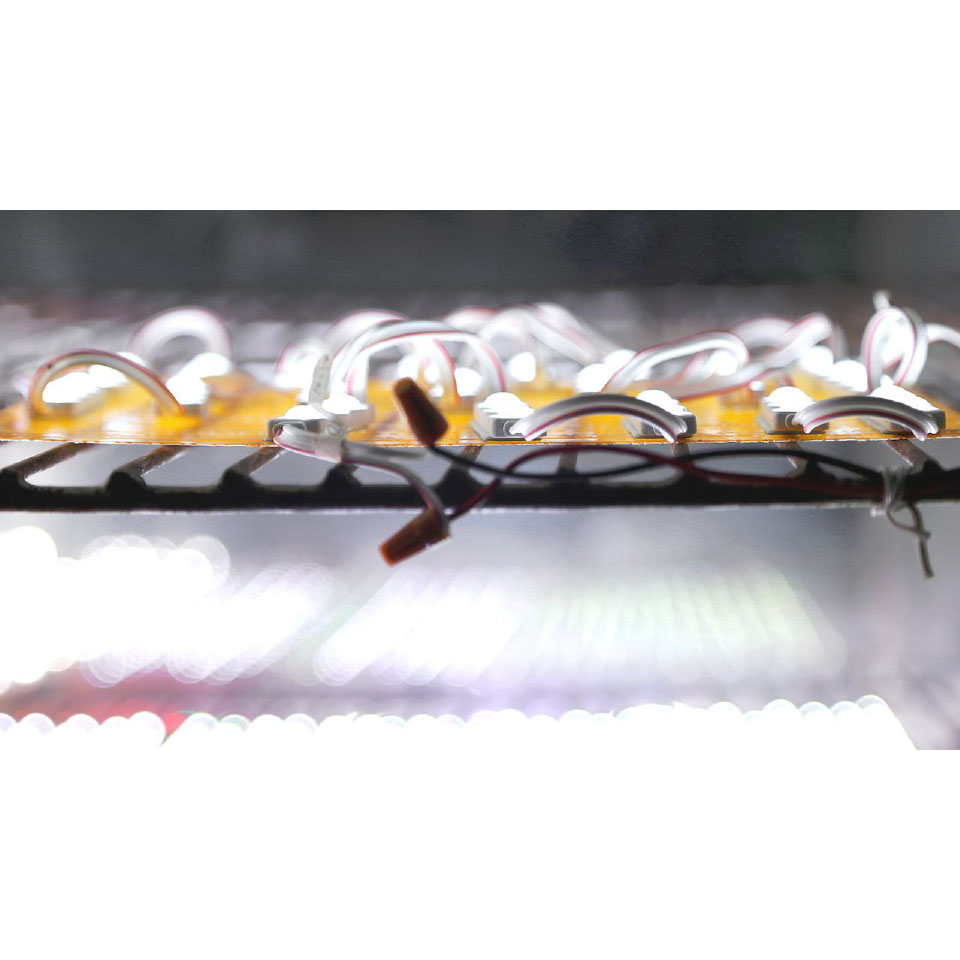

SMD 2835 Waterproof LED Module (3 LED Chips with Aluminum PCB Injection, White Light, 1W, L71.5 x W13.5 x H6.7mm), DC12V for Channel Letter
Features:

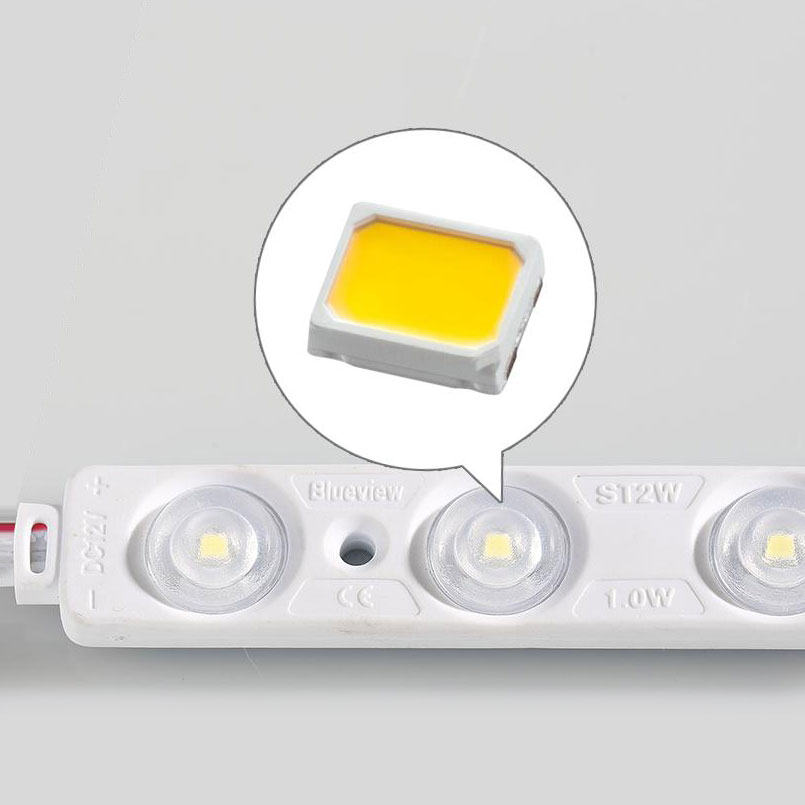

1. High quality 2835 LEDs
2. Aluminum PCB injection for better outline

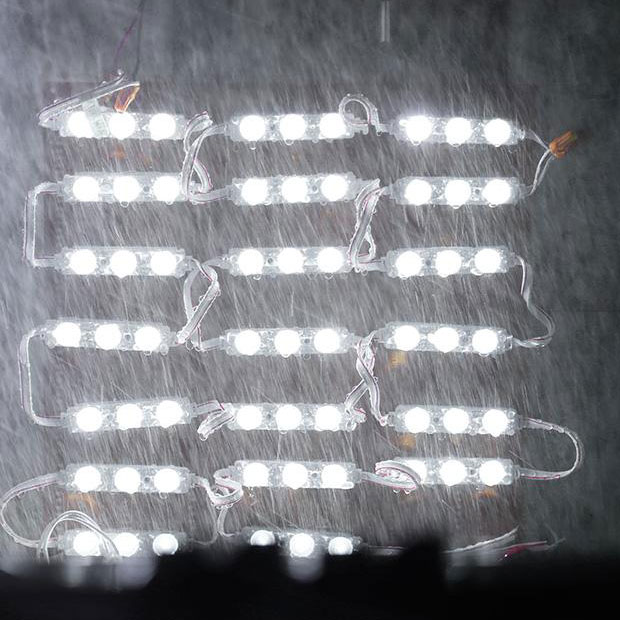

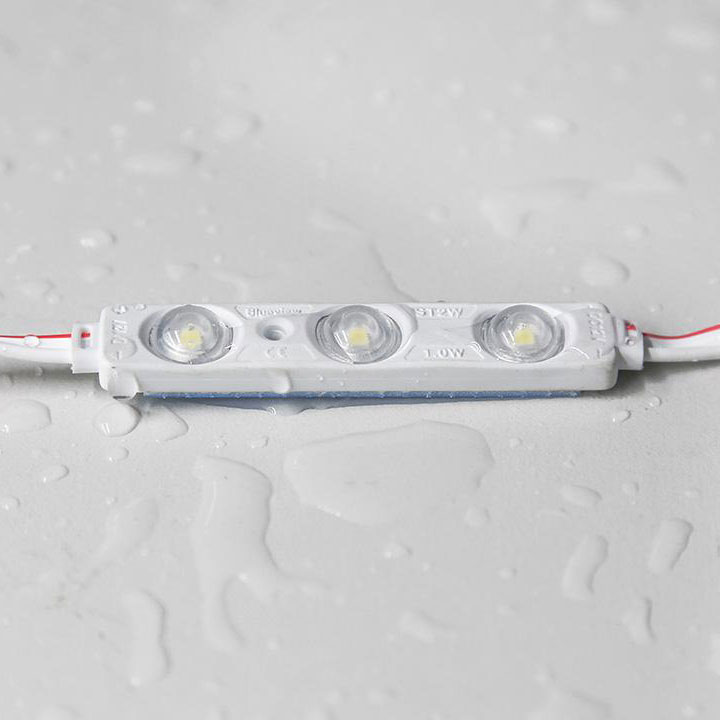

3. IP65 perfect for indoor and outdoor
4. Input voltage: DC12V
5. Single module cuttable
6. 160° wide beam angle for uniform lighting
Application:
Back-lit lightbox with thickness of 6-18cm (0.236in - 70.86in), luminous letter, LOGO etc.
Typical Clients Case:
Nike House of Innovation
A landmark in leipzig, Germany
Details:
Installation:
Fix by self adhesive tape or screw.
| Installation Reference |
| Bottom Color of Lightbox |
Surface Material |
Depth
|
Illumination (lux) |
Density pcs / sqm |
Spacing (X x Y) cm |
Visual Effects |
| White |
White
Soft Film
|
6cm(2.36in) |
7980-8950 |
10 x 12 |
10 x 8 |
OK |
| 8cm(3.15in) |
6340-6700 |
10 x 10 |
10 x 10 |
| 10cm(3.94in) |
3430-3700 |
7 x 7 |
14 x 14 |
| 12cm(4.72in) |
2290-2570 |
6 x 6 |
16 x 16 |
| 15cm(5.9in) |
1820-2080 |
5 x 5 |
18 x 18 |
| 18cm(7.09in) |
1750-1930 |
5 x 5 |
18 x 18 |
Attentions before installation:
• Before installation, check that the product parameters are consistent with the requirements (Seeing product specificationsor product labels)
• Load voltage, current, power and power supply should be matched with the product.
• Follow the instructions of wiring diagram (first connect the load and then the power supply) to avoid short circuit.
• Make sure the correct connection of positive and negative poles between products and power supply. Otherwise, the light will not be on.
• Make sure the power cord firmly screwed into the terminal and it should not be pulled out by hands.
• The terminal should have insulation,waterproof and anti-corrosive treatment.
Statements and Recycling:
Statements:
Repair should be operated by a qualified technician, if the external circuit or main line of this product is damaged. The parameters given in this manual are typical values and for reference only.
All illustrations and drawings in this manual are for reference.
This product is subject to change without notice.
Recycling:
LED lighting products belongs to electronic products, please do recycling treatment according to the relevant WEEE directives.
Profile Drawings:
Luminous Intensity Distribution Diagram:
Average Illumination:
Certificates
Packing:
Examples:
Light Box
Channel Letter
Process:
Application:
- 1. I don’t know this website well, how can I trust you?
-
Sign-in-Global.com has launched online bussiness for 6 years who already has established customers over 120 countries and areas. We are the lifelong member of ISA and SGIA, and the verified user of PayPal as well as approved by BBB certification.
Learn more about us from the following links:
19th Reklama Pholygraf Trade Fair 2012
ISA International Sign Expo 2012
Exhibition of International Trade Fair for Visual Communication, Technology and Design in Düsseldorf, 2011
More >>
Buyers say:
John Hanmer from USA
Jackson, Andy and David from UK
Ben Wong from Thailand
Adam Fernanders from South Africa
JLuciano from Brazil
Adam Fernanders from Australia
More >>
- 2. Not clear about the Price Policy of Sign-in-Global.com?
-
a) The Stepped Price
According to the different procurement quantities of customers, Sign-in-Global.com formulates different price levels for commodity. Hence, your purchase price will be ultimately attributed to the procurement quantity.
The Stepped Prices shown on the product page is as following:
b) Trial Order Price / Sample Price
We offer free samples or some lower priced products（the product price plus shipping cost only）for our customers easily to experience our products and services from purchasing.
For details, please click:
https://www.sign-in-global.com/product/sampleproduct.html
c) Limited Time Offers
Every Tuesday Sign-in-Global.com releases the latest products for Limited Time Offer, and after one week, the original price will be recovered. We sincerely expect your timely attention to the discount activities of Limited Time Offers on Sign-in-Global.com.
For details, please click:
https://www.sign-in-global.com/product/discount.html
d) Flash Wholesale
Every Monday Sign-in-Global.com and cooperation factory jointly campaigns the Flash Wholesale products for bulk purchase customers, and after a week, the original price will be receovered. We sincerely expect your timely attention to the preferential activities on Sign-in-Global.com.
For details, please click:
https://www.sign-in-global.com/product/hotproduct.html
e) You decide the prices for Bulk Orders
If the commodity quality you choose beyonds the quantity of fourth step price on Sign-in-Global.com, or if you think the website stepped prices don’t meet your bulk purchase demand, you can use our "Make Offer" service on Sign-in-Global.com to fill out your planned purchase quantity and target price then submit as a Bulk Order, for which we will review and endeavor to realize the deal with you.
If you need bulk order , please enter here to Make Offer:
- 3. How to pay? Can I use credit card?
-
You may use the following methods of payment: PayPal online payment, PayPal direct payment, credit card (through PayPal gateway, some areas may be restricted), bank transfer, and Telegraphic Transfer (T/T) payment.
For details, please refer to the following:
- Bank transfer payment information:
- BANK NAME: HSBC
- BANK ADDRESS: 1 QUEEN’S ROAD CENTRAL,HONG KONG.
- BANK SWIFT CODE: HSBCHKHHHKH
- BENEFICIARY NAME: CHINASIGNS INFORMATION (HONGKONG) CO.,LTD
- ACCOUNT NUMBER: 801165036838
- 4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
-
PayPal, one of the faster and safer ways to pay and get paid online, has worldwide 113 million active accounts, and supports 190 markets and 25 currencies. As a result, PayPal enables global commerce.
For details:
https://www.paypal.com/webapps/mpp/paypal-safety-and-security
- 5. Why did my PayPal payment fail?
-
The main reasons of failures and solutions:
a) Confirm if your credit card requires verification:
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=10568&m=SRE
b) Confirm if you have exceeded the limitation of maximum amount
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=11516&m=SRE
c) Confirm if you have any other restrictions
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94053&m=SRE
- 6. How can I know if it is paid successfully?
- We will send you a payment confirmation email upon receiving your payment, and your purchase order in “My Account” will be categorized as “Paid”. If you use check or Telegraphic Transfer (T/T) payment, we will change the status of your order until your payment confirmed , and then we will send you the conformation email.
- 7. How long can I receive the items?
- Normally speaking, we will spend 1 or 2 days to prepare the order and if it requires longer time, we will inform you as soon as possible. The general shipping time will be 3 to 7 days. Therefore, under normal situation, you will receive the items in 4 to 9 days.
- 8. How to receive my order ? Is it safe during shipping?
- For the items you purchased online, we will arrange international express delivery to ship and usually the carriers are FedEx, TNT, UPS, DHL, or EMS.
It shall be quite safe during shipping with substantial package. Additionally, we will purchase insurance as a gift for your package.
- 9. How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?
- We will send you the tracking number after shipping your items, hereby please keep on checking your email.
- 10. How to return items and how about the warranty?
-
For details, please click the following links:
Changes & Returns: https://www.sign-in-global.com/info/ChangesandReturns.html
Warranty: https://www.sign-in-global.com/info/QualityWarranty.html
- 11. If I still have questions to this product, what shall I do?
-
Please click
Inquire Now
on the product page and submit your questions, we will reply you as soon as possible.
- 12. How to change my shipping address?
- You can change your shipping address on the confirmation page of your purchase order.
- 1. I don’t know this website well, how can I trust you?
- Sign-in-Global.com has launched online business for 6 years who already has established customers over 120 countries and areas. We are the lifelong member of ISA and SGIA, and the verified user of PayPal as well as approved by BBB certification.
Learn more about us from the following links:
19th Reklama Pholygraf Trade Fair 2012
ISA International Sign Expo 2012
Exhibition of International Trade Fair for Visual Communication, Technology and Design in Düsseldorf, 2011
More >>
Buyers say:
John Hanmer from USA
Jackson, Andy and David from UK
Ben Wong from Thailand
Adam Fernanders from South Africa
JLuciano from Brazil
Adam Fernanders from Australia
More >>
- 2. How to calculate shipping cost.
-
Please click here to get the shipping cost, you can choose to ship by express or by sea, Shipping cost is an estimation, if has surplus, we will send back to you or offset in your next order, if not enough, we will ask you to add. For exactly shipping cost, please send to this email: inquiry@sign-in-global.com.
- 3. How to pay? Can I use credit card?
-
You may use the following methods of payment: PayPal online payment, PayPal direct payment, credit card (through PayPal gateway, some areas may be restricted), bank transfer, Bank Transfer (T/T) payment, Western Union Payment.
For details, please refer to the following:
a) Bank Transfer (T/T) payment
(1) Place an order
(2) Get the bank account information of Sign-in-Global.com
(3) Make the payment at the bank, and get the Payment Receipt
(4) Send the Payment Receipt to service@sign-in-global.com
(5) Receive the Tracking Number of your order
(6) Wait for your order.
- Bank transfer payment information:
- BANK NAME: HSBC
- BANK ADDRESS: 1 QUEEN’S ROAD CENTRAL,HONG KONG.
- BANK SWIFT CODE: HSBCHKHHHKH
- BENEFICIARY NAME: CHINASIGNS INFORMATION (HONGKONG) CO.,LTD
- ACCOUNT NUMBER: 801165036838
b) PayPal online payment
https://www.paypal.com/webapps/mpp/buying-online
c) PayPal direct payment (our PayPal account: lyh@chinasigns.cn)
https://www.paypal.com/webapps/mpp/make-online-payments
d) Credit card payment (through PayPal gateway, some areas may be restricted)
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94038&topicID=11500008&m=TTQ
e) Bank transfer (through PayPal gateway)
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94040&topicID=11500008&m=TTQ
f) Western Union Payment
Receiver’s First name: Zifei
Receiver’s Last name: Li
Address: 4th Floor., Building No.8, Community No.12. Advanced Business Park, No.188 Western Road of the 4th Ring, Fengtai, Beijing.
- 4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
-
PayPal, one of the faster and safer ways to pay and get paid online, has worldwide 113 million active accounts, and supports 190 markets and 25 currencies. As a result, PayPal enables global commerce. For details:
https://www.paypal.com/webapps/mpp/paypal-safety-and-security
- 5. Why did my PayPal payment fail?
-
The main reasons of failures and solutions:
a) Confirm if your credit card requires verification:
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=10568&m=SRE
b) Confirm if you have exceeded the limitation of maximum amount
https://www.paypal.com/us/webapps/helpcenter/article/?solutionId=11516&m=SRE
c) Confirm if you have any other restrictions
https://www.paypal.com/us/webapps/helpcenter/article/?articleID=94053&m=SRE
If you failed to make payment via PayPal, please choose Bank Transfer(T/T) or Western Union Payment.
- 6. How can I know if it is paid successfully?
- We will send you a payment confirmation email upon receiving your payment. If you use check or Bank Transfer (T/T) payment, we will change the status of your order until your payment confirmed , and then we will send you the conformation email.
- 7. Ship from where?
- We have 4 overseas warehouses all over the world including: Russia, USA, Brazil and Mexico. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china.
- 8. How long can I receive the items?
- Normally speaking, we will spend 1 or 2 days to prepare the order and if it requires longer time, we will inform you as soon as possible. The shipping time by express is about 3-6 business days, and if you choose to ship by sea, generally the shipping time is Between 10 and 30 days, depending on the consignee address.
- 10. How to receive my order? Is it safe during shipping?
-
We will ship your order by Express or by sea and usually the carriers are FedEx, TNT, UPS, DHL, or EMS. It shall be quite safe during shipping with substantial package.
It shall be quite safe during shipping with substantial package. Additionally, we will purchase insurance as a gift for your package.
- 11. How to obtain the tracking number of shipment? And how to contact the carrier (express delivery company)?
- We will send you the tracking number after shipping your items, hereby please keep on checking your email.
- 12. How to return items and how about the warranty?
-
For details, please click the following links:
Changes & Returns: https://www.sign-in-global.com/info/ChangesandReturns.html
Warranty: https://www.sign-in-global.com/info/QualityWarranty.html
- 13. If I still have questions to this product, what shall I do?
-
Please click
Inquire Now
on the product page and submit your questions, we will reply you as soon as possible.
200pcs/pack SMD 2835 Waterproof LED Module (3 LED Chips with Aluminum PCB Injection, White Light, 1W, L71.5 x W13.5 x H6.7mm), DC12V for Channel Letter
| Specification |
| Model No. |
LEDM-JS-ST2W-3-200-US |
| Color Temperature |
Natural White: 6000-7000K
|
| Beam Angle |
160° |
| Luminous Flux |
90 lm / pc |
| Ra |
80+ |
| Efficacy |
95 lm / w |
| Voltage |
12 V D |
| Power |
1.0W / Pc |
| Standard Packing Quantity |
20 pcs |
| Max Run in Single Feed |
20 pcs |
| Working Temperature |
-20~+60℃ (68℉ - 140℉) |
| Storage Temperature |
-20~+70℃ (68℉ - 158℉) |
| Installation Reference |
| Bottom Color of Lightbox |
Surface Material |
Depth
|
Illumination (lux) |
Density pcs / sqm |
Spacing (X x Y) cm |
Visual Effects |
| White |
White
Soft Film
|
6cm(2.36in) |
7980-8950 |
10 x 12 |
10 x 8 |
OK |
| 8cm(3.15in) |
6340-6700 |
10 x 10 |
10 x 10 |
| 10cm(3.94in) |
3430-3700 |
7 x 7 |
14 x 14 |
| 12cm(4.72in) |
2290-2570 |
6 x 6 |
16 x 16 |
| 15cm(5.9in) |
1820-2080 |
5 x 5 |
18 x 18 |
| 18cm(7.09in) |
1750-1930 |
5 x 5 |
18 x 18 |
Light Box Specification
seller assumes all responsibility for this listing
Ship from where?
 |
We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china. |
Return policy
 |
Purchases can be returned under the following conditions:
1) There are quality problems after opening the package.
2) Products are different than on the order list.
3) Products are irreparably damaged during transportation.
|
Payment details
| Payment method |
 |
1.Paypal (online payment)
2.Creidit card
3.Bank Transfer (T/T)
4.Western Union online/offline payment
|
Ship out within 24 hours(Working time: Monday to Friday).
Add to Cart
Price : $14.51 - 16.12/pack
Order Now
Cart 0 item(s)
Back to Top
Average Rating: 0
.jpg)
Order Tracking
