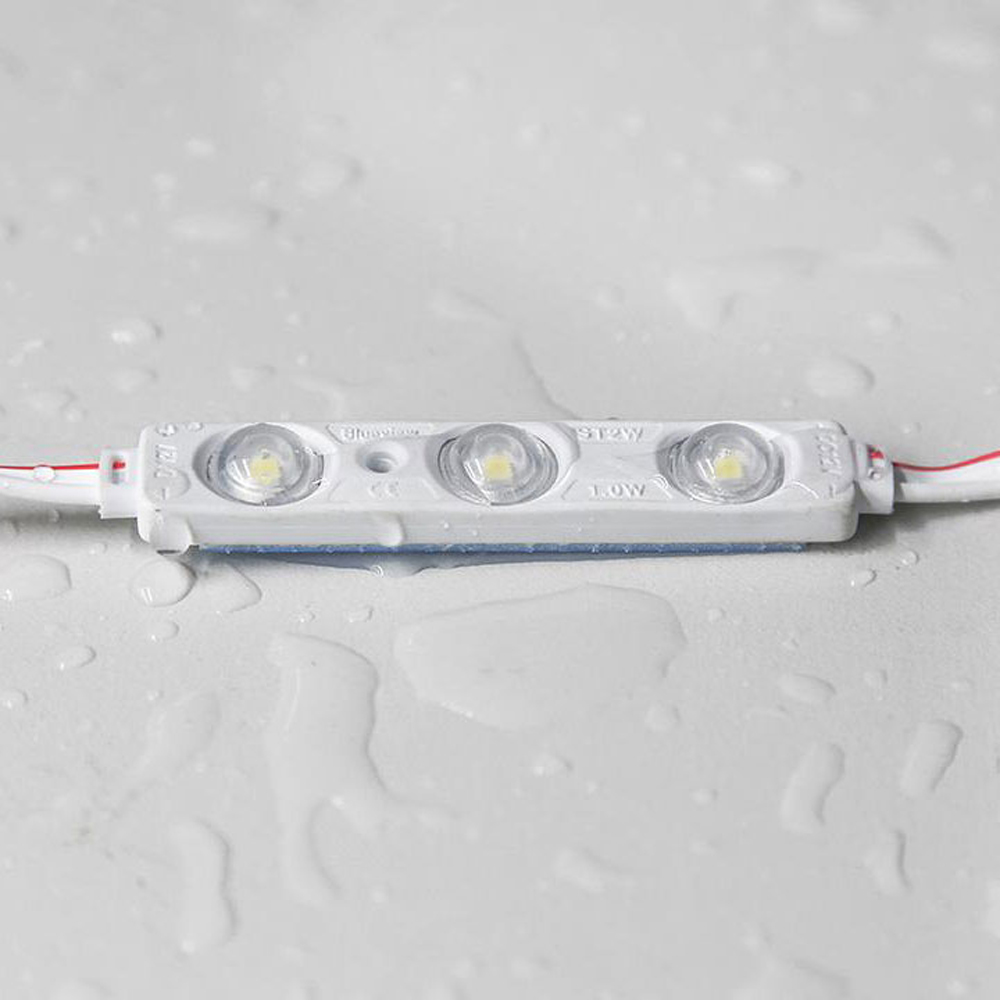

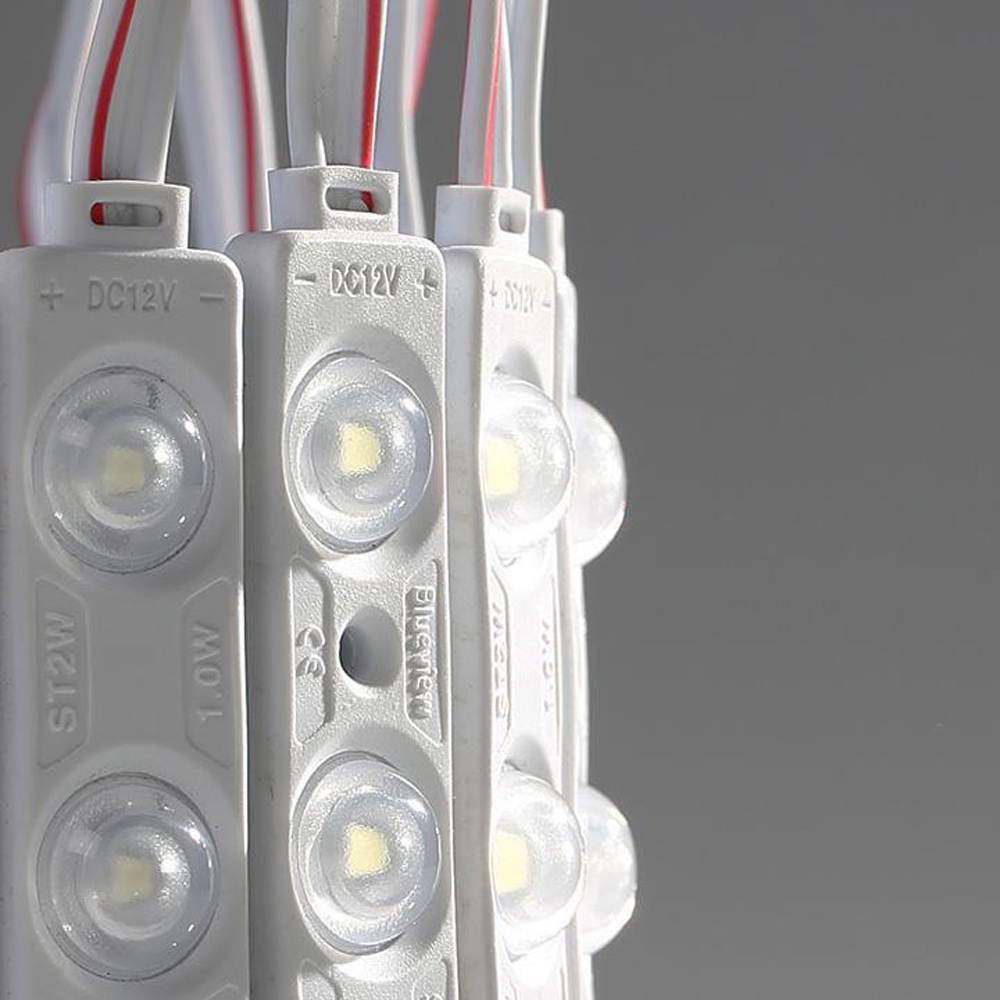

SMD 2835 Waterproof LED Module (3 LED Chips with Aluminum PCB Injection, White Light, 1W, L71.5 x W13.5 x H6.7mm), DC12V for Channel Letter
Features:

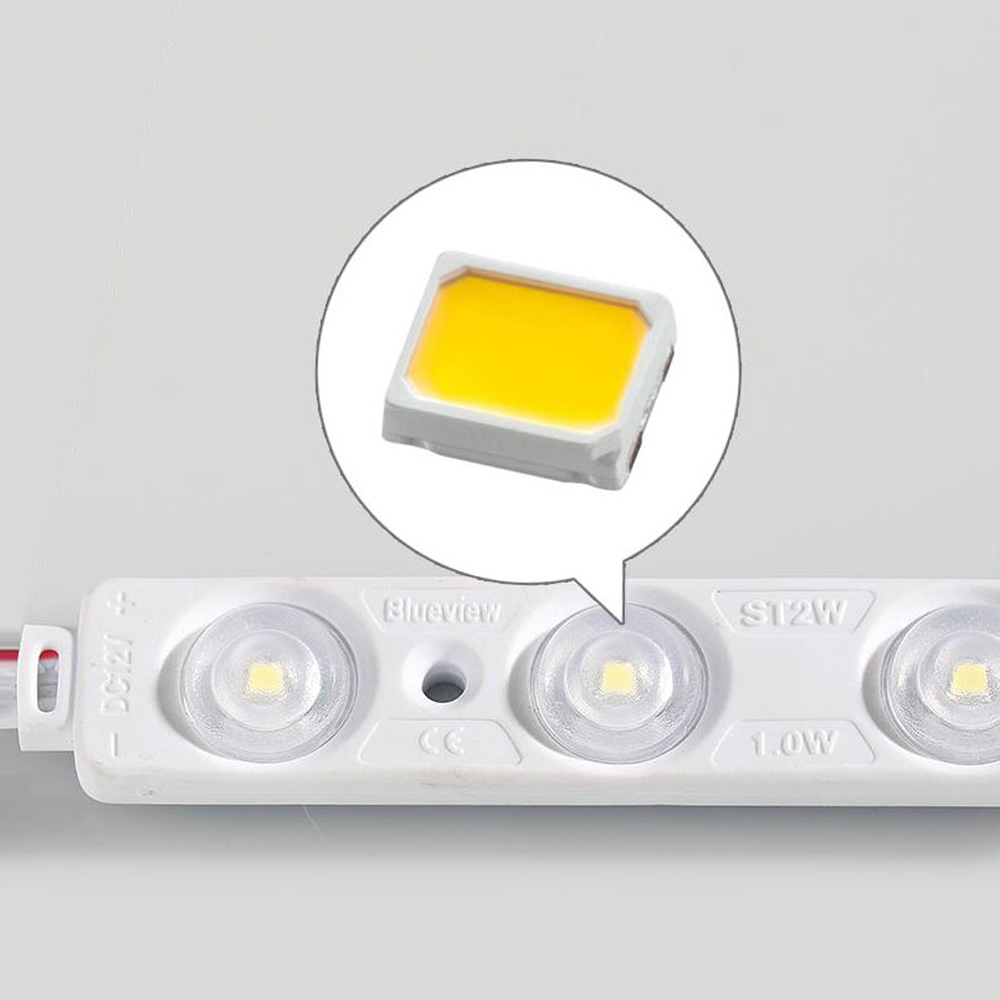

1. High quality 2835 LEDs

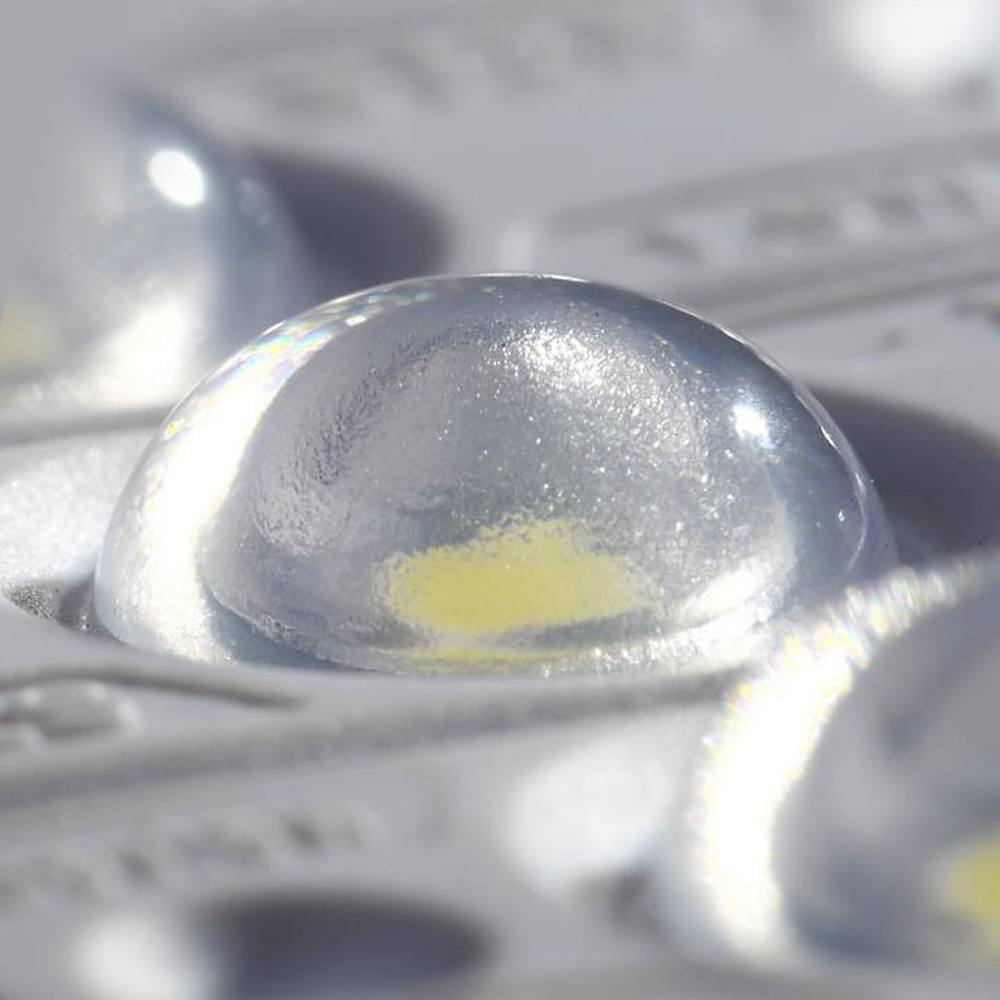

2. Aluminum PCB injection for better outline

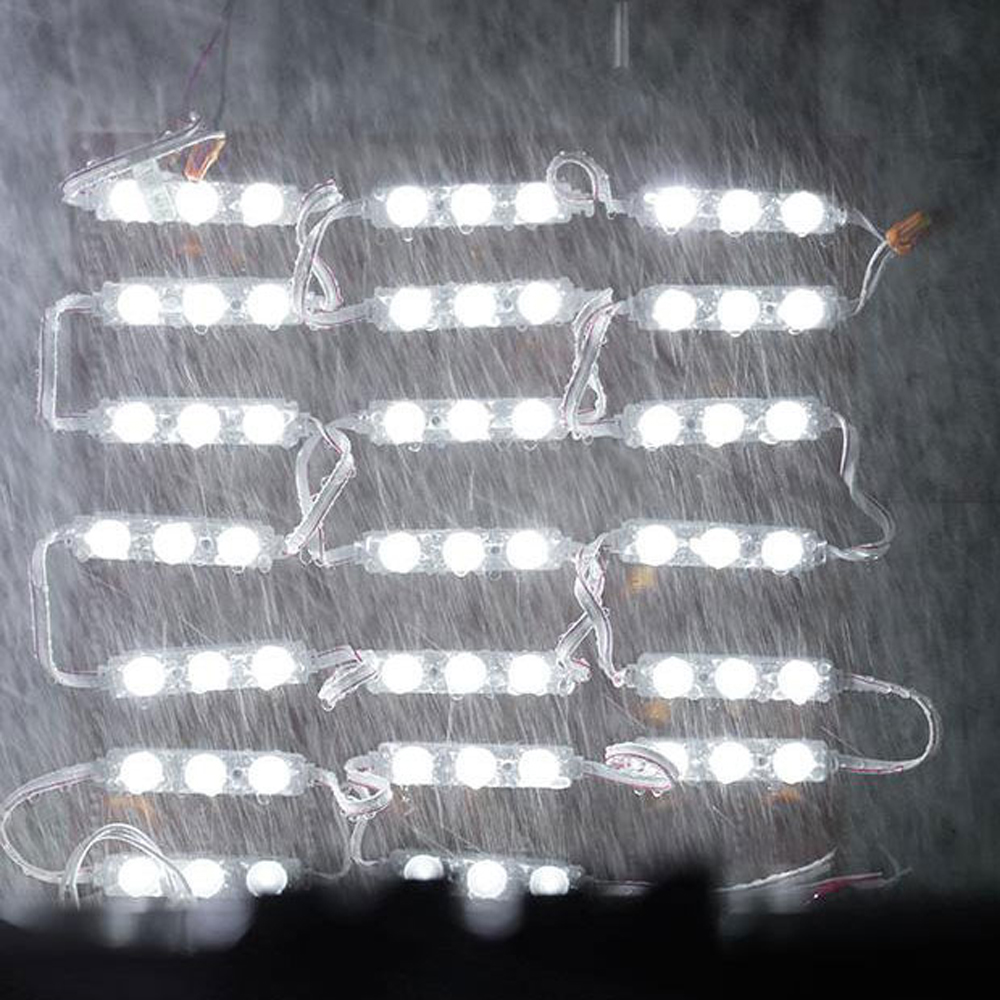

3. IP65 perfect for indoor and outdoor
4. Input voltage: DC12V
5. Single module cuttable
6. 160° wide beam angle for uniform lighting
Application:
Back-lit lightbox with thickness of 6-18cm (0.236in - 70.86in), luminous letter, LOGO etc.
Typical Clients Case:
Nike House of Innovation
A landmark in leipzig, Germany
Details:
Installation:
Fix by self adhesive tape or screw.

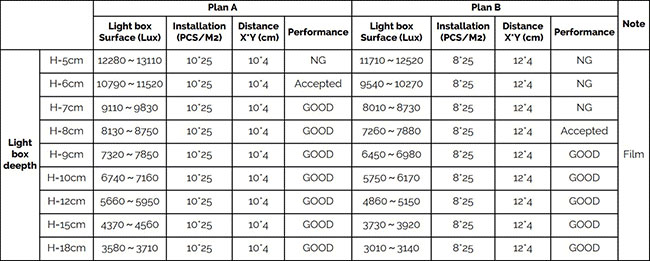

Installation Reference |
Bottom Color of Lightbox |
Surface Material |
Depth
|
Illumination (lux) |
Density pcs / sqm |
Spacing (X x Y) cm |
Visual Effects |
White |
White
Soft Film
|
6cm(2.36in) |
7980-8950 |
10 x 12 |
10 x 8 |
OK |
8cm(3.15in) |
6340-6700 |
10 x 10 |
10 x 10 |
10cm(3.94in) |
3430-3700 |
7 x 7 |
14 x 14 |
12cm(4.72in) |
2290-2570 |
6 x 6 |
16 x 16 |
15cm(5.9in) |
1820-2080 |
5 x 5 |
18 x 18 |
18cm(7.09in) |
1750-1930 |
5 x 5 |
18 x 18 |
Attentions before installation:
• Before installation, check that the product parameters are consistent with the requirements (Seeing product specificationsor product labels)
• Load voltage, current, power and power supply should be matched with the product.
• Follow the instructions of wiring diagram (first connect the load and then the power supply) to avoid short circuit.
• Make sure the correct connection of positive and negative poles between products and power supply. Otherwise, the light will not be on.
• Make sure the power cord firmly screwed into the terminal and it should not be pulled out by hands.
• The terminal should have insulation,waterproof and anti-corrosive treatment.
Statements and Recycling:
Statements:
Repair should be operated by a qualified technician, if the external circuit or main line of this product is damaged. The parameters given in this manual are typical values and for reference only.
All illustrations and drawings in this manual are for reference.
This product is subject to change without notice.
Recycling:
LED lighting products belongs to electronic products, please do recycling treatment according to the relevant WEEE directives.
Profile Drawings:
Luminous Intensity Distribution Diagram:
Average Illumination:
Certificates
Packing:
Examples:

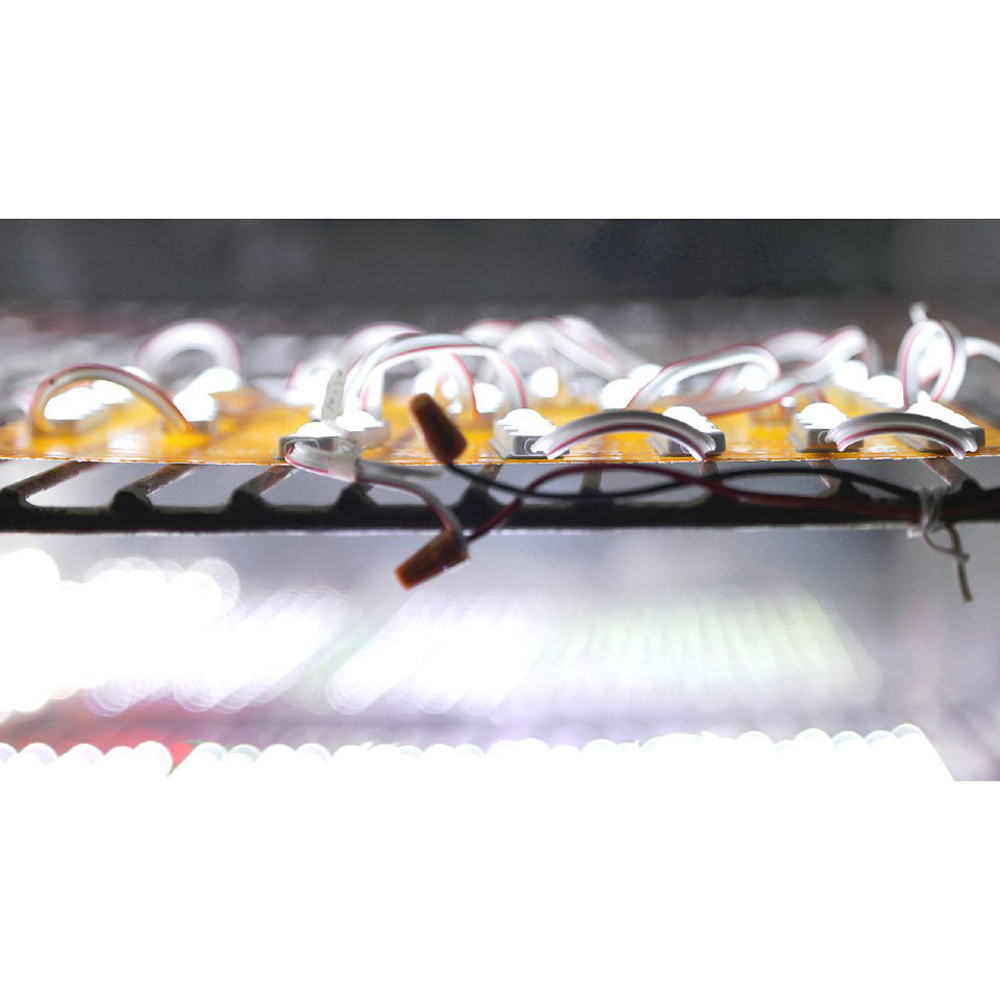

Light Box
Channel Letter
Process:
Application:
200pcs/pack SMD 2835 Waterproof LED Module (3 LED Chips with Aluminum PCB Injection, White Light, 1W, L71.5 x W13.5 x H6.7mm), DC12V for Channel Letter
Specification |
Model No. |
LEDM-JS-ST2W-3-200-US |
Color Temperature |
Natural White: 6000-7000K
|
Beam Angle |
160° |
Luminous Flux |
90 lm / pc |
Ra |
80+ |
Efficacy |
95 lm / w |
Voltage |
12 V D |
Power |
1.0W / Pc |
Standard Packing Quantity |
20 pcs |
Max Run in Single Feed |
20 pcs |
Working Temperature |
-20~+60℃ (68℉ - 140℉) |
Storage Temperature |
-20~+70℃ (68℉ - 158℉) |

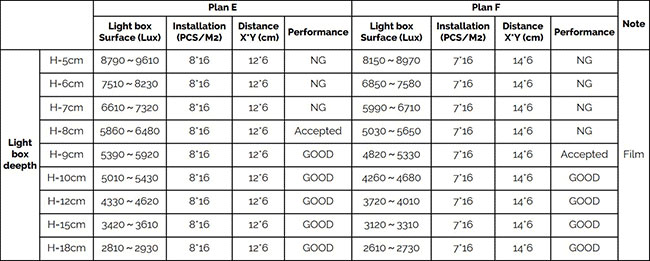

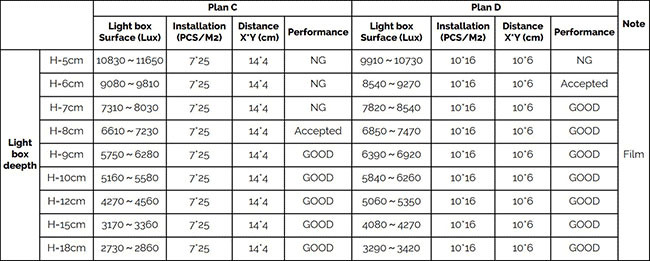

Installation Reference |
Bottom Color of Lightbox |
Surface Material |
Depth
|
Illumination (lux) |
Density pcs / sqm |
Spacing (X x Y) cm |
Visual Effects |
White |
White
Soft Film
|
6cm(2.36in) |
7980-8950 |
10 x 12 |
10 x 8 |
OK |
8cm(3.15in) |
6340-6700 |
10 x 10 |
10 x 10 |
10cm(3.94in) |
3430-3700 |
7 x 7 |
14 x 14 |
12cm(4.72in) |
2290-2570 |
6 x 6 |
16 x 16 |
15cm(5.9in) |
1820-2080 |
5 x 5 |
18 x 18 |
18cm(7.09in) |
1750-1930 |
5 x 5 |
18 x 18 |
Light Box Specification
