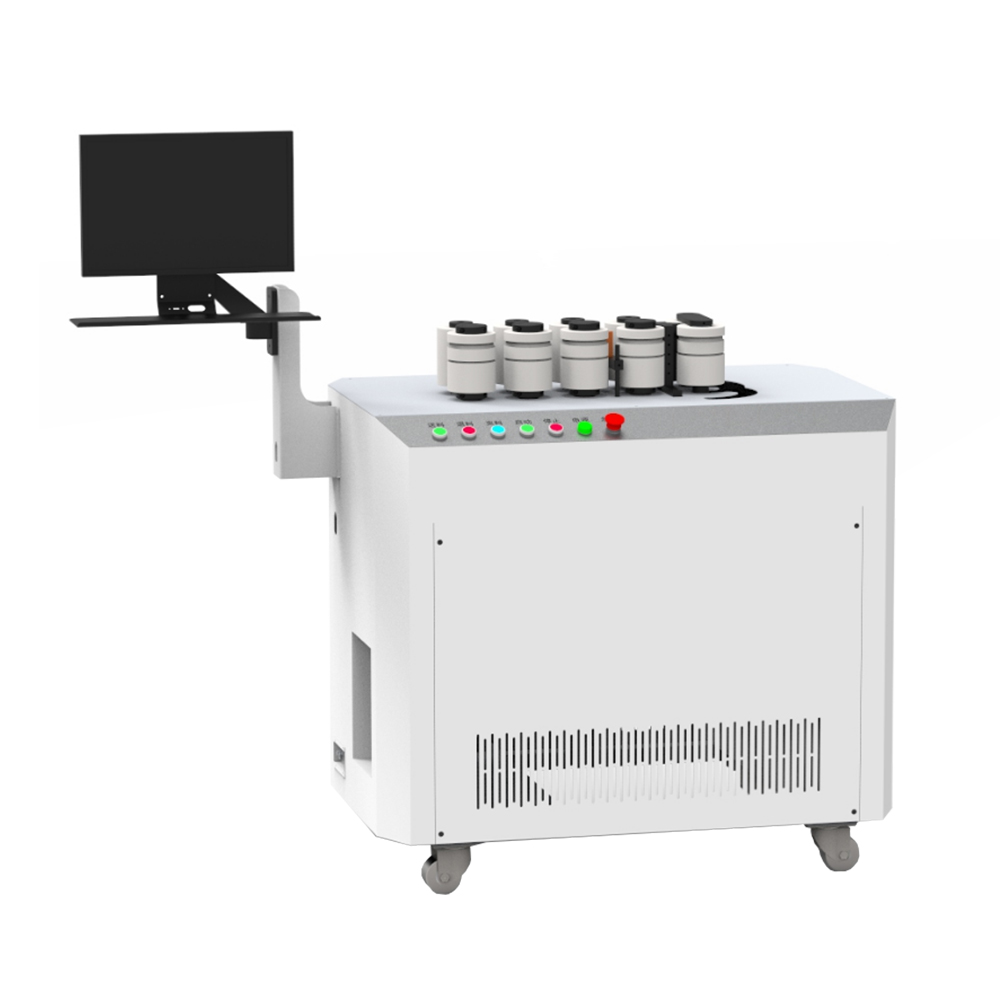

AD150 Automatic Rounding Bending Machine
Introduction:
Automatic Rounding Bending Machine is used to bend aluminum alloy sections ，machine is controlled by computer，humanized software has more practical function for customer. Machine software is easy to learn and operate，it is used to process Frame、mirror frame、Decorative picture、Ceiling、lamps and lanterns、Advertising、Furniture and metal forming industry.
Tips: PC not included
Specification:
| Model | AD150 |
| Feed Speed | 150mm/s |
| Feed Accuracy | ±0.2mm |
| Bend Axis Torque | 400N·M |
| Die Axis Length | 4.72" (120mm) |
| Min Bend radius | 1.97" (50mm) |
| Control System | Autodrive Automatic Bending System |
| Machine Size | 43.3" * 27.5" 45.3" (1100mm * 700mm * 1150mm) |
| Package Size | 49.2" * 33" 50" (1250mm * 840mm * 1270mm) |
| Machine Watt | 2.3KW |
| Voltage | Single Phase 220VAC |
| Gross Weight | 880lb |
| Shape | Circle、ellipse、runway circle、polygon and irregular figure |
| Material | Aluminum profile、Stainless steel |
| Industry Application | Frame、mirror frame、Decorative picture、Ceiling、lamps and lanterns、Advertising、Furniture and metal forming industry |
Details:
 |

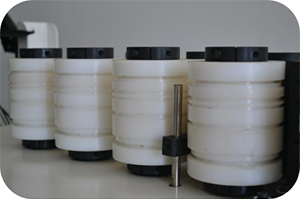

Feed Structure Feeding axis is made of four sets nylon. Gear drivers Rolling continuous feeding structure，fast speed，for example, if we process a 300mm circle, it just spend 9.84 second. |

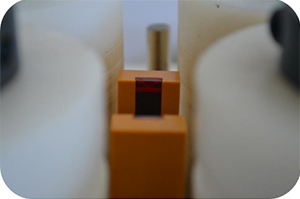

| Material Home Functional Special design for material detector switch, when material is not enough longer, software will remind you to add new material. |
 |
 |

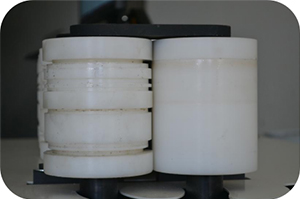

Bend Structure Servo motor provide enough power to bend material, when machine is working,servo motor will turn to suitable angle, then machine will start to bend the curve of shape. |

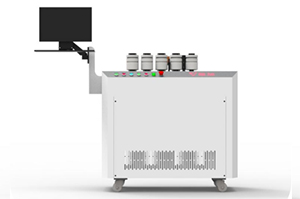

| Machine Frame Machine frame is made up of sheet metal parts (1.2mm),machine keel is welded by square tube ( 2.0mm ) with pulley,so we can move machine easily. About mechanical part, it is made up of 20mm thick carbon steel by CNC, Thus, the accuracy and rigidity of transmission and functional components are ensured, so that the equipment has good stability and service life. |
 |
 |

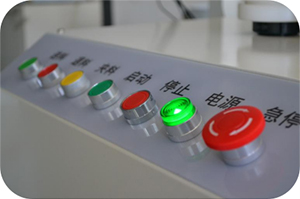

One-button start function Update the operational procedure, Touch - tone control pattern, when we need to change the dies of aluminum profile, we can save time, more safety, more convenient. |

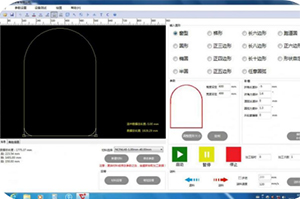

| Software More humanize control software, more easy to operate, one machine will help you to build assembly line，more higher productivity, easy to change the data when you use different material, no need to test again. |
 |

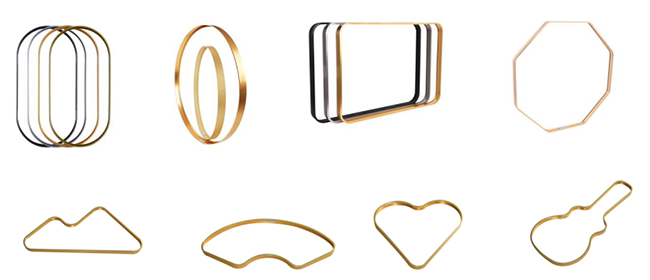

Semi-finished Product:

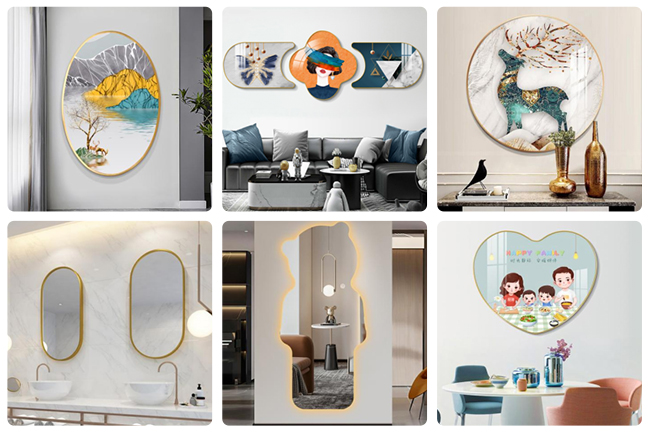

Sample Show:
