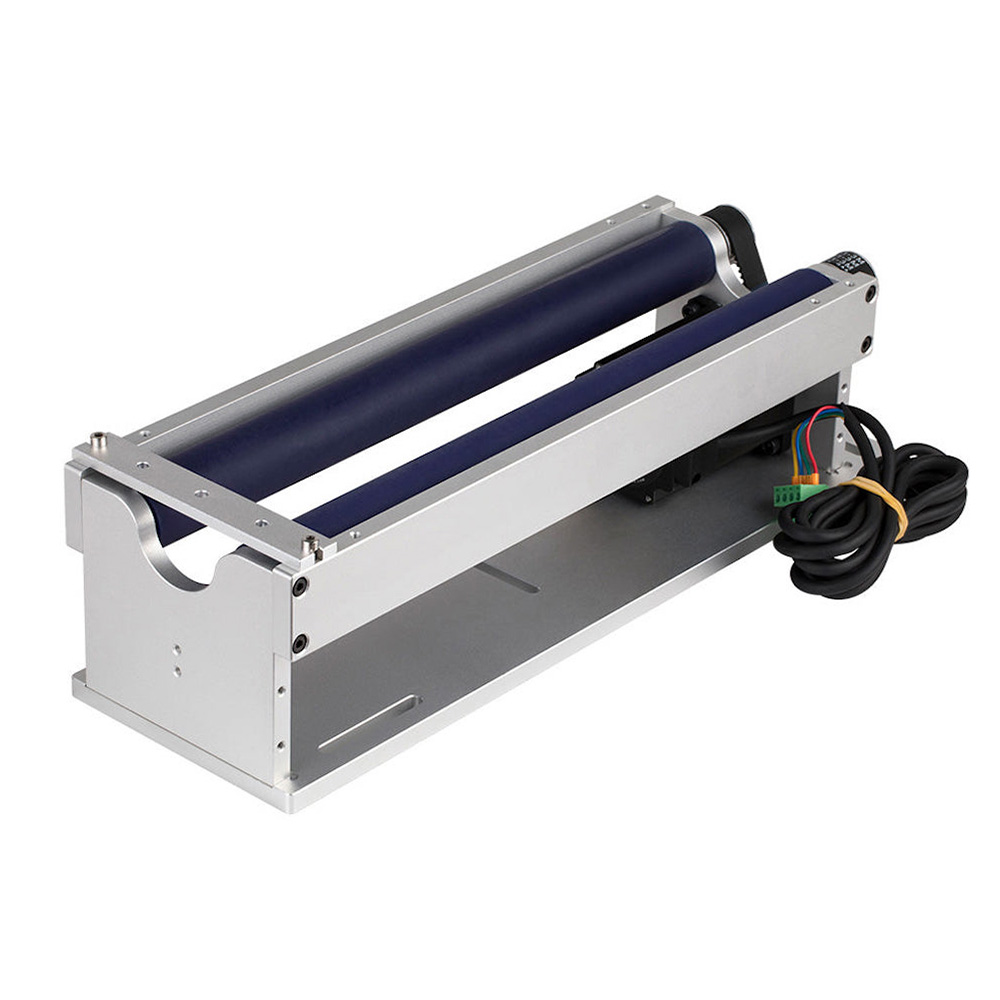

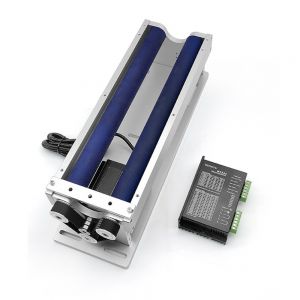

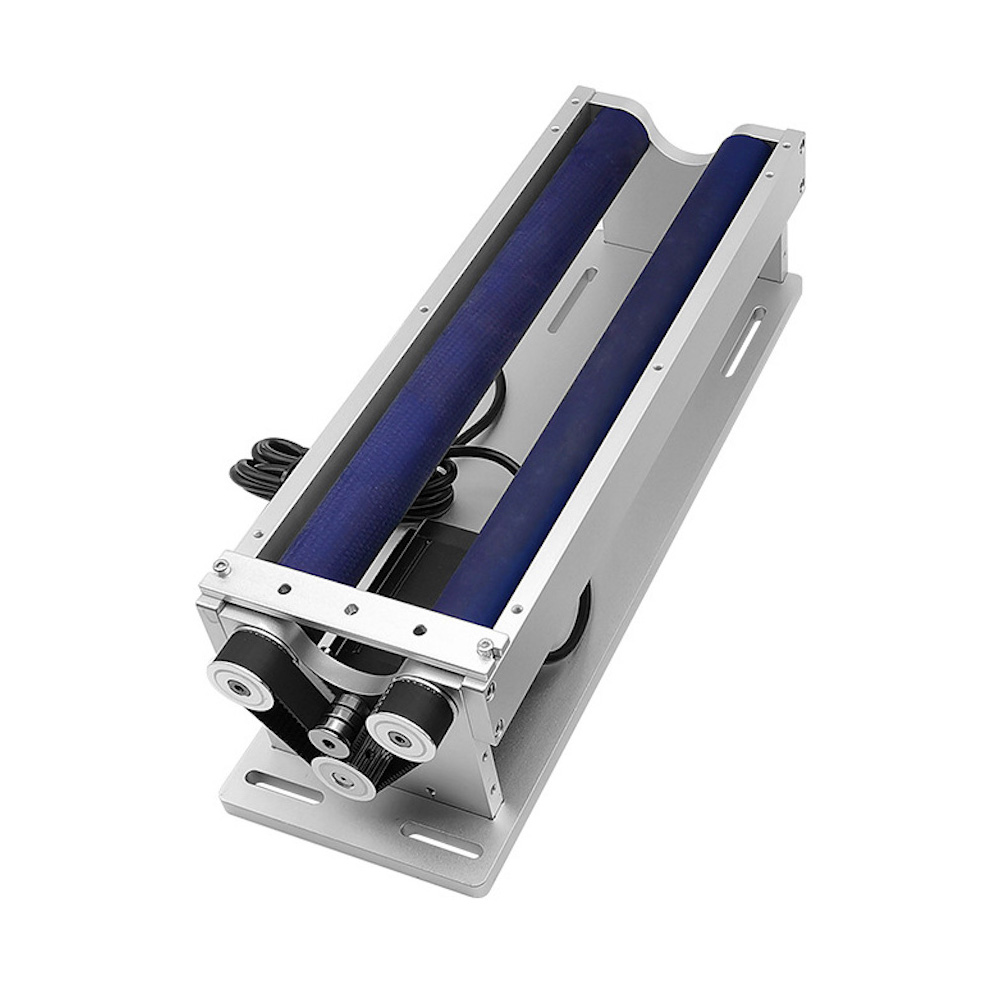

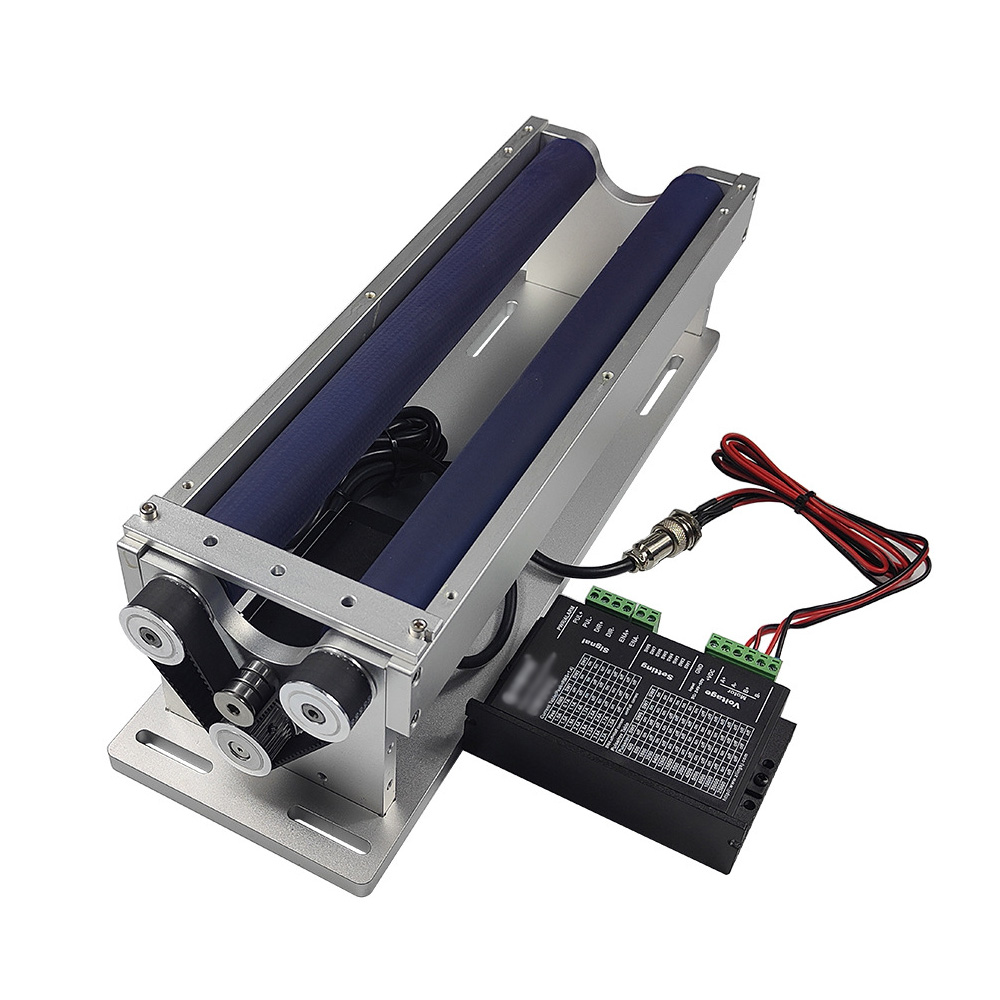

Rubber Roller Rotary Fixture Rotary Attachment Set for Ring Cup Cylinder Laser Marking(40mm)
Specification:
Model: CS-GZ-400
Brand: CALCA
Motor: 60 x 88, wire length 2m

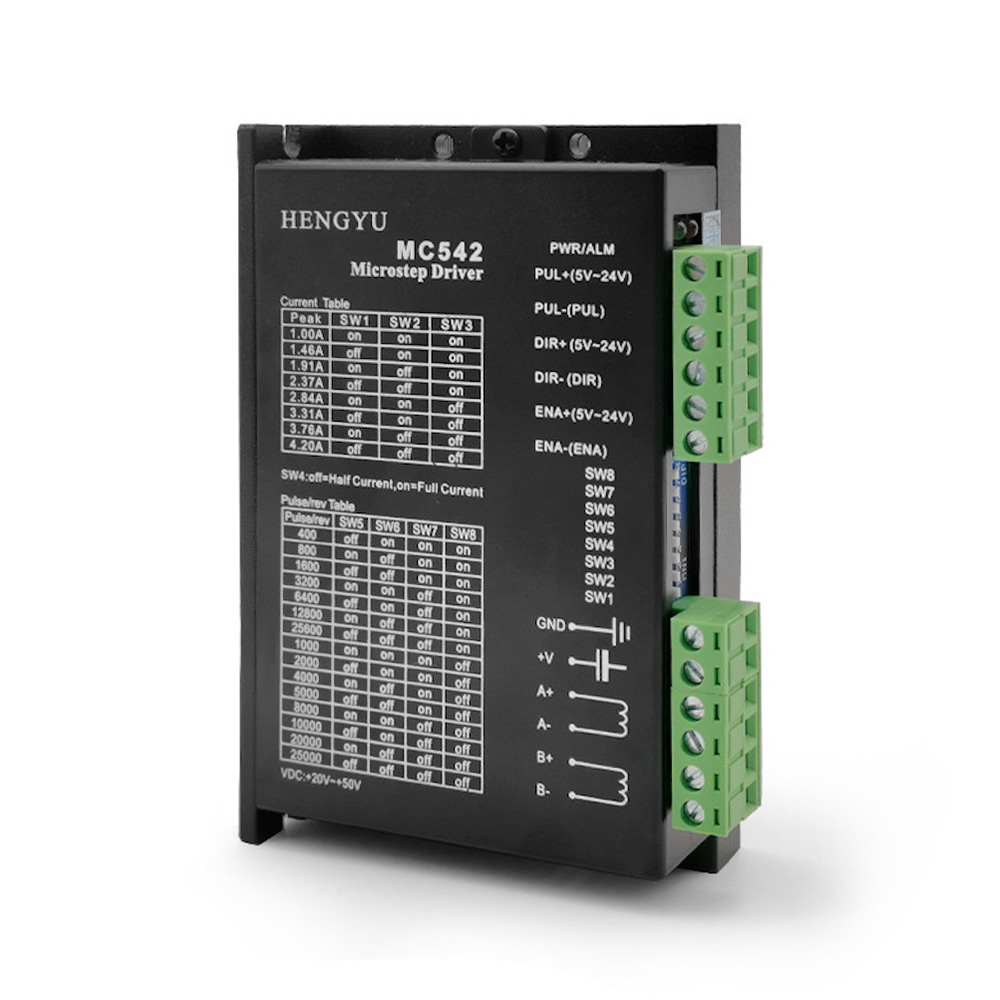

Driver: MC542
Power: 24V
Shaft Length: 350mm(13.8")
Wheelbase: 40mm(1.6")
Dimensions: 400 x 125 x 110mm(15.7" x 4.9" x 4.3")
Clamping: 50-400mm(2" x 15.7")
Bearing: Below 30 kg(66.1lb)
Package Size: 65cm x 27cm x 20cm (25.6" x 10.6" x 7.9")
Gross Weight: 6kg (13.2lbs)
Description:
1. High-precision rotating module, metal material, wear-resistant and durable.
2. The roller is covered with rubber, which increases the friction force and makes the clamping more stable.
3. Special for cylindrical marking, suitable for laser engraving machine, optical fiber marking machine, etc.
4. Calculate reduction ratio: product circumference (MM) divided by 100≈ reduction ratio
5. Adjust the reduction ratio: (play single line → turn 360 degrees + play single line → reverse 360 degrees - + play single line)
6. The better the coincidence of the three lines, the more accurate the reduction ratio.
7. Normal rotary marking: after filling in the correct reduction ratio, it can work like a direct-connected rotary table.
Note: Rotary disadvantages, 360-degree full circle splicing is difficult and not suitable for tapered product marking
