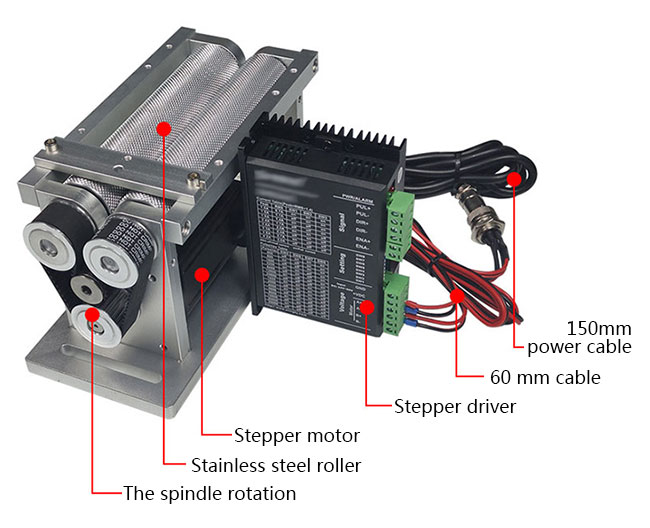

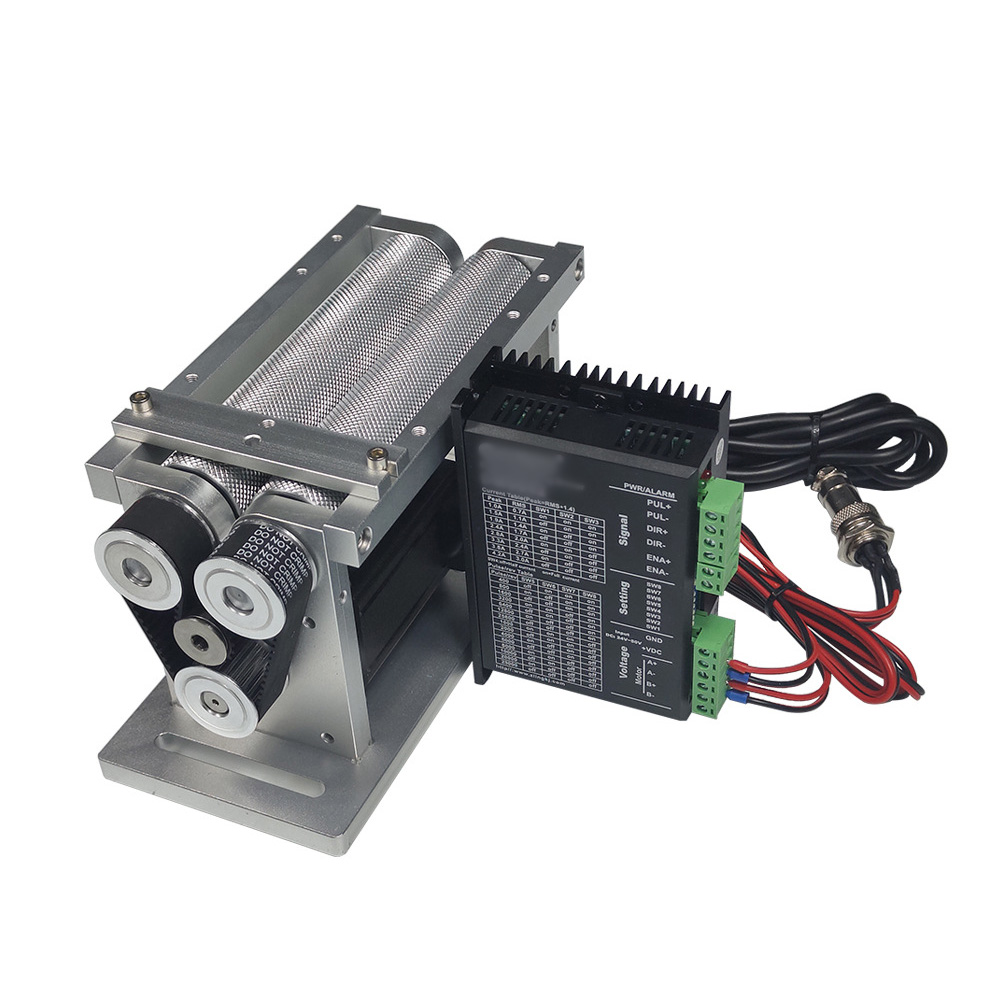

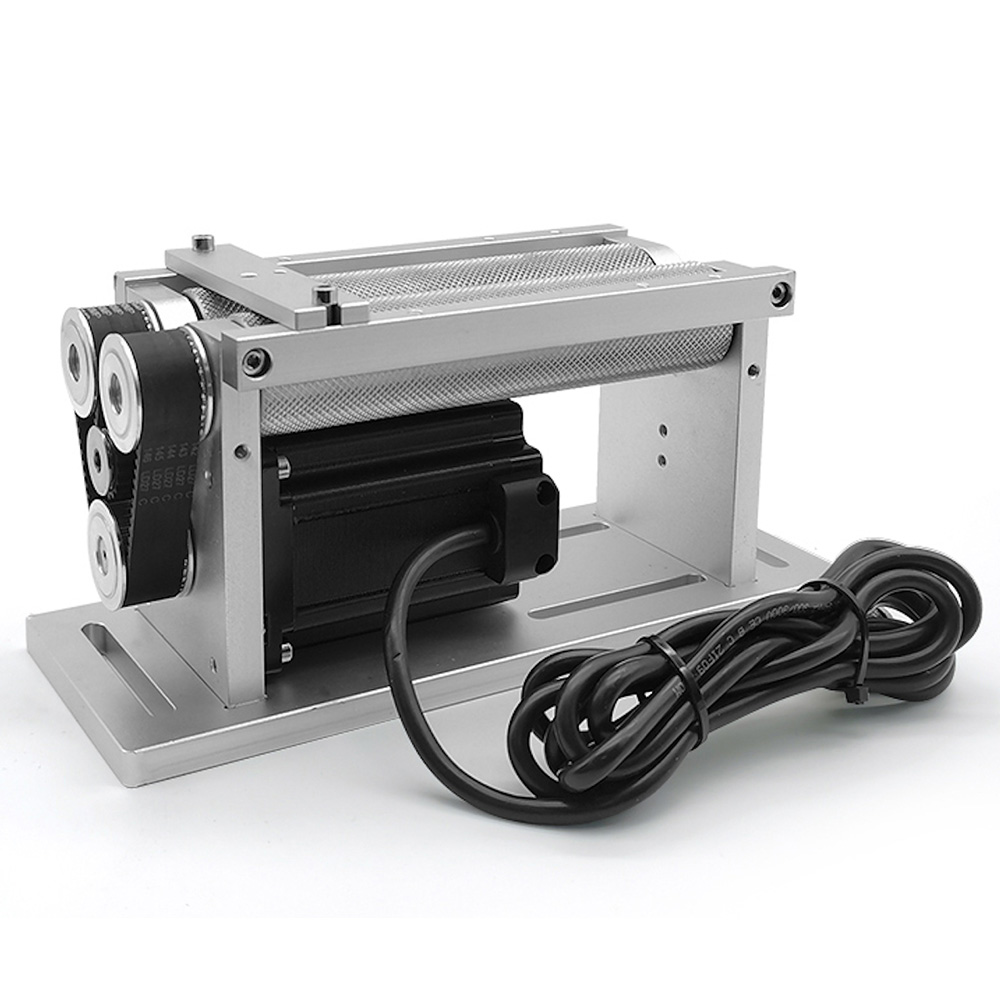

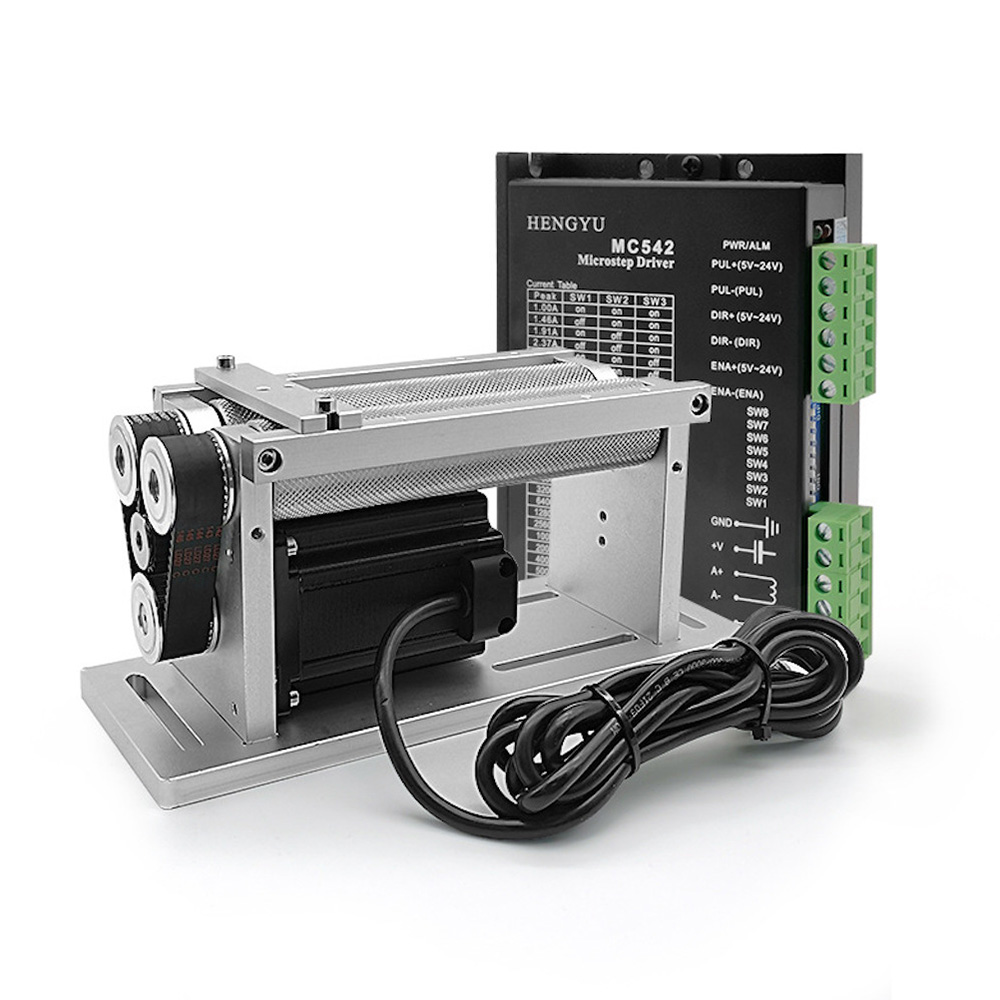

Roller Rotary Fixture Rotary Attachment Set for Ring Cup Cylinder Laser Marking
Specification:
Model: CS-GZ-230
Brand: CALCA
Motor: 60 x 88, wire length 2m

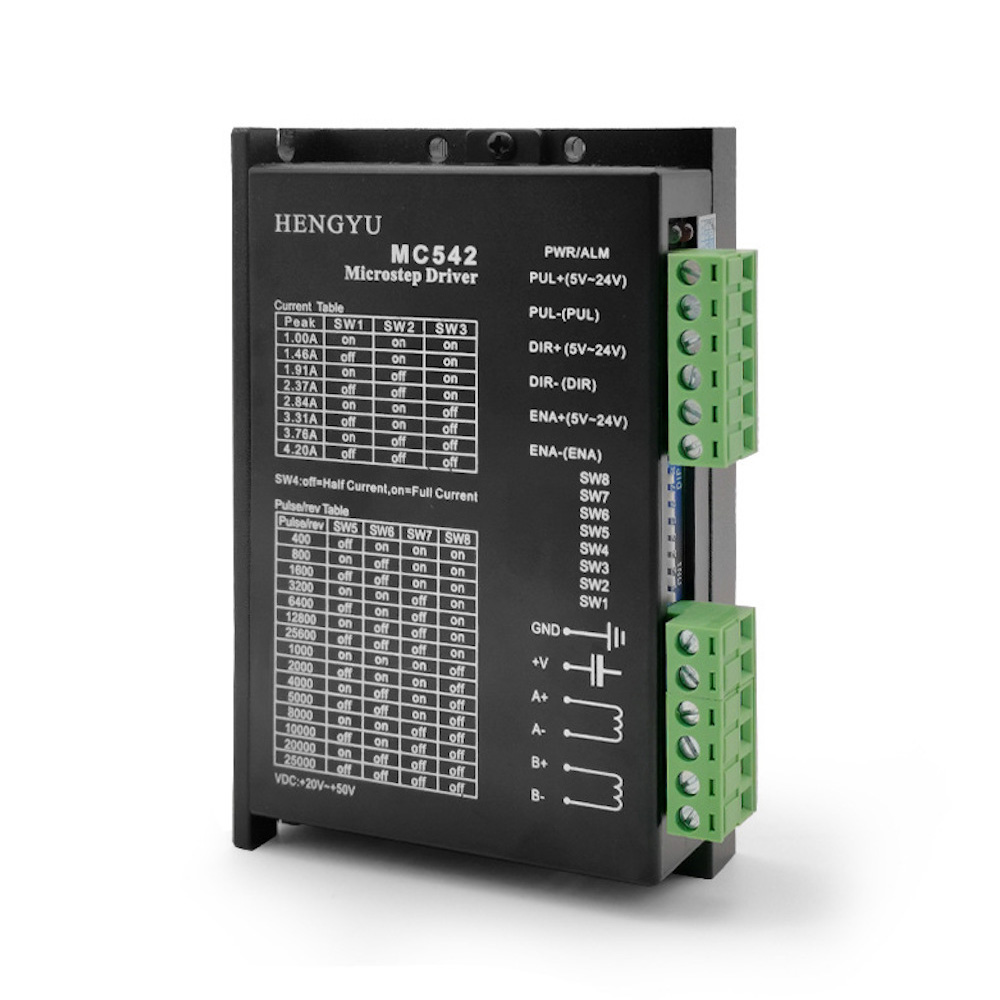

Driver: MC542A
Power: 24V
Shaft Length: 148mm(5.8")
Wheelbase: 3mm(0.12")
Dimensions: 230 x 90 x 107mm(9.1" x 3.54" x 4.2")
Clamping: 5-150mm(0.2" x 5.9")
Bearing: Below 20 kg(44.1lb)
Package Size: 65cm x 27cm x 20cm (25.6" x 10.6" x 7.9")
Gross Weight: 6kg (13.2lbs)
Description:
1. High-precision rotating module, metal material, wear-resistant and durable.
2. Quick clamping, can mark the diameter, length and weight in a wide range.
3. Special for cylindrical marking, suitable for laser engraving machine, optical fiber marking machine, etc.
4. Calculate reduction ratio: product circumference (MM) divided by 100≈ reduction ratio
5. Adjust the reduction ratio: (play single line → turn 360 degrees + play single line → reverse 360 degrees - + play single line)
6. The better the coincidence of the three lines, the more accurate the reduction ratio.
7. Normal rotary marking: after filling in the correct reduction ratio, it can work like a direct-connected rotary table.
Note: Rotary disadvantages, the product is light and easy to lose steps, the speed is too fast and it is easy to lose steps, 360-degree full circle Difficult splicing is not suitable for tapered product marking.
