Epson S3200-U3 UV Printhead
Description:
S3200-U3 Print Head provides high productivity, high image quality, and head expandability. With a maximum of 4.73-inch-wide MEMs, this head series is equipped with an ink circulation mechanism. It is suitable for Aqueous ink.
All MEMS manufacturing and thin film piezo element can realize high precision and high density (600npi/2 rows of nozzles).
Precision made of Epson unique MEMS nozzles and an ink flow path ensure the perfectly round ink droplets are placed accurately and consistently.
Specifications:
Product name: S3200-U3
Ink type: UV / Eco Solvent
Type: PrecisionCore MicroTFP printhead

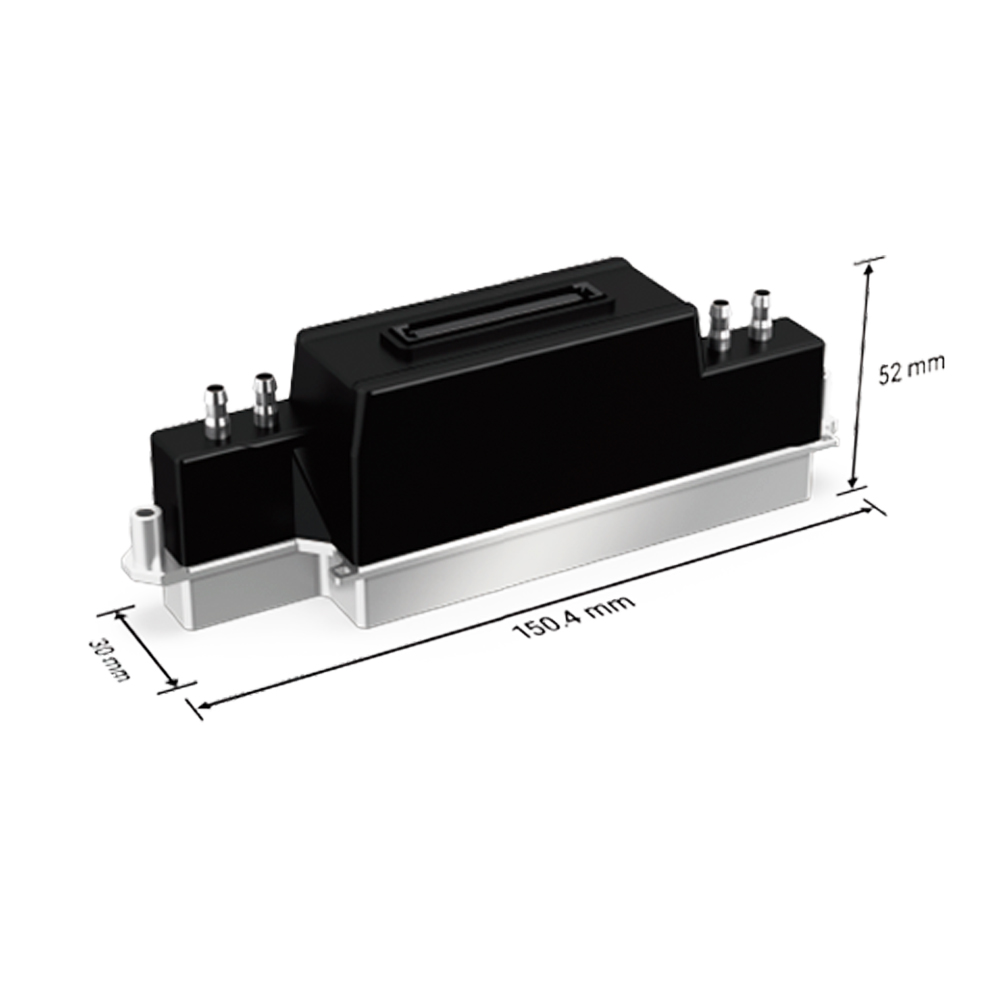

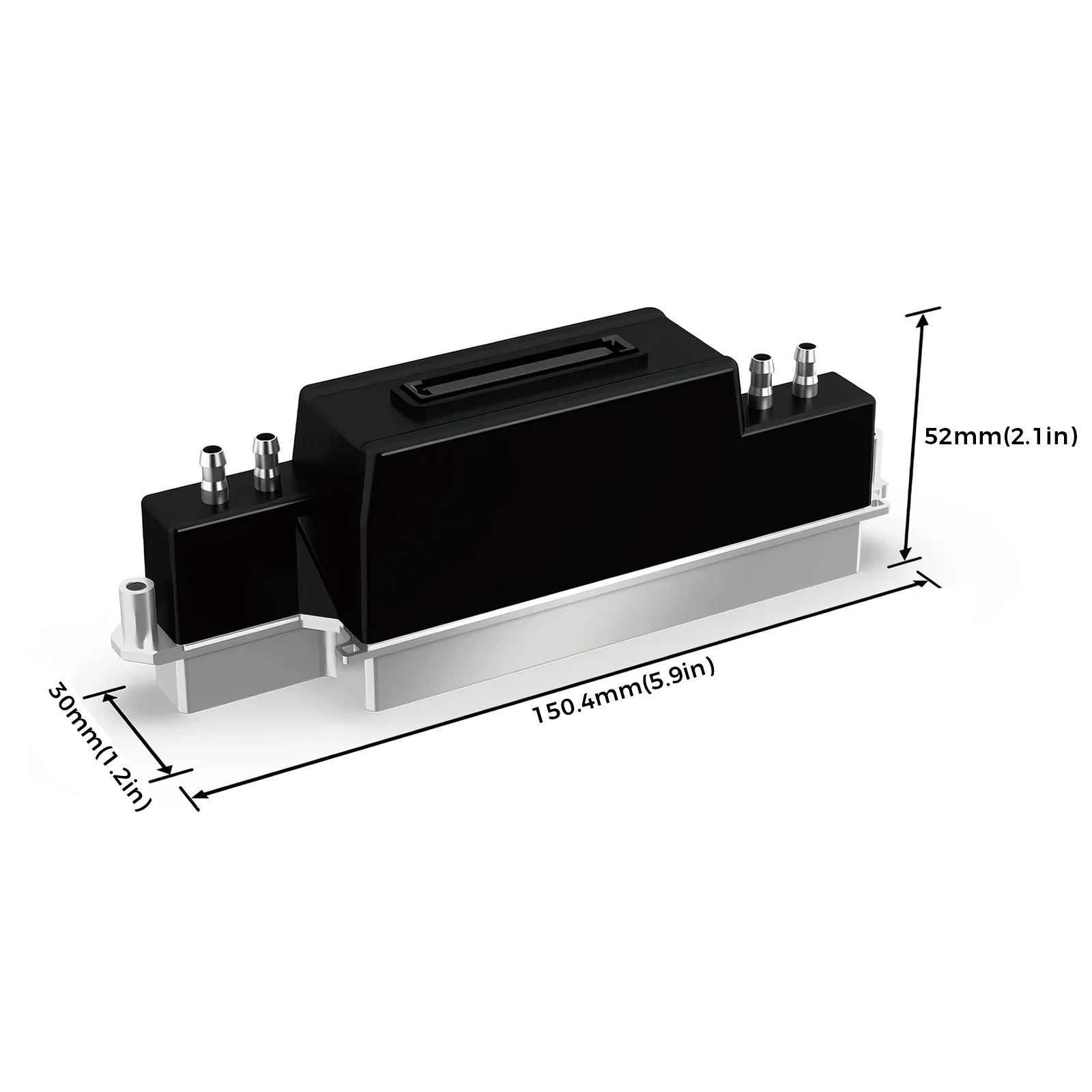

Width x Depth x Height: 150.4 x 30 x 52mm
Weight: 235g
Number of nozzle: 3200 (Net: 2840)
Nozzle pitch / nozzle row: 1/300 inch
Nozzle rows: 2 rows
Nozzle Resolution: 300 npi/row 600 npi/2 rows
Max. number of colour inks: 2 colours
Effective print width: 120.2 mm (4.73 inches)
Droplet volumes: 4.8, 9, 15 pl
Viscosity range: 8-9 mPa・s
Manufacture: Epson
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us at +86(10) 63705868 ext 607 or send email to info@sign-in-global.com
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
