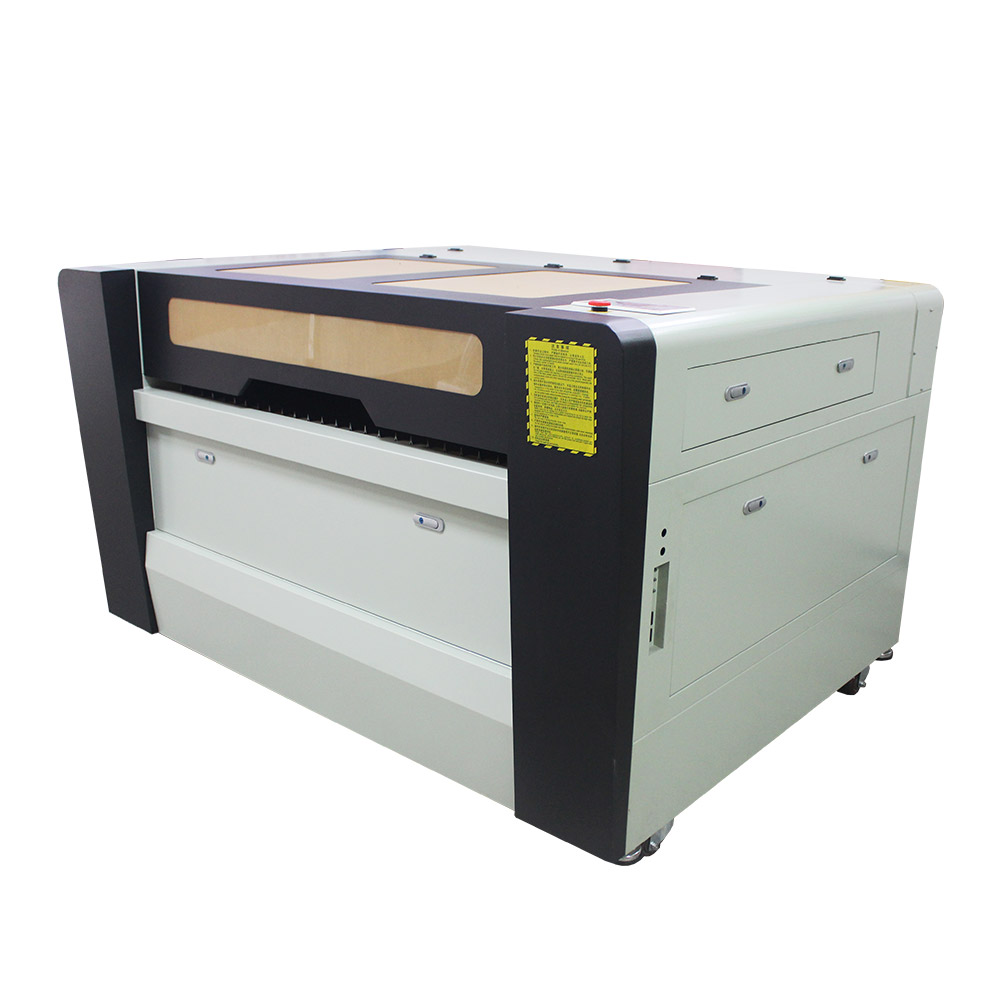

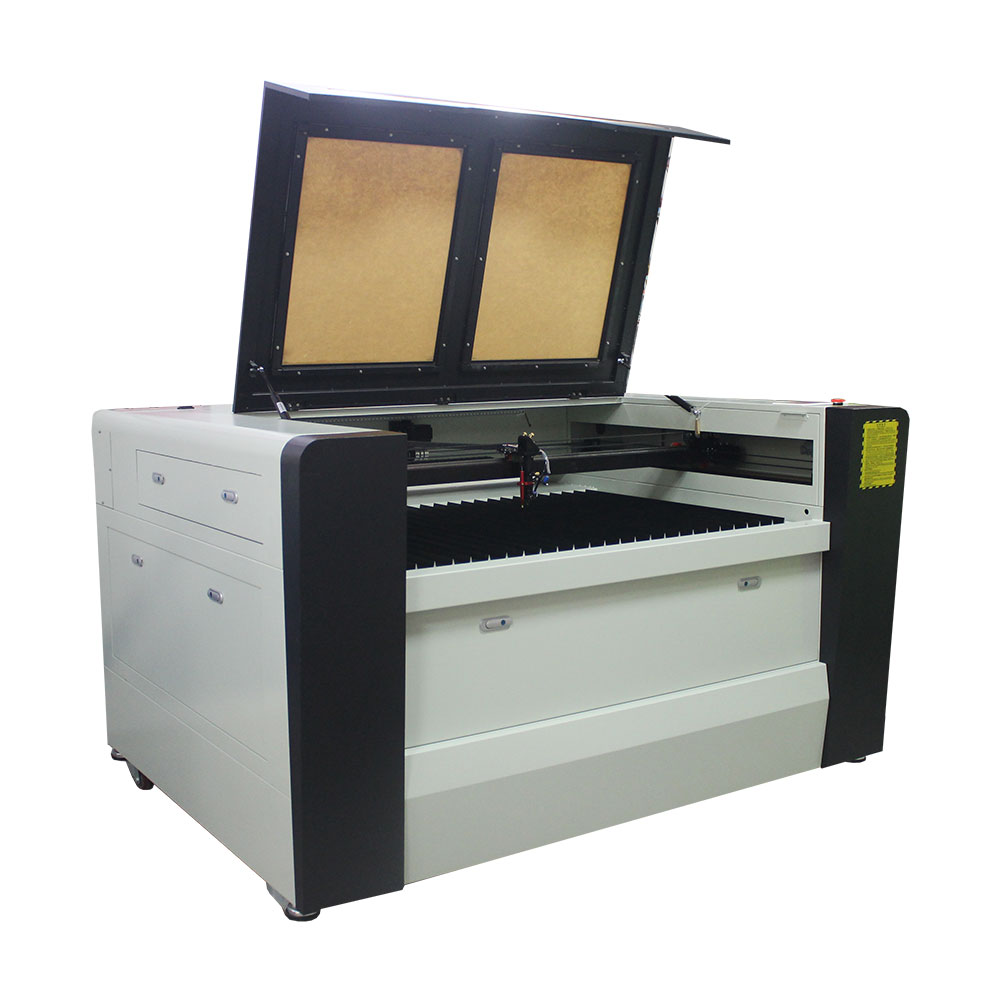

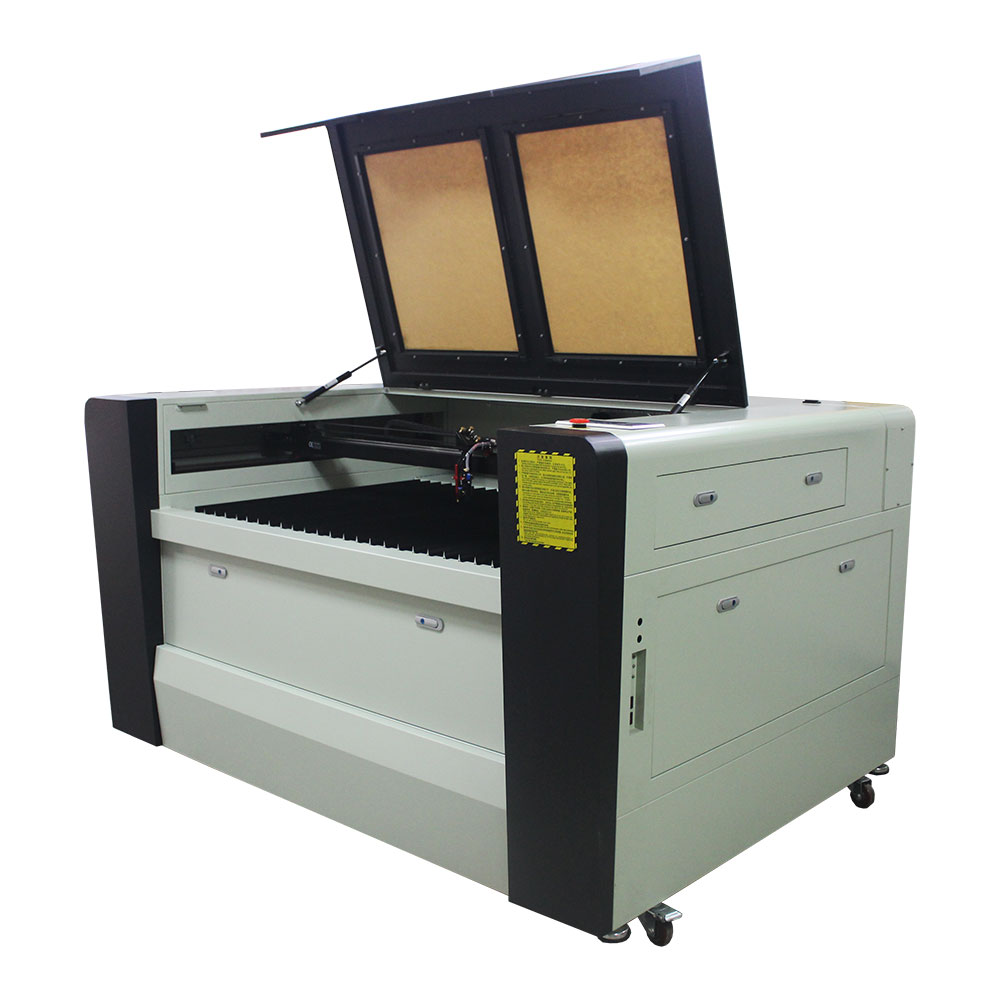

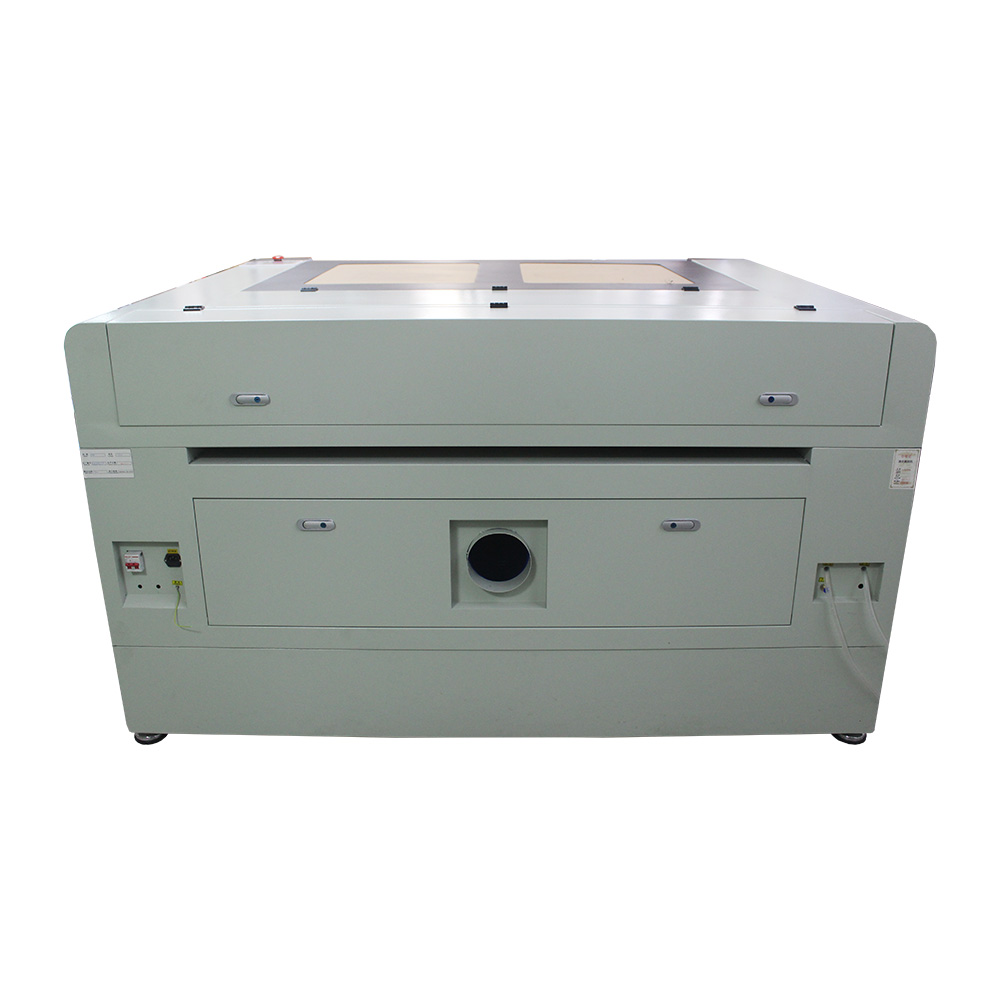

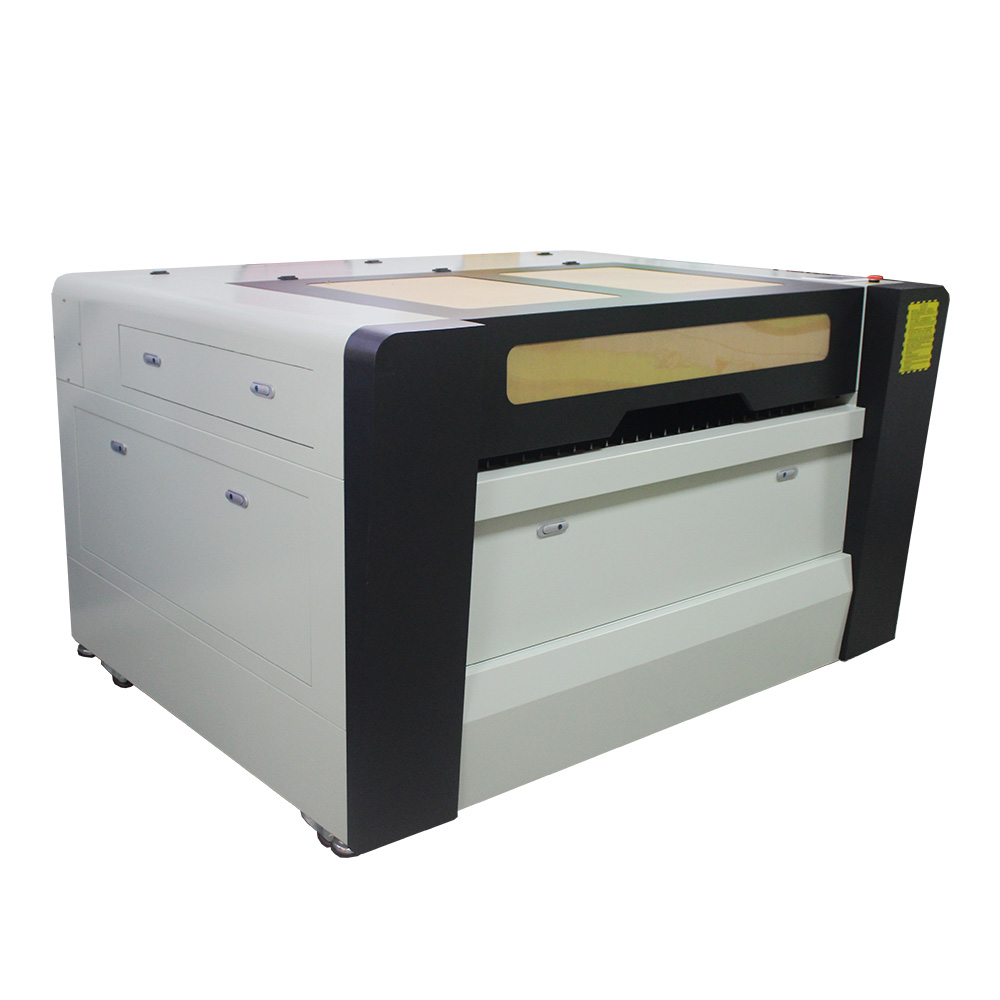

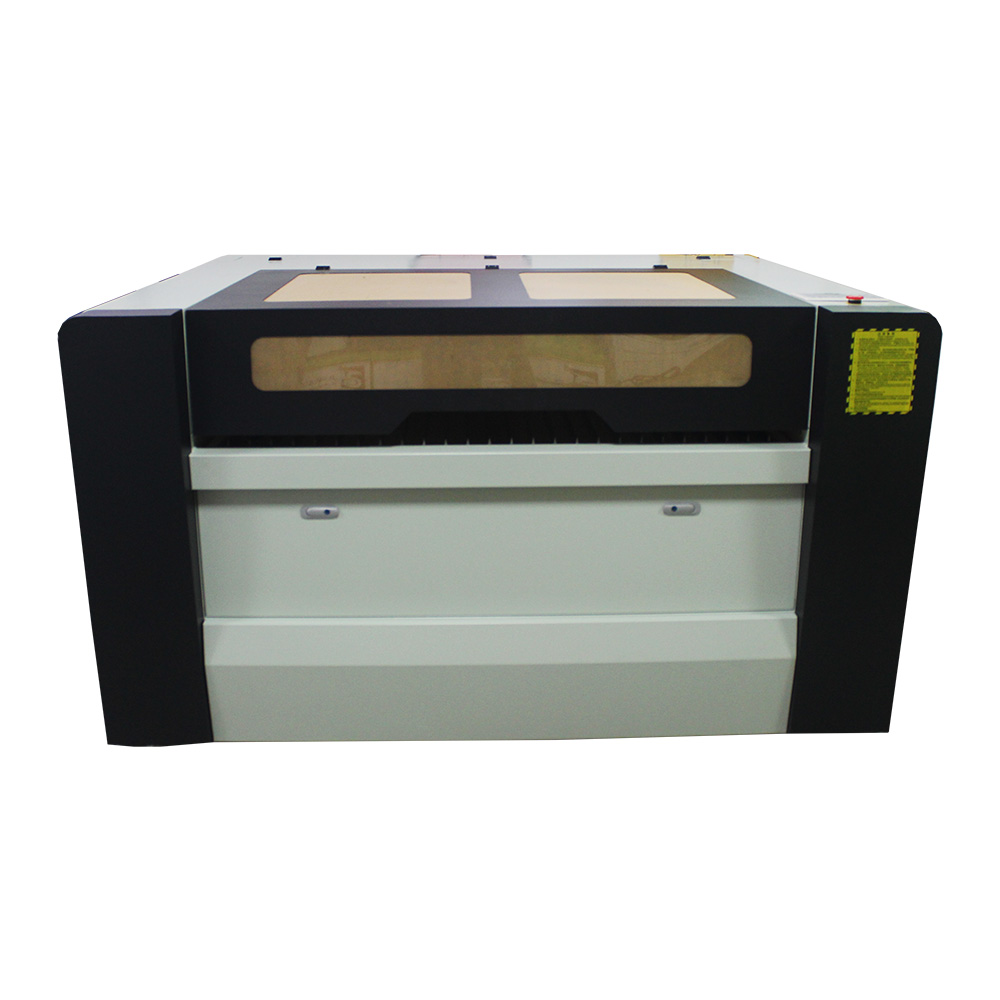

51" x 35" 130W CO2 laser cutter with Auto - focus Function, FDA Certificate
The machine is a laser engraver and cutter equipped with 130W CO2 Laser Tube. It is used to engrave on wood, bamboo, Plexiglas, crystal, leather, rubber, marble, ceramics and glass and etc. It is a suitable and preferred choice of equipment in industries such as advertisement, gifts, shoes, toys and etc. It supports multiple graphic formats, such as HPGL, BMP, GIF, JPG, JPEG, DXF, DST, AI and so on.
This machine is equipped with DSP Control System for RD draw directly, also supports Core Draw and Auto CAD and other advance software.
Our laser equipment with the RECI W6 130W laser tube has two workstations, Honey Comb Table and Blade Table.
| Specification | |
| Laser Power | 130W |
| Voltage | AC110V ± 10%, 60HZ |
| Laser Type | CO2 Sealed Glass 10.64 um |
| Working Area | 1300mm x 900 mm (54 - 1/4" x 35-1/2") |
| Worktable | ± 20in Electric Up & Down Aluminum Platform |
| Worktable | Honey Comb Table |
| Max. Engraving Speed | 300mm/s (11-3/4"/s) |
| Max. Cutting Speed | 400mm/s (15-3/4"/s) |
| Engraving Thickness | 0 - 10 mm (0 - 3/8") depends on material |
| Cutting Thickness | 0 - 10 mm (0 - 3/8") depends on material |
| Locating Precision | ± 0.01mm |
| Resolution Ratio | ≤ 1,000 dpi |
| Min. Character Size | 1 mm x 1 mm |
| Min. Character Letter | 2 mm x 2 mm |
| Operating Temperature | 41℉ - 122 ℉ (5 ℃- 50 ℃) |
| Data Transfer Interface | USB 2.0 |
| System Environment | Windows XP / 2000 / 7 / 8 / 10 |
| Graphic Format Supported | Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.) |
| Color Separation | Up To 256 Colors |
| Cooling Type | Circulating Water Cooling and Protection System |
| Control System | RuiDa |
| Rotary Device | Yes |
| Auto-focus | Yes |
Features:
1. Quality CNC machined parts for durability Guaranteed
2. Upgraded control board for more accurate currency adjustments
3. Powerful exhausting fan for fumes and smoke extraction
4. USB port to connect the engraver
5. Windows 8, 7 (64 or 32 bit), XP, 2000 compatible (NOT compatible with iOS system)
6. FDA certified
Product details:

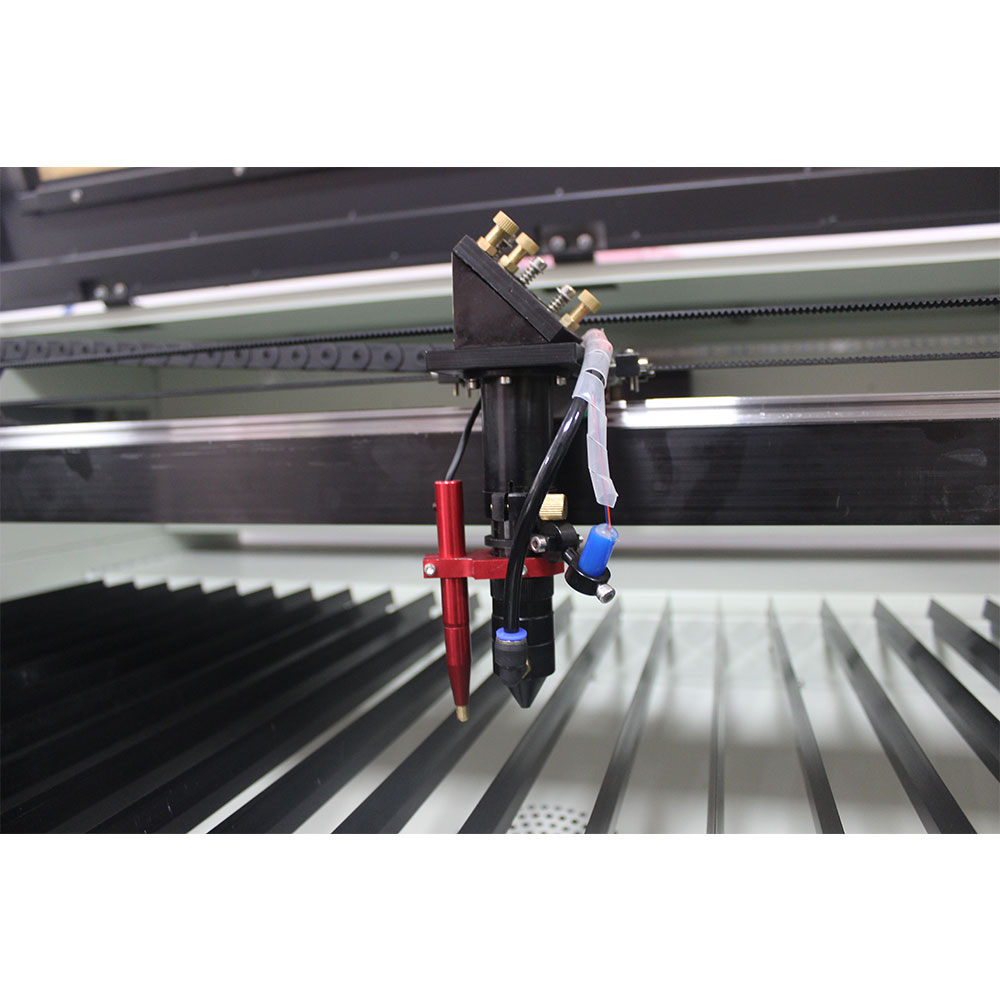

Industrial Laser Head
Laser head with auto focus system
Auto focus should be match with up and down table. The device easily and quickly to focus according to different materials, and saving much time, more intelligent.
Air Assist
Blowing air to prevent the material being burned

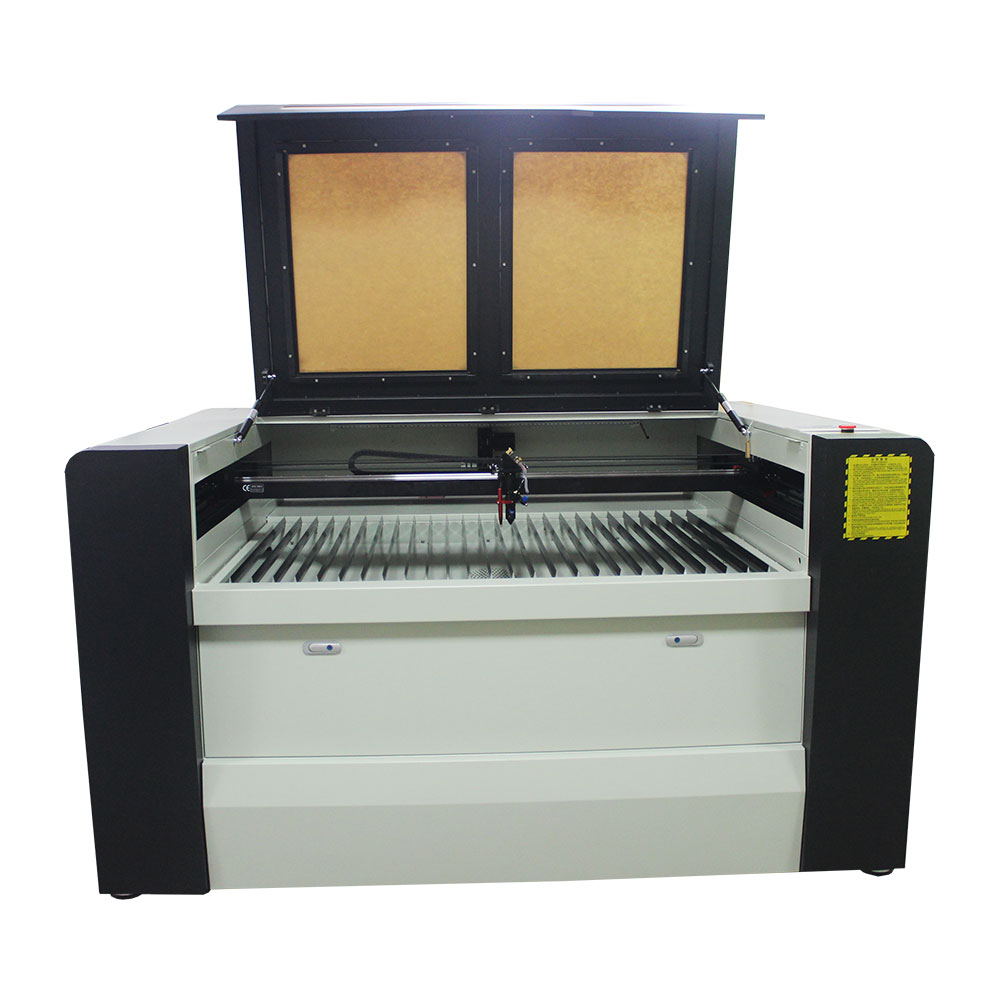

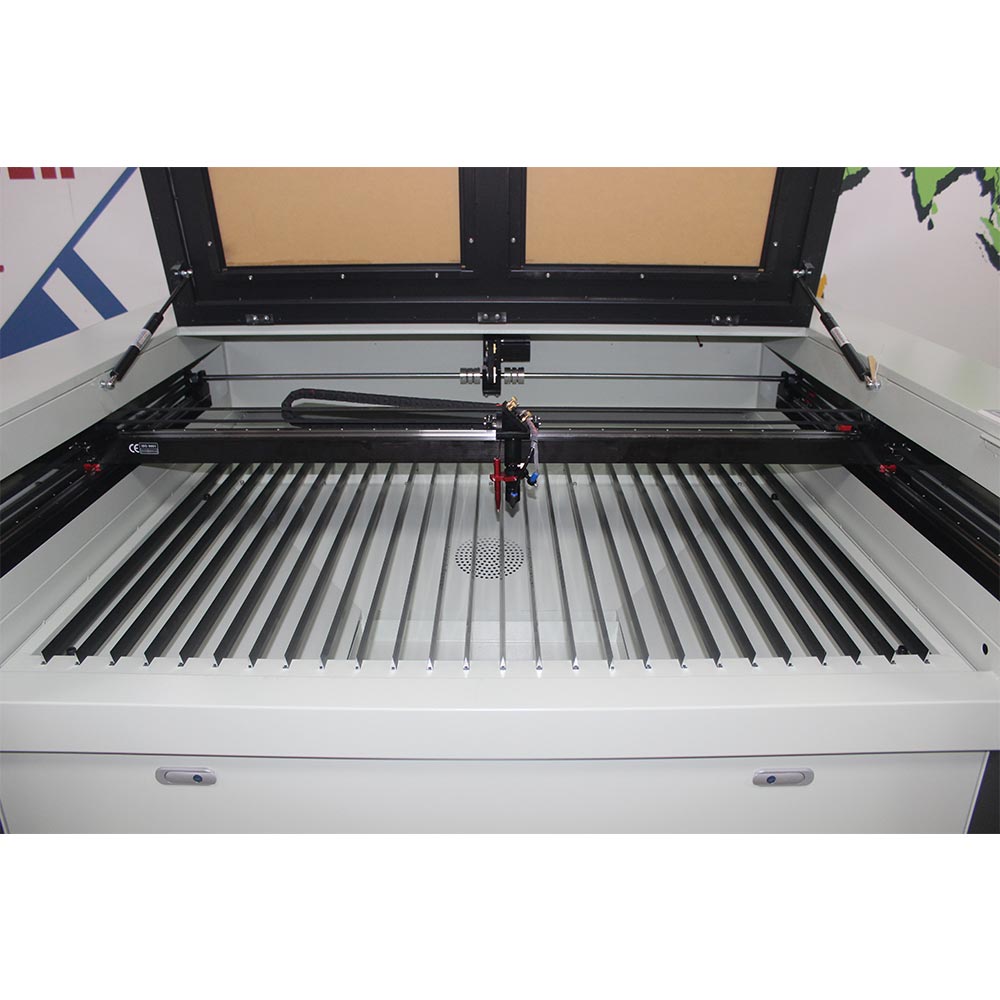

Double Platforms
Both knife blade and honeycomb platforms for cutting and engraving.
RUIDA 6445 Control System
4-axis laser Engraving & Cutting
10/100M Ethernet + USB2.0 Control
Multi-language(En Ru Es Pt)

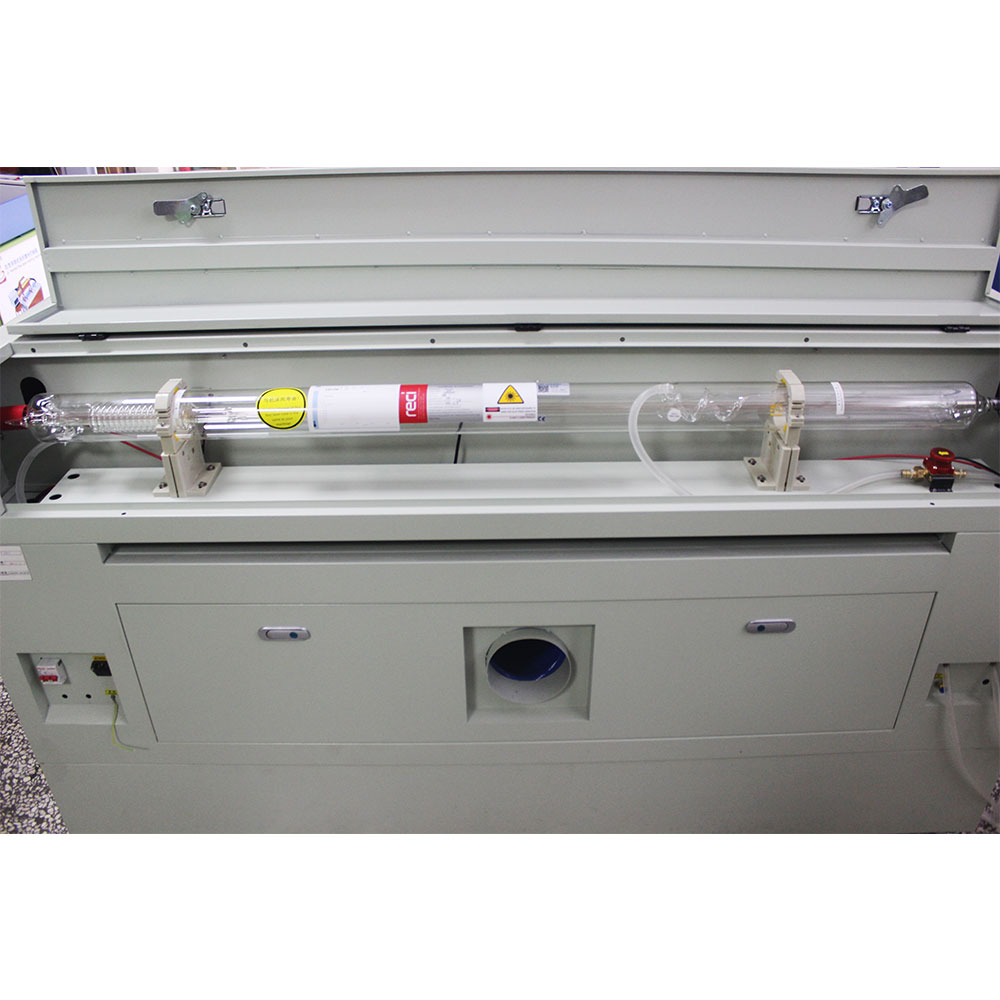

CO2 Laser Tube
We have catalyst plating in the inner wall of the laser tube. working life is up to 10000 hours. When compare to the same length tube, RECI W6 co2 laser tube is New firing technology is used to join metal parts and glass parts together directly. This new technology makes the high stability in W series laser tubes.
Taiwan Hiwin Linear Guide Rail
Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.

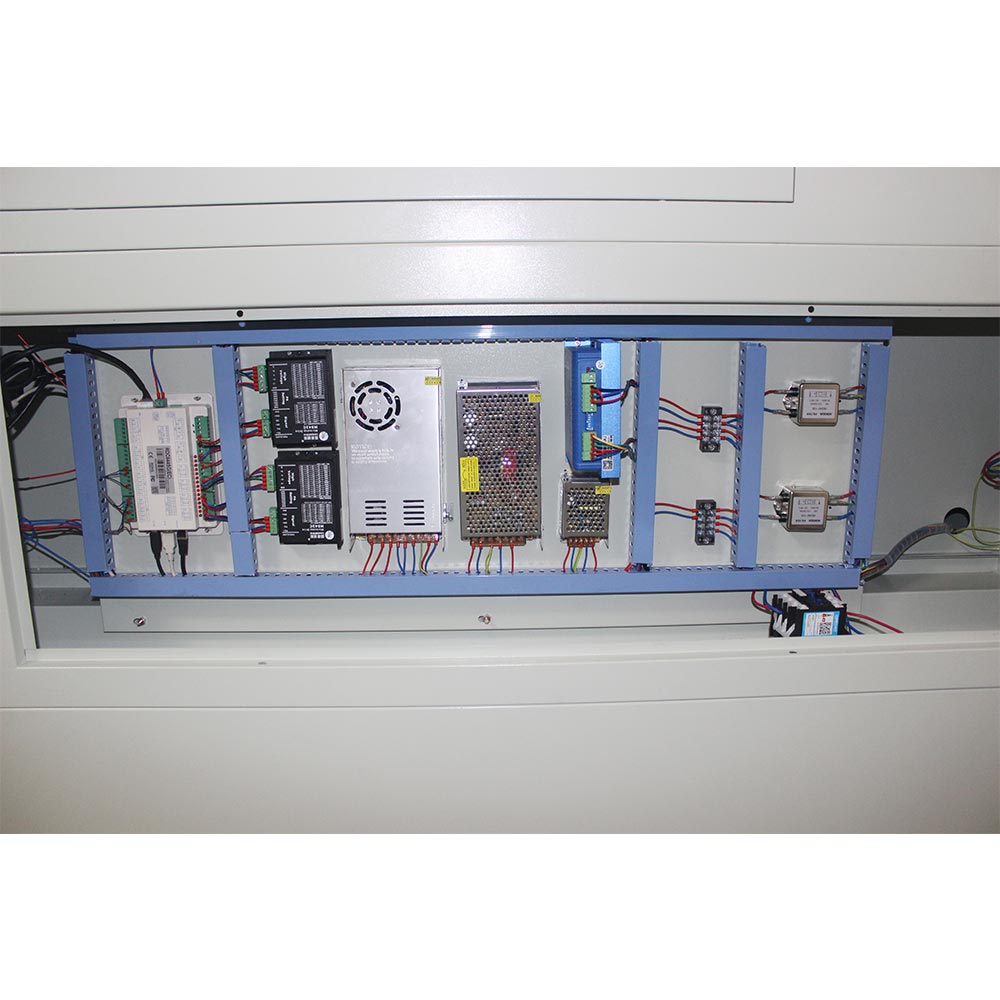

Control box
Install high quality electrical components in China, more secure. Reasonable layout with clean and efficient design, it convenient for machine repair and maintenance.
Well-Designed Details
Switches and emergency button for better control.
Sample:
Exhibition Gallery
| Working Size | 900mm x 1300mm |
| Specification | |
| Laser Power | 130W |
| Voltage | AC110V±10%, 60HZ |
| Laser Type | CO2 Sealed Glass 10.64 um |
| Working Area | 1300 mm × 900 mm (54-1/4" × 35-1/2") |
| Worktable | ± 20" Electric Up & Down Aluminum Platform |
| Worktable | Honey Comb Table |
| Max. Engraving Speed | 300 mm/s (11-3/4"/s) |
| Max. Cutting Speed | 400 mm/s (15-3/4"/s) |
| Engraving Thickness | 0 - 10 mm (0 - 3/8") depends on material |
| Cutting Thickness | 0 - 10 mm (0 - 3/8") depends on material |
| Locating Precision | ± 0.01mm |
| Resolution Ratio | ≤ 1,000 dpi |
| Min. Character Size | 1 mm × 1 mm |
| Min. Character Letter | 2 mm × 2 mm |
| Operating Temperature | 41℉ - 122 ℉ (5 ℃- 50 ℃) |
| Data Transfer Interface | USB 2.0 |
| System Environment | Windows XP/2000/7/8/10 |
| Graphic Format Supported | Files CorelDraw Identify (BMP, JPEG, AI, PLT etc.) |
| Color Separation | Up To 256 Colors |
| Cooling Type | Circulating Water Cooling and Protection System |
| Control System | RuiDa |
| Rotary Device | Yes |
| Auto-focus | Yes |
Average Rating: 0
| Machine Dimension | 1820x1325x1070mm(71.7x52.2x42.1in) |
| Package | Wooden Crate |
| Shipping Dimensions | 1940*1450*1300mm(76.4x57.1x51.2in) |
| Gross Weight | 445Kg(981Ib) |
Installation of 1390 CO2 Laser Cutter
