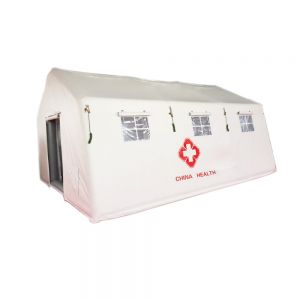

30m² Inflatable Emergency Rescue Tent Parameter Upload Artwork

Unit Price:$2,325.00 - 2,448.00/pc(Discount Notice)

Buy More, Save More!

Qty (pcs) Discount Amount/pc
    1 0% $2,448.00
    2 - 5 5% $2,325.00

Need more quantities, please submit a Bulk Order inquiry

Get Coupon: $500Order ≥ $4999 $200Order ≥ $1999 $100Order ≥ $999 $50Order ≥ $499 $30Order ≥ $299 $10Order ≥ $100

Quantity:
pc(s) Total Cost: USD $2,448.00

Shipping Weight: 319.0lb (145kg) freightFreight

Order Now Add to Cart Ask A Question

Buyer Protection

Your are Viewing: Price : $2,325.00 - 2,448.00/pc Order Now
Cart 0 item(s) Back to Top


Data Sheet:

1. Projection size: 6 x 5 x 3.1m Shoulder height: 2.2m shadow area:30㎡
2. Inside Size: 5.52 x 4.52 x 2086m  Inside area: 24.9㎡
3. Skin material: 750g White PVC (Protect from light and heat)
4. Air column: PVC double-sided adhesive coated fabric
5. Lined:White  Silk
6. Ground cloth: Gray PVC
7. Door size: 1400 x 1900mm (2 door)
8. Window size: 750 x 600mm
9. valve (1 Charge and exhaust valve,1Safety valve,1 Electric flush pump)
10. 2 vents 1 Valve port(Bonnet made long reserved function port position)
11. The main structure is made by high-frequency heat sealing and heat sealing process
12. Logo equipped:On demand
13. The bottom air column is made of sandbags, which can be used in conjunction with sandbags in harsh environments to reinforce
14. Working pressure: 18-22Kpa
15. Adapted temperature: -30 ℃ – + 70 ℃
16. Inflation time: 3-5min. The normal working time of the air column after inflation can be more than 7 days.
17. Wind resistance level: ≤8
18. Estimated weight: ≤150KG
19. Hydrostatic bearing capacity: 20Kpa
20. Surface water protection: 160mm
21. Snow resistance:10cm
22.Wind load level is not less than 20.7m / s
23.Site adaptability: suitable for concrete, sandy, concrete, grass without hard weeds
24.Overlap: Overlap should meet the requirements of rain and snow, etc. Each overlap should be firm, reliable, smooth, and free from tripping and lifting;
25.Fastening points: There are reinforcing blocks around each fastening point, which is firm and reliable, and there should be no degumming, air leakage, etc. Fastening points meet wind and snow resistance requirements.

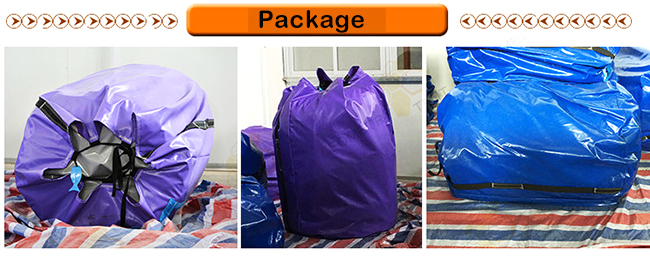

26.Estimated package size: 1.2 * 1.0 * 0.9m, packaging style is PVC bag + big handle for easy transportation.
27.Provide third-party testing reports for inflatable tents, which should include: high temperature test, low temperature test, wind resistance test, snow load test.
28.The main material is a polymer composite film with a multilayered microstructure, and the surface needs to be coated with a protective layer to resist light and oxygen erosion in harsh weather environments.

The Specific Indicators are as Follows.

NO matter parameter unit standards
1 Tensile Strength warp 2740 weft 2150 N/5cm DIN 53354
2 Elongation at break warp 22.5 weft 29.5 % DIN 53354
3 Tear strength Warp 502.7 weft 373.2 N DIN 53363
4 Peel load warp 129.8 weft 95 N/5cm DIN 53357
5 Flammability rating M2
6 Fastness to UV rays ≥6
7 Low temperature bending test -25 weft -25℃
8 Resistant to rubbing 500,000 times

Application:

Configuration Table

NO Name Quantity Unit
1 Tent Body 1 pcs
2 Draw Rope 8 pcs
4 User's Manual 1 pcs
5 Charge and Exhaust Pump 1 pcs
6 Tight Rope 8 pcs
7 Ground Anchor 8 pcs
8 Repair Kits 1 pcs
