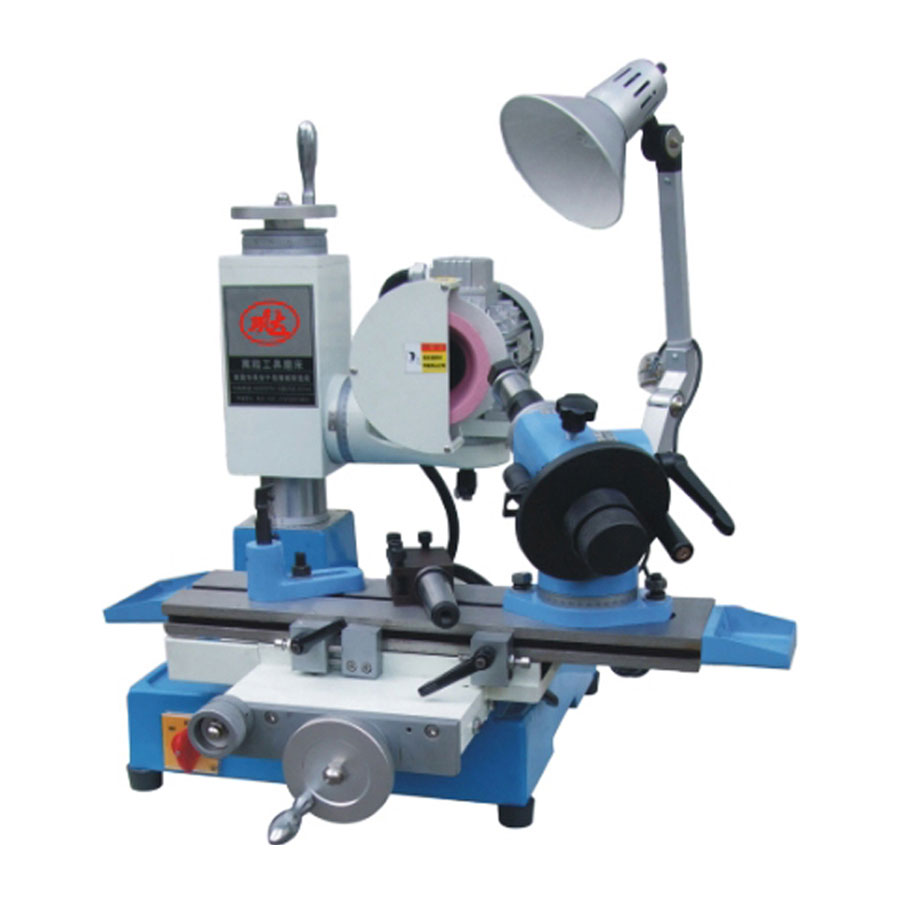

ECG-MD600: Universal Cutter and tool Grinder
Adopting precise roll guide on the table, it makes the table is stable and operated smoothly.
Then motor could be rotated 360degree, it could increase the grinding function and range of the machinery.
With variety of options can be provided for different purposes.
Features:
Variety of options that provides different purposes.
Easy set up.
It is easy to operate.
Fast and highaccuracy of the Grinding.
|
|
|

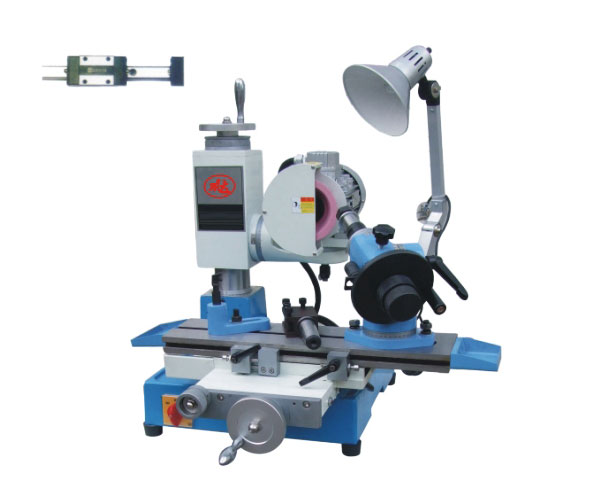

ECG-MD600 (No Stand) |

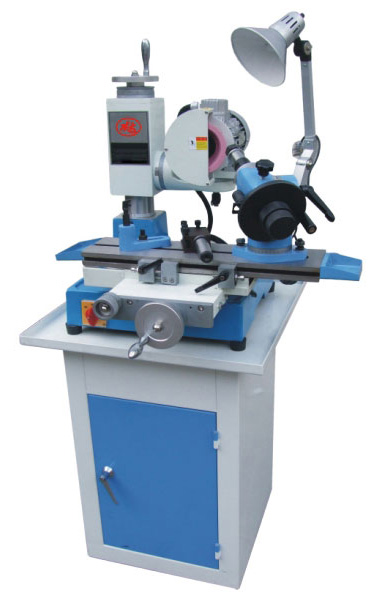

ECG-MD600F (With Stand) |
Specifications:
Longitudinal travel of table: 185mm
Cross travel of saddle: 120mm
Working table area: 125x520mm
Vertical adjustment wheel head: 140mm
Vertical tilting range of wheel head: 360°
Size of wheel: 125x50x31.75mm
Speed of wheel: 3,600 RPM /2800RPM
Motor: 1 HP, 220V /380V 50HZ
N.W. /G.W.: 170kgs /240kgs
Size of packing (L x W x H): 750x700x800mm |
The machine Universal Cutter and tool Grinder comes with different Accessories, each one has different uses.
The standard accessories are: 50H universal grinding attachment tool, 50C universal grinding attachment tool.
The optional accessories are: 50D end mill grinding attachment, 50k Multifunctional cutter and tools grinding attachment, 50Q gun drill grinding attachment, radius grinding wheel dresser, R-type turning tool grinding attachment, 50S 3-Jaw motor grinding attachment.
Standard accessories:
Optional accessories:
Introduction Accessories:
50H universal tools grinding attachment.
Price: $200
|
50C universal tools grinding attachment.
Price: $200
|
Capacity: grinding rounded cutter, such as side milling cutter, endmill blade, hobbing cutter, circular cutter. |
Capacity: general grindingturning tool, CNC turning tool, roughing turning tool, plane cutter, and different angles of turning tools.
|
50D end mill grinding attachment.
Price: $357
|
Radius grinding wheel dresser.
Price: $450 |
Capacity: for grinding 3-28mm endmill blade or endmill edge (taper shank or straight shank), or side milling cutter. |
Capacity: 3-28mm engracing cutter, R type endmill, and all kind of endmill. |
R-type turnning tool grinding attachment.
Price: $310
|
50S 3-Jaw motor grinding attachment.
Price: $450 |
Capacity: 30mm regular turning tool, angle turning, CNCturning tool, R-type turning tool, arc turning tool, and other turning tools. |
Capacity: 3-100mm internal and external grinding attachment. |
50k Multifunctional cutter and tools grinding attachment.
Price: $420 |
50Q gun drill grinding attachment.
Price: $420
|
Capacity: 0-50mm (taper shank or straight shank) drill bit, step drill, screw tap, side endmill, round bar. |
Capacity: 5-40mm gun drill bit, compact, easy installation and operation, saves processing time(can finish all angles grinding at the same time). Finishing with high precision and high power. |
