RichAuto DSP Plasmas Cutting Motion Control System-A12

Unit Price:$412.00 - 453.00/pc(Discount Notice)

Buy More, Save More!

Qty (pcs) Discount Amount/pc
    1 0% $453.00
    2 - 3 5% $430.00
    4 - 6 9% $412.00

Need more quantities, please submit a Bulk Order inquiry

Get Coupon: $500Order ≥ $4999 $200Order ≥ $1999 $100Order ≥ $999 $50Order ≥ $499 $30Order ≥ $299 $10Order ≥ $100

Quantity:
pc(s) Total Cost: USD $453.00

Shipping Weight: 4.4lb (2kg) freightFreight

Order Now Add to Cart Ask A Question

Buyer Protection

Your are Viewing: Price : $412.00 - 453.00/pc Order Now
Cart 0 item(s) Back to Top

Plasmas Cutting Motion Control System-A12

Descriptions:
1.High performance core processing CPU: The eight nuclear processing CPU, faster calculation, and stronger processing ability.

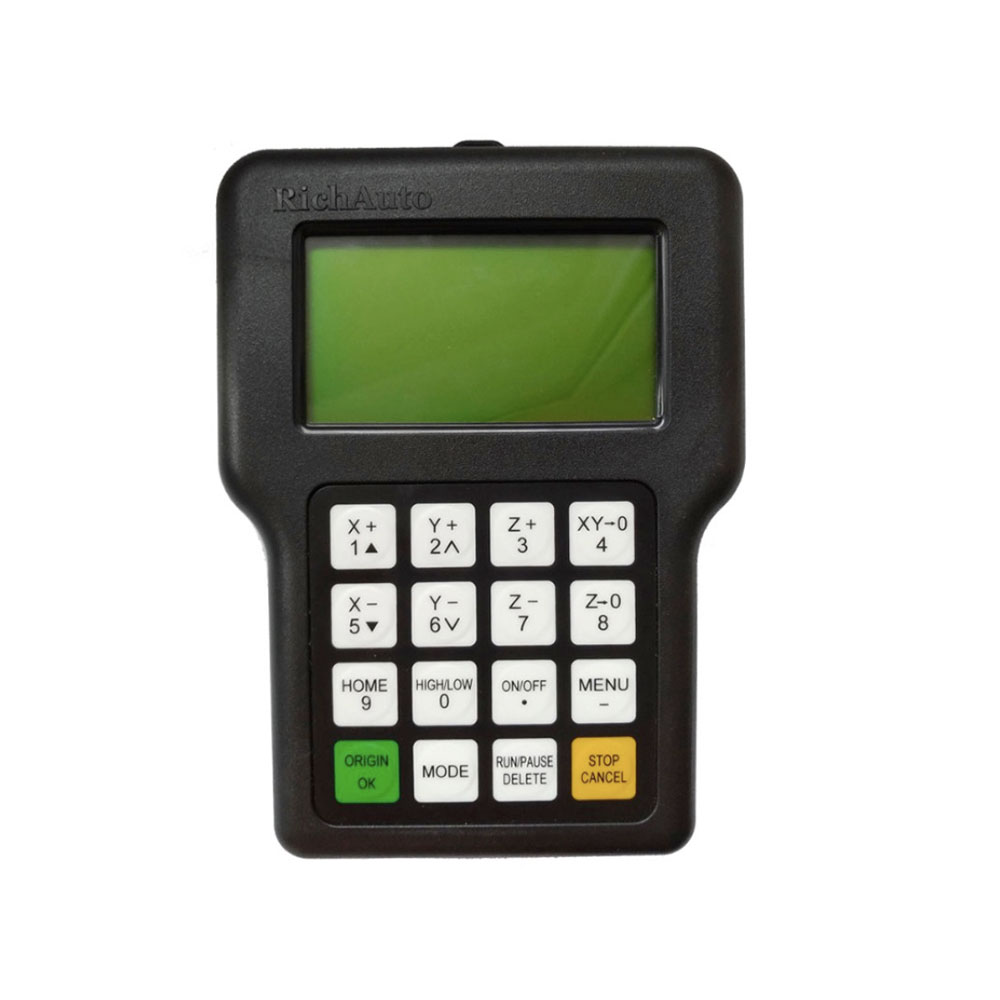

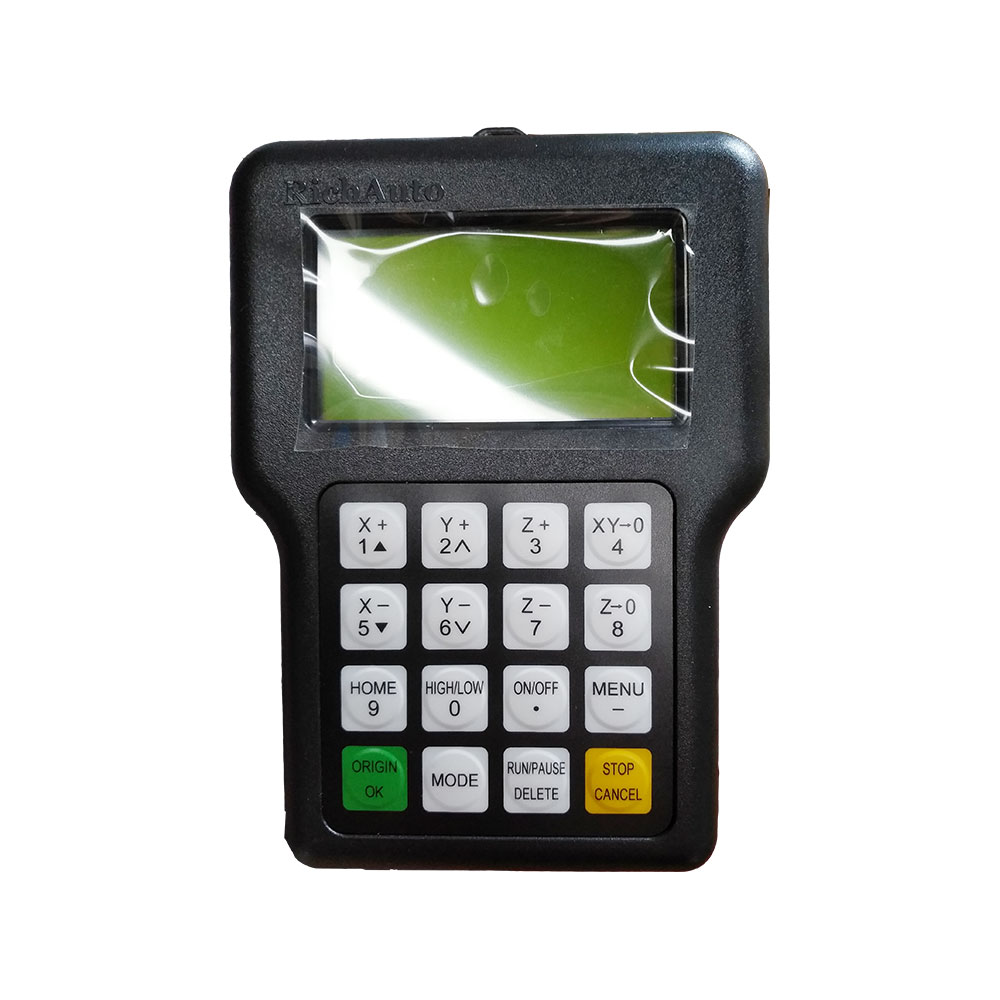

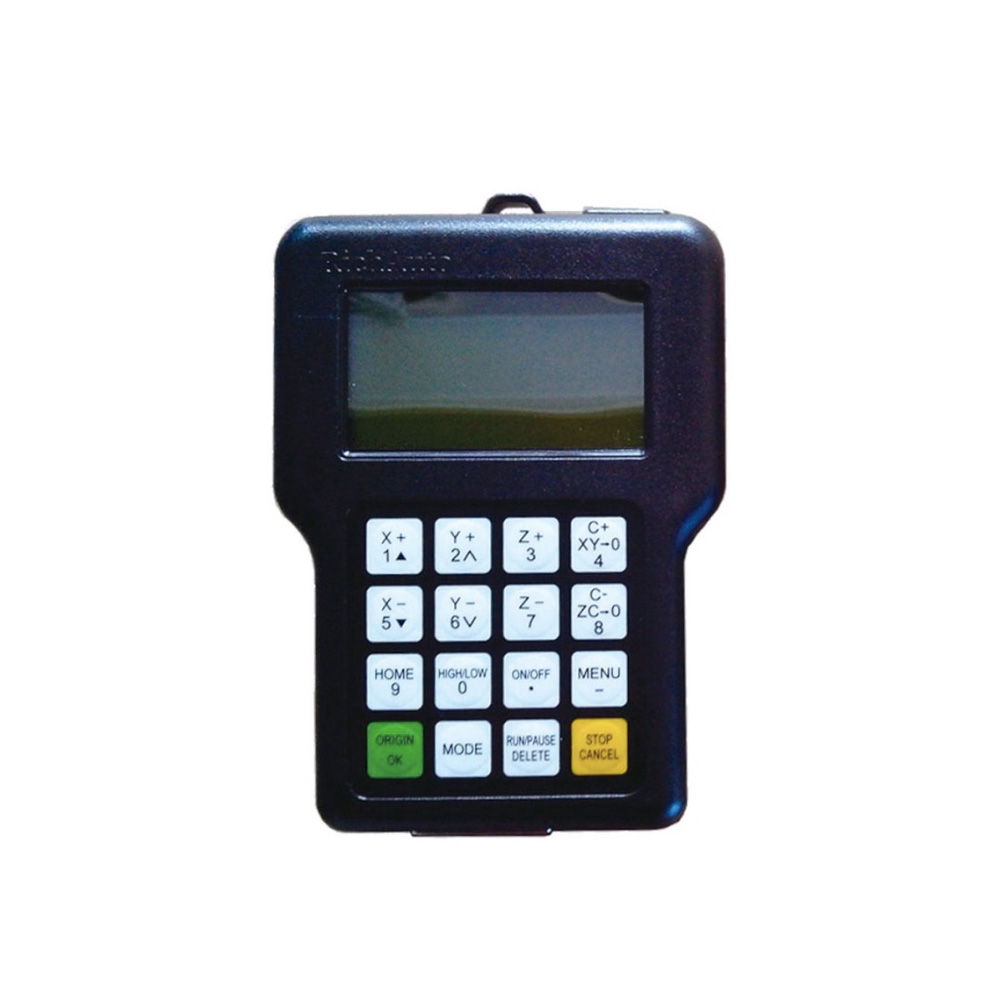

2.Simple handle structure with buttons controls: 16 buttons operation mode, comfortable hand-held end, easy to learn easy to use, simple and quick.
3.Multiple data transmission, large storage capacity support: Completely off-line operation and support a variety of mobile storage transmission methods; 512MB internal memory, can read large capacity storage mobile device.
4.Intelligent reading processing documents function: Auto Now series products is more smart in proof reading of the processing documents, to new processing files, only reading before the first time operation. And in the process of reading, it can also skip checking according to customers’ demands that save the users’ valuable time in great degree.
5.Intelligent memory function: support power lost and breakpoint processing; not only storage the process position, but also memory the file name, ensure user continue processing from breakpoint quickly & accurately.
6.Two kinds of processing mode choice: high precision mode and to ensure the machining precision and quality of high-speed mode, that ensure the process efficiency, saving processing time.
7.Security checking & alarm: Add security warning system and abnormal reminder functions, such as back to zero abnormal shaft mark, distance mode mobile safety tips, processing beyond the function such as display, greatly guarantee the accuracy and consistency processing.
8.More perfect encryption functions: Hardware encryption, set parameters encryption, running time of encryption and the internal important processing file encryption, and other functions, the modification, prevent delete prevent copying, and to ensure the customers’ technical information and assets safe.
9.Anti-jamming performance ids greatly increased: Though some CE test, anti-jamming greatly improved.
10.Department stronger: Auto Now based version 8 series of 8 out into the support I/O mouth custom editing functions, the user can completely according to their own needs editing and defined, and may expand to 32 input 32 output; Based on 8 nuclear processing CPU, but also for secondary development, for the customer equipment of the special function, special purpose to add, meet the needs of different industries, with period is short, the cost is low, the secrecy id good wait for a characteristic.

Features:
1.Adopt high-speed 8-core CPU to achieve stronger computing capacities and fast computing speed.
2.Perfect U disk compatibility, fast reading speed, safe and reliable U disk processing.
3.Parameter backup and restore function to prevent the lost of important parameters.
4.High anti-jamming intensity passes a number of CE tests.
5.Definable I/O interfaces can control some divides like cylinder, plasma arc voltage adjusting controller, etc.
6.The DSP system provides border-testing function to achieve placing processing materials more conveniently.
7.New computing mode can prevent damaging during plasma processing.

Detail:


Parameters:
Product Model: Rich Auto----A12
CPU: DSP
Internal Memory: 512MB
Display Screen: 128 x 64 Monochrome LCD
Communication Port: U disk, USB cable
Controlled Axis Number: 3 axes or 2 axes
Control Signal: Differential signal
Drive System: Step motor / Servo motor
Min Input Unit: 0.001mm
No Volt Protection: Support
Breakpoint Processing Function: 8
External Power Supply Voltage: 24V DC
Manual Mode: Continuous, point move, distance
Interpolation Way: line, arc
Soft/Hard Limit: Support
Max. Pulse Frequency: 1M/S
Password Protection: Support
Support Language: simple Chinese, traditional Chinese, English, other languages

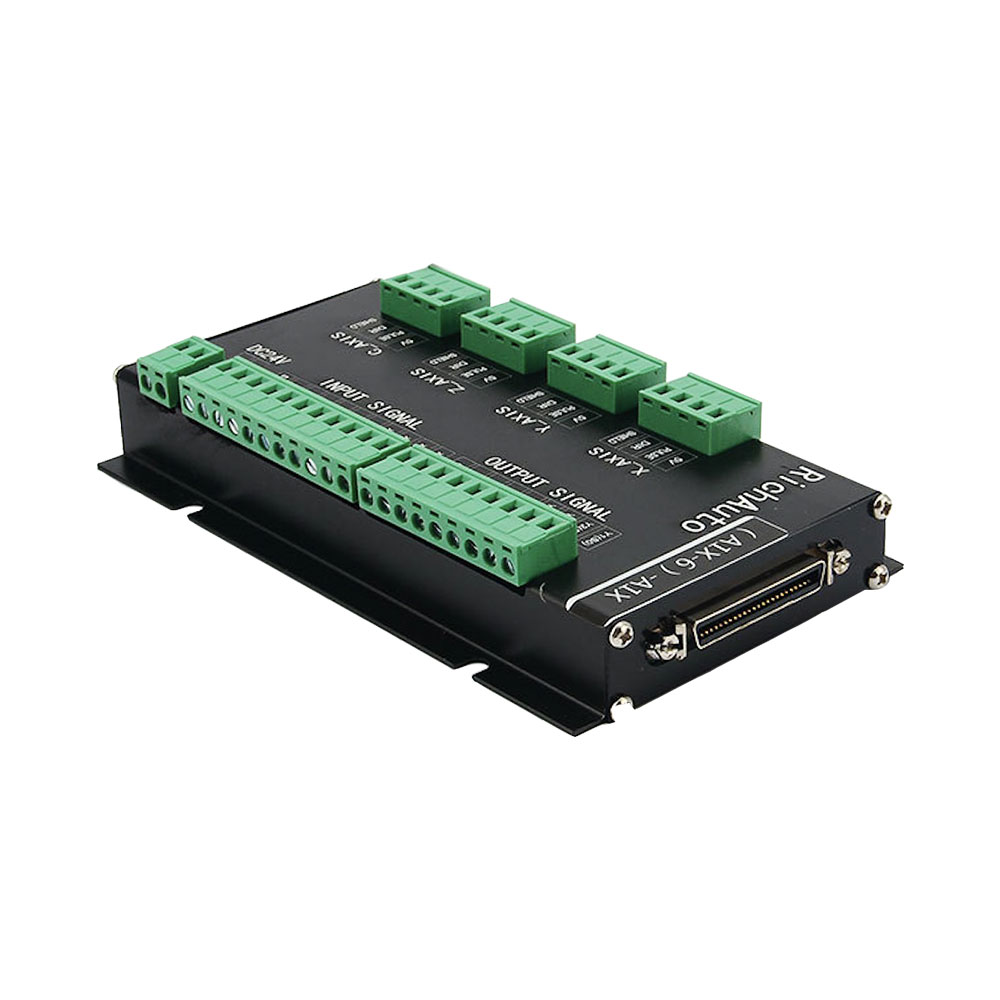

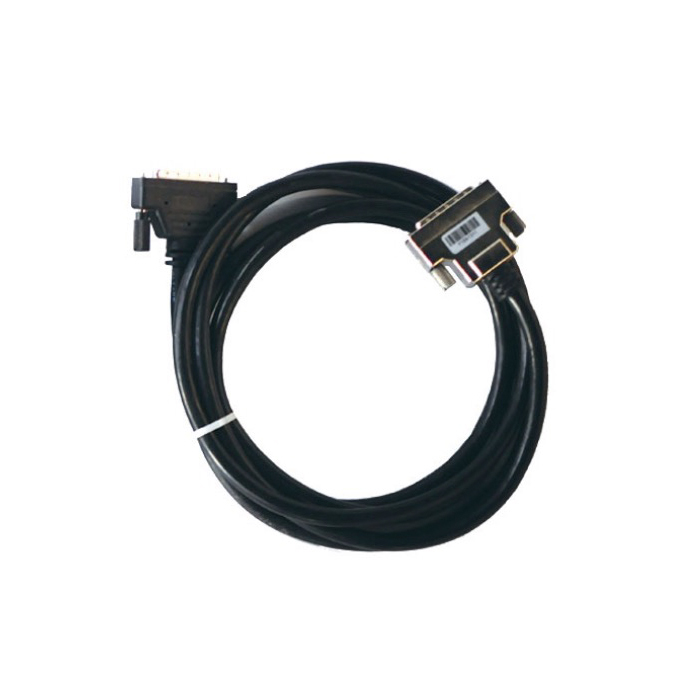

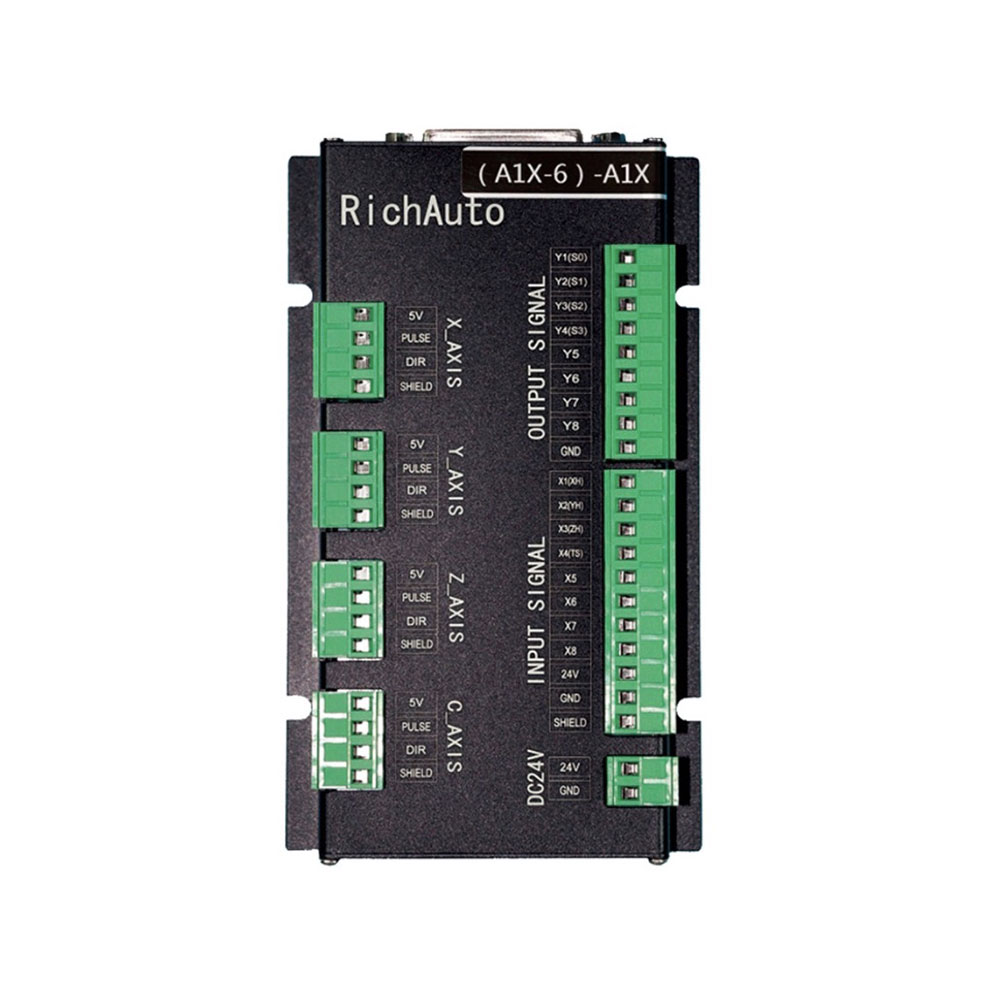

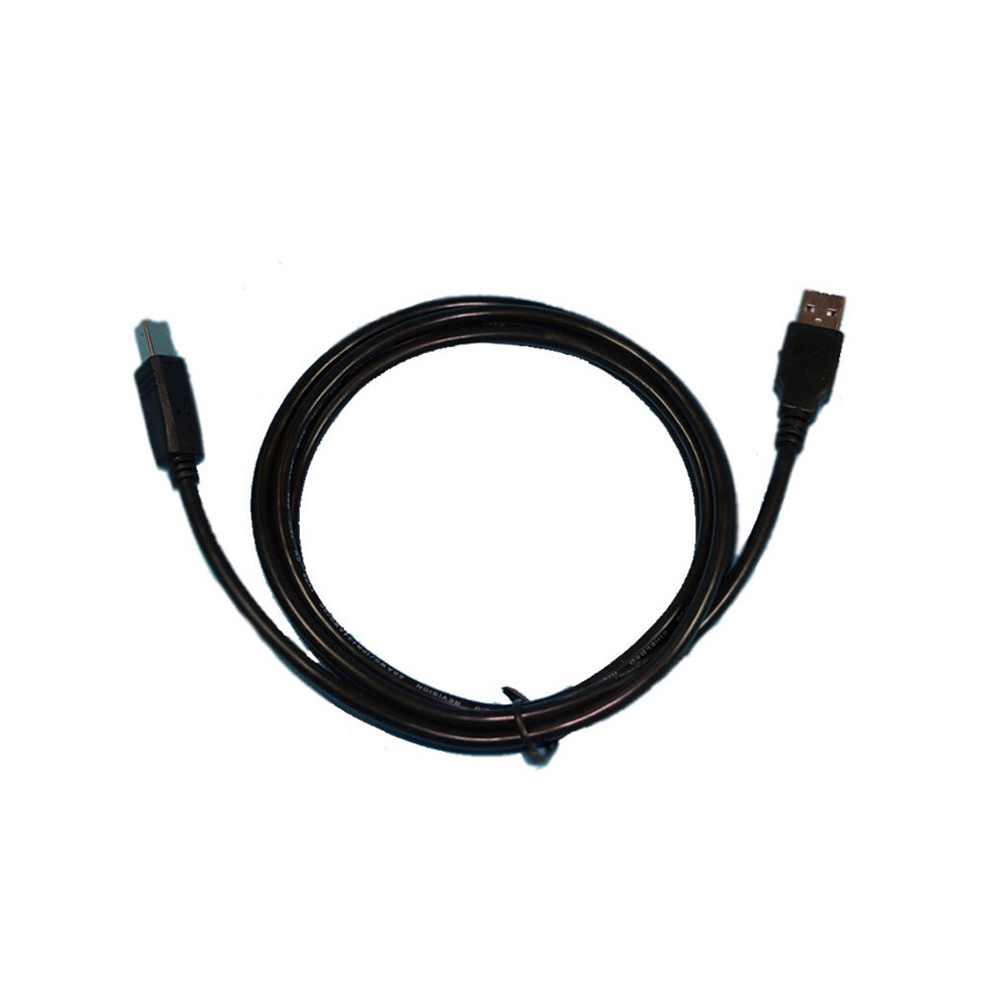

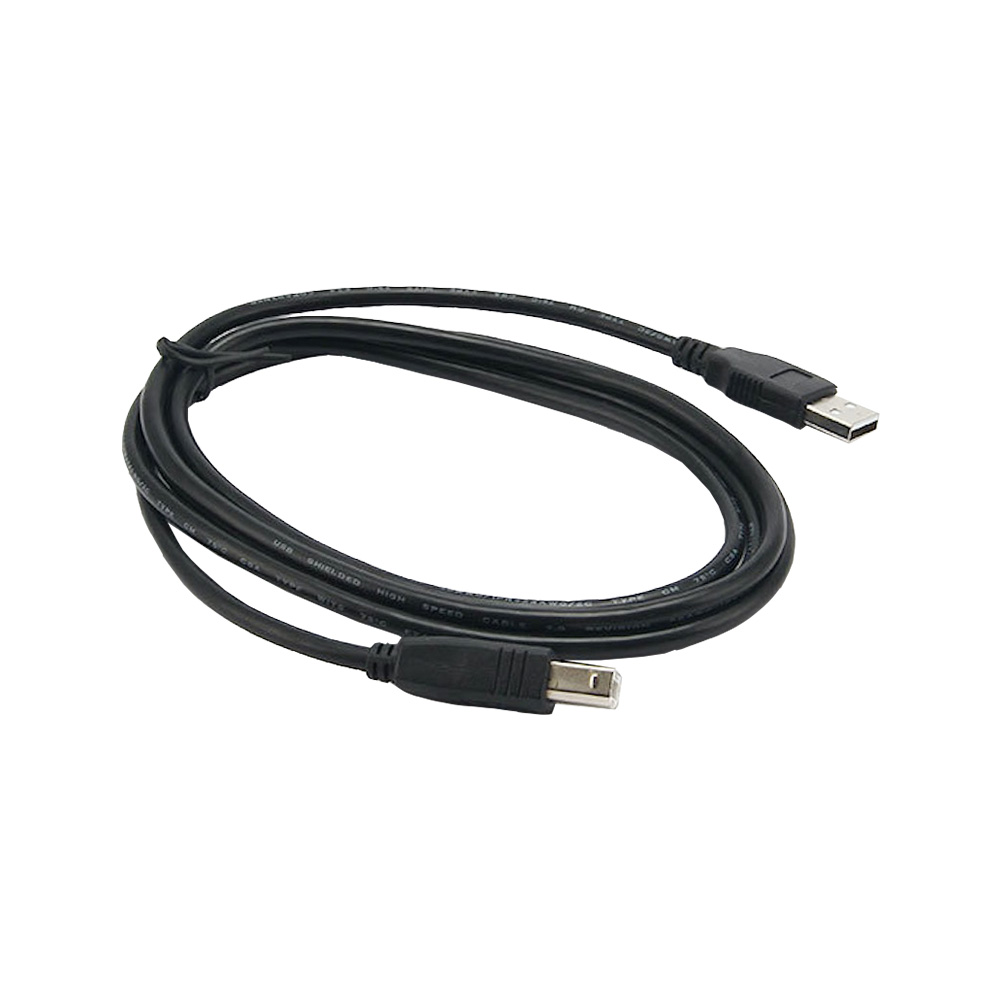

Standard Configuration: (1) DSP Handle (1) 50 core cable (1) USB cable (1) 8 I/O Wiring board (1) data CD

This product has no attributes!
This product has no Specifications
Love it! Rate it!
  • Simply write a review of a product and you can get up to 500 Points (Equivalent to $5) for Next Orders.
  • ≥ 120 words + ≥ 3 clear photos = Up to 1000 Points (Equivalent to $10).
  • Show us why you love or how to use the product. Help other shoppers find the right product!
Average Rating: 0

Packing Size: 110 x 150 x 30mm
Packing Weight: 2kg
