Introduction:

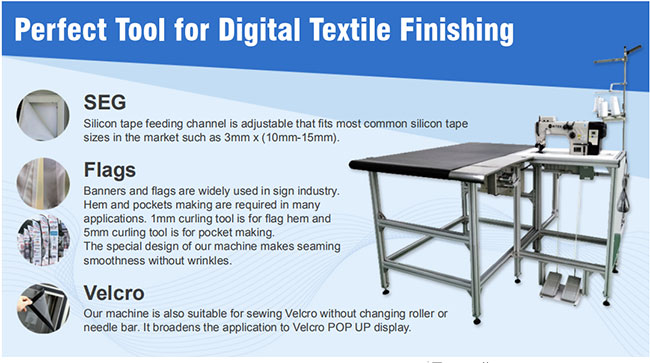

Multi-function Silicon Edge Sewing Machine series is a special machine for finishing all banners and signs or sew digital textiles with silicon edge graphics, Velcro, and hem. It reduces production time and increase output.
Our machine is reasonable structure and user friendly. Operators achieve consistent and high-quality flat seams alignment without ruffling. Durable electrical and mechanical designs are safe and reliable. Let us bring your textile finishing to next level.
Functions:

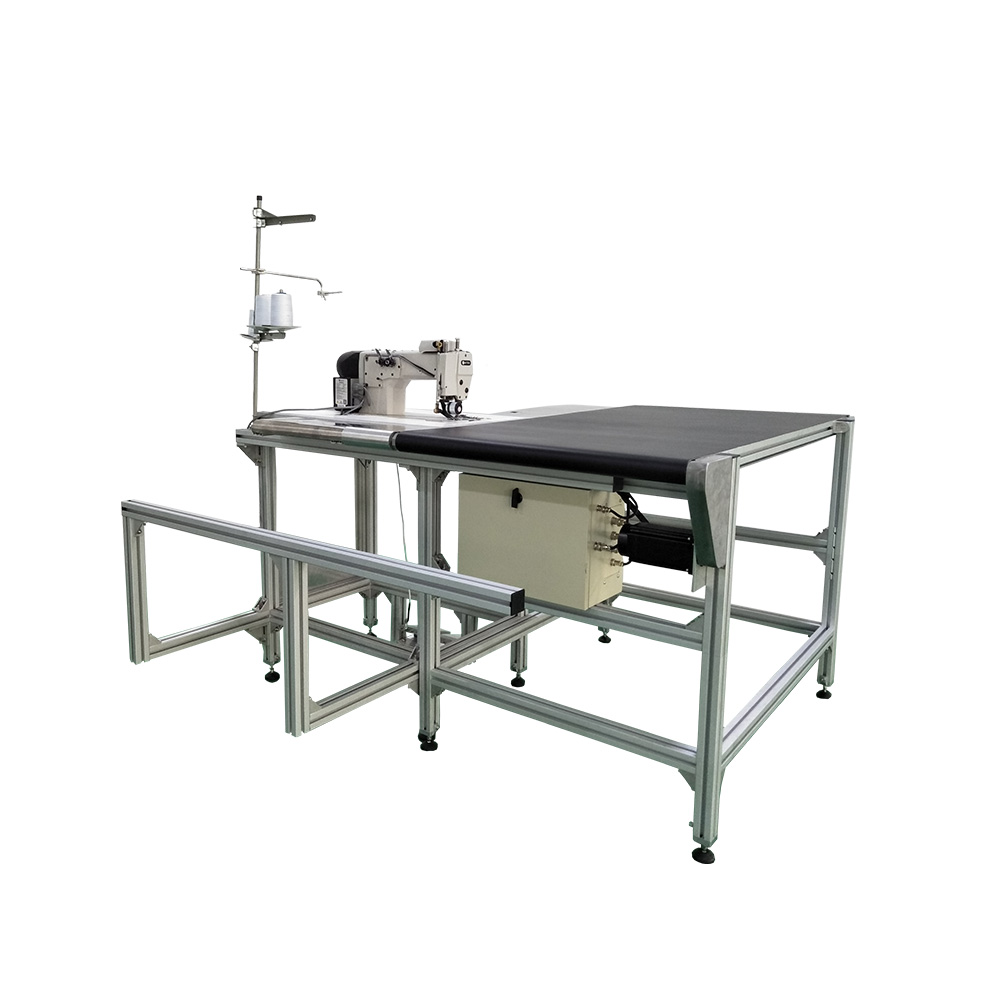

• Version with conveyor
• Working table, conveyor and silicon tape feeding rack all-in-one
• 50x50mm aluminum durable frame
• Suitable for large format and heavy textiles
• Adjustable sewing speed for various needs
• Adjustable silicon tape channel to fit for 10mm to 15mm

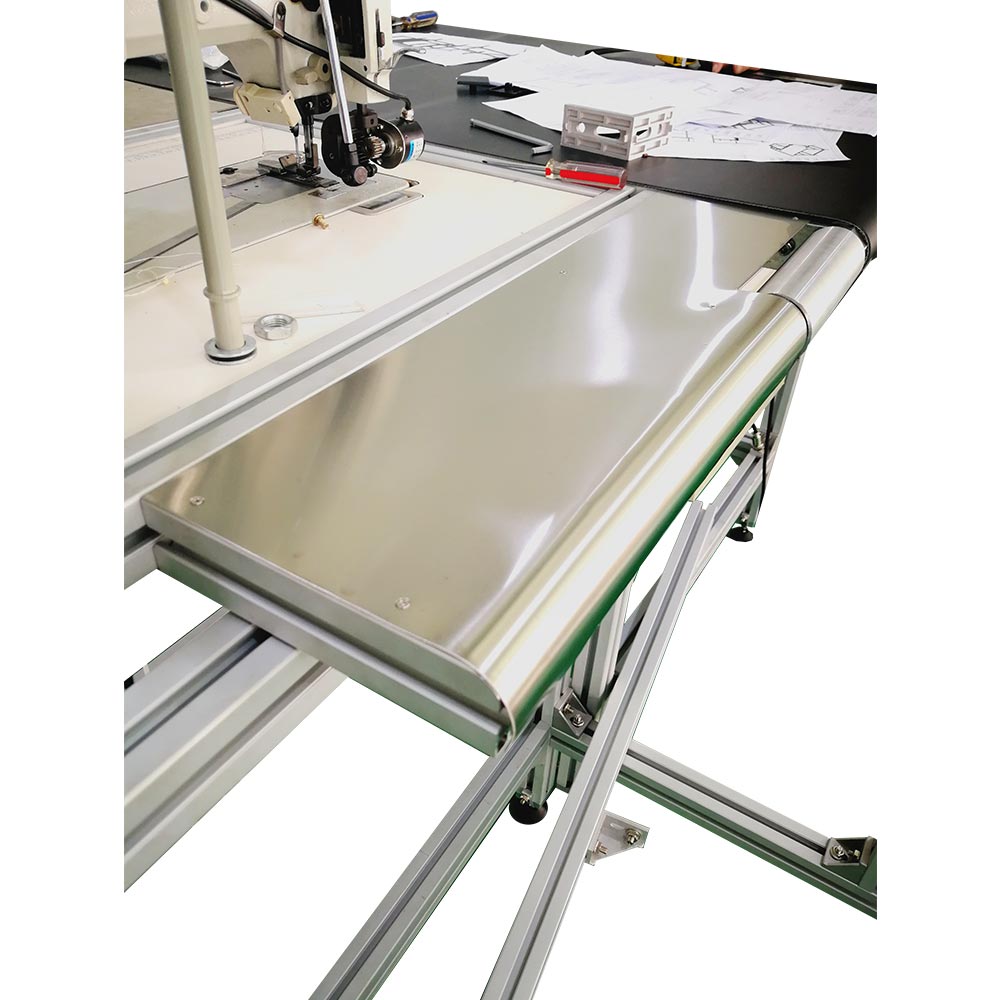

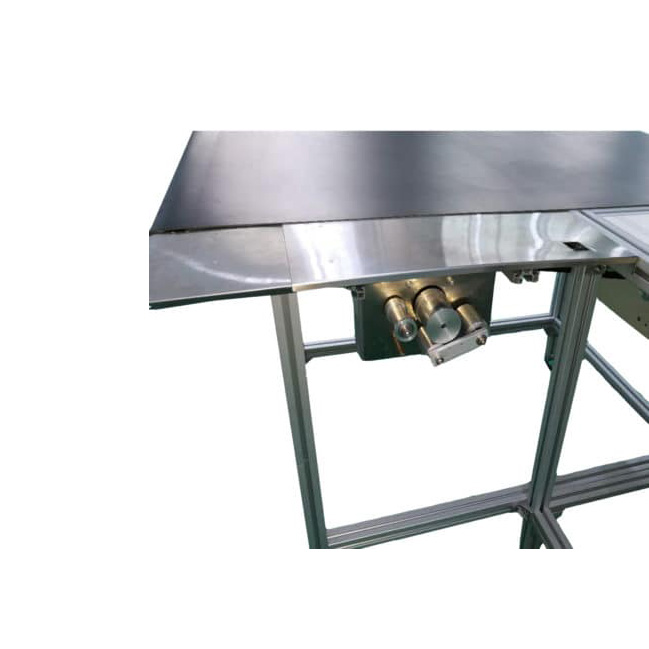

• Conveyor synced with sewing machine for accurate and precise flow
• Metal roller and plastic roller as options
Detail:
Advantages
1. Simple Operation
• Plug and play, labor cost saving.
• No special training is required for the operators.

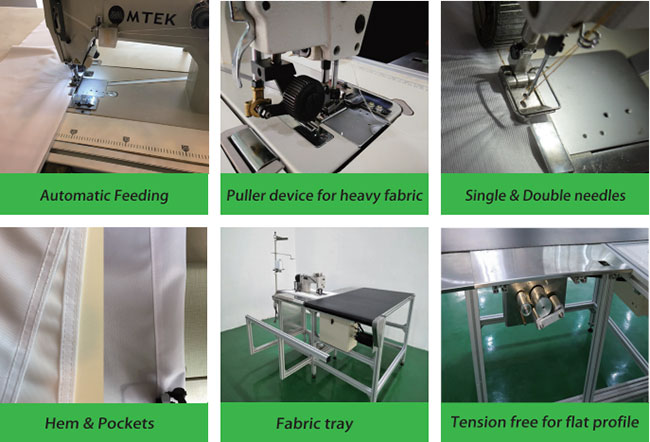

2. Automatic Feeding
• Fixed channel for silicon tape to make sure straight alignment.
• Feed silicon tape and fabrics at the same time.
3. Automatic Output
• Finishing comes out automatically, no manual assist is required.
4. Steps on the Same Line
• Feeding, knitting and output are proceed on the same line that makes finishing straight and flat.
5. Double Stitches
• Strong, durable and nice appearance.
• No overlock required.
6. No Conventional Bobbin
• Thread roll only, no conventional bobbin required.
• Efficient workflow by continue knitting without replacing bobbin time by time.
7. Special Motor
• Servo motor provides max. up to 4000rpm, rather than stepper motor limited to 1500rpm.
• Speedy knitting with stable performance.
8. Special Structure
• Silicon oil acts as lubricant that prevent thread from broken.
• Small plastic box placed in front of machine head where access and refill oil easily.

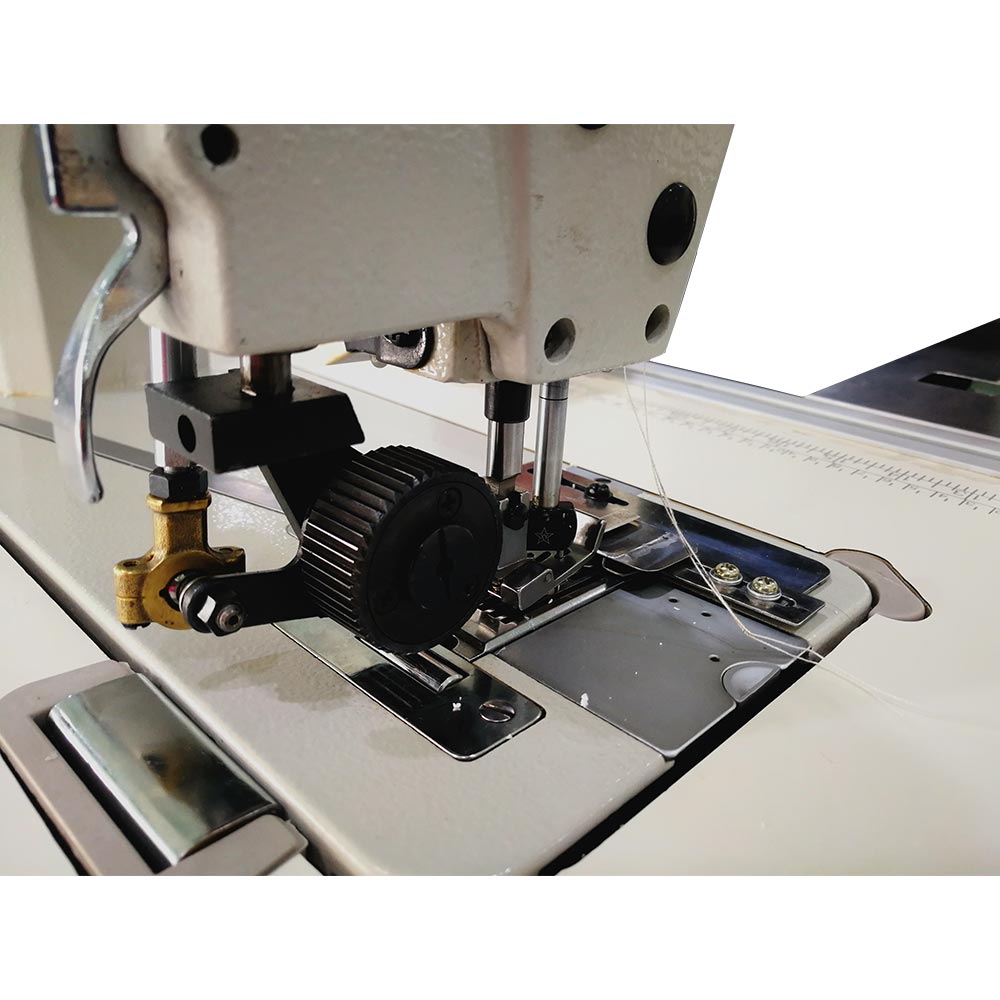

• Special mechanical structure minimizes thread and needle broken during long lasting operation.
9. LED provides even and clean light source.
10. Multi-function suitable for various applications for silicon tape, Velcro, hem and pockets.
Application:
| Specification | |
| Standard Conveyor | 1500mm x 800mm (Customizable) |
| Seam Stitches | Single or Double Chainstitch |
| Speed | up to 20m/min. |
| Voltage | 110V /220V |
| Machine Dimension | 1490mm x 1020mm x 960mm (conveyor) |
| 610mm x 550mm x 960mm (sewing head) | |
| Packing Dimension | 1600mm x 1170mm x 1150mm (conveyor) |
| 960mm x 910mm x 1380mm (sewing head) | |
| N.W. / G.W. | 285kgs / 320kgs |
Average Rating: 0
| Description | Quantity | |
 |
Silicon Edge Sewing Machine Standard with 1.5m Conveyor Needle Seperation 1/4 (6.35mm) |
1 set |
 |
Extra parts for double curling(1cm) | 1 pc |
 |
Extra parts for double curling(5cm) | 1 pc |
 |
Needle(#18) 10pcs/pack | 2 packs |
 |
Silicon Oil | 1 pc |
 |
Lube Oil | 1 pc |
 |
Thread | 4 rolls |
 |
Accessories to change parts | 1 set |
 |

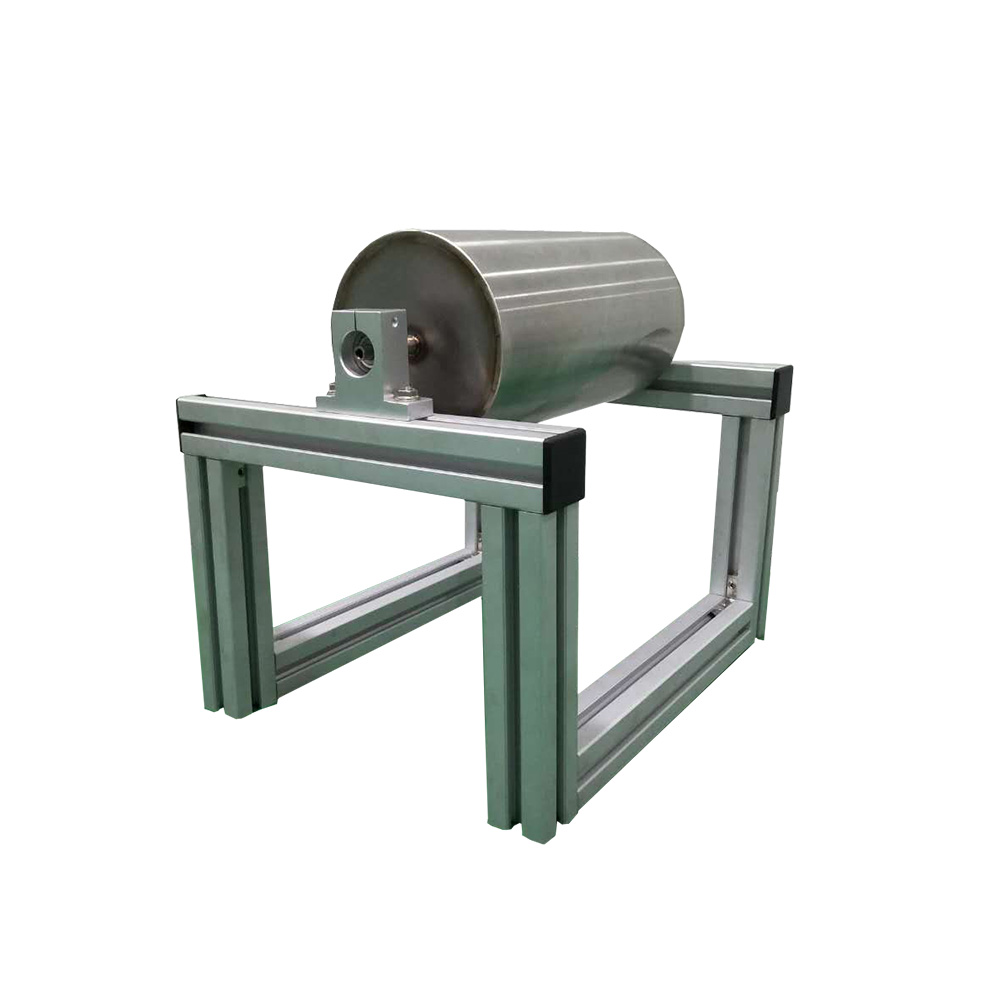

Rack for silicon edge, Diameter 45cm(17.7") x Height 25cm (9.84") | 1 set |
How to Operate Multifunctional Silicon Edge Sewing Machine for Banners
