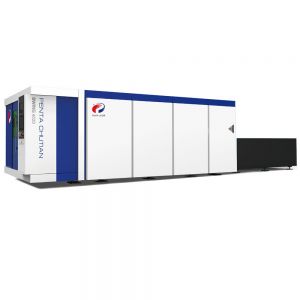

4000*2000mm SWING Series Fiber Laser Cutting Machine (ItalianTechnology)

Unit Price:$262,938.00/set(Discount Notice)

Get Coupon: $500Order ≥ $4999 $200Order ≥ $1999 $100Order ≥ $999 $50Order ≥ $499 $30Order ≥ $299 $10Order ≥ $100

Quantity:
set(s) Total Cost: USD $262,938.00

Shipping Weight: 48400.0lb (22000kg) freightFreight

Order Now Add to Cart Inquire Now

Buyer Protection

Your are Viewing: Price : $262,938.00/set Order Now
Cart 0 item(s) Back to Top

4000*2000mm SWING Series Fiber Laser Cutting Machine (Italian Technology)
Feature:
Intelligent Cutting Head
Origninally imported from Italy/Germany;
Capacitive sensor, automatically align the sheet;
Auto focus, no focus readjustment needed while changing sheet.
Smart piercing, 2-3 times faster on thick material;
Piecing detection function,thus cutting process can start immediately without any extra waiting time.

CNC Control
New Z32 real time CNC system, with dynamic and geometric JERK control
Remote assistance
Power modulation for the ultimate cutting quality in the corners
Z axis following
Automatically choosing gas type and pressure(N2, O2, Air)
Auto restart procedure
μS level responding time on motor and better synchronicity.

High synchronous servo motors

whose control response time reaches nanosecond level and synchronicity is 1000 times higher than the ordinary machine tools. Compared with the traditional interface control, MechatroLink control mode responses faster and has stronger anti-jamming capability, which guarantees the synchronicity of machine tool and the stability of running at high speed and greatly improved the working life of machine tool and servo motors.

Design and manufacture of high precision machine tools
Heat treatment & thermal protection and automatic lubricating device reduce the heat absorption of machine tools, guarantee the precision of the machine in long running and prolong the service life. 8~20 separate suction design.

Application:
High speed cutting for moderately thin sheet and widely used in fields of light-fixture, kitchen ware, stainless steeldecorative materials, case and cabinet etc.

Cutting Sample

1. I don’t know this website well, how can I trust you?
2. Not clear about the Price Policy of Sign-in-Global.com?
3. How to pay? Can I use credit card?
4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
This product has no attributes!

Specification:

Model

SWING 4020

Table Travel

4000mm*2000mm

Accuracy(VDI 3441)

±0.05mm/m

Mechanical Repeatability

±0.03mm

Rapid Speed

120m/min

Maximum Acceleration

1.1G

Laser Power Option

2000W/3000W/4000W/6000W

Laser Source Option

IPG/Raycus
