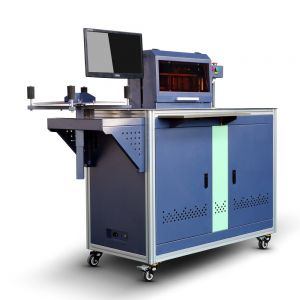

A13CSW Automatic CNC Metal Channel Letter Bender Machine



Specification
Feeding System Circulating clamping feeding system
Notching System Plane cutter and alloy milling cutter double cutters slotted system
Bending System Double blade alternate bending system
Applicable Materials Stainless steel, Galvanized steel, Aluminum plate
Material Height 20mm ~ 125mm (0.79in-4.9in)
Material Thickness Stainless steel, galvanized steel, aluminium≤1.2mm (0.0472in)
Size Accuracy ±0.1mm
Docs Formats .dxf
Power AC220V, 50Hz, 3KW
Machine Dimension 2571mm x 800mm x 1550mm (101in x 31.5in x 61in)
Packing Size 1570mm x 870mm x 1770mm (62in x 34in x 70in)
Air Source 0.6sqm / min
Machine Weight 480kg (1056lbs)
Gross Weight 550KG (1210lbs)

Features:

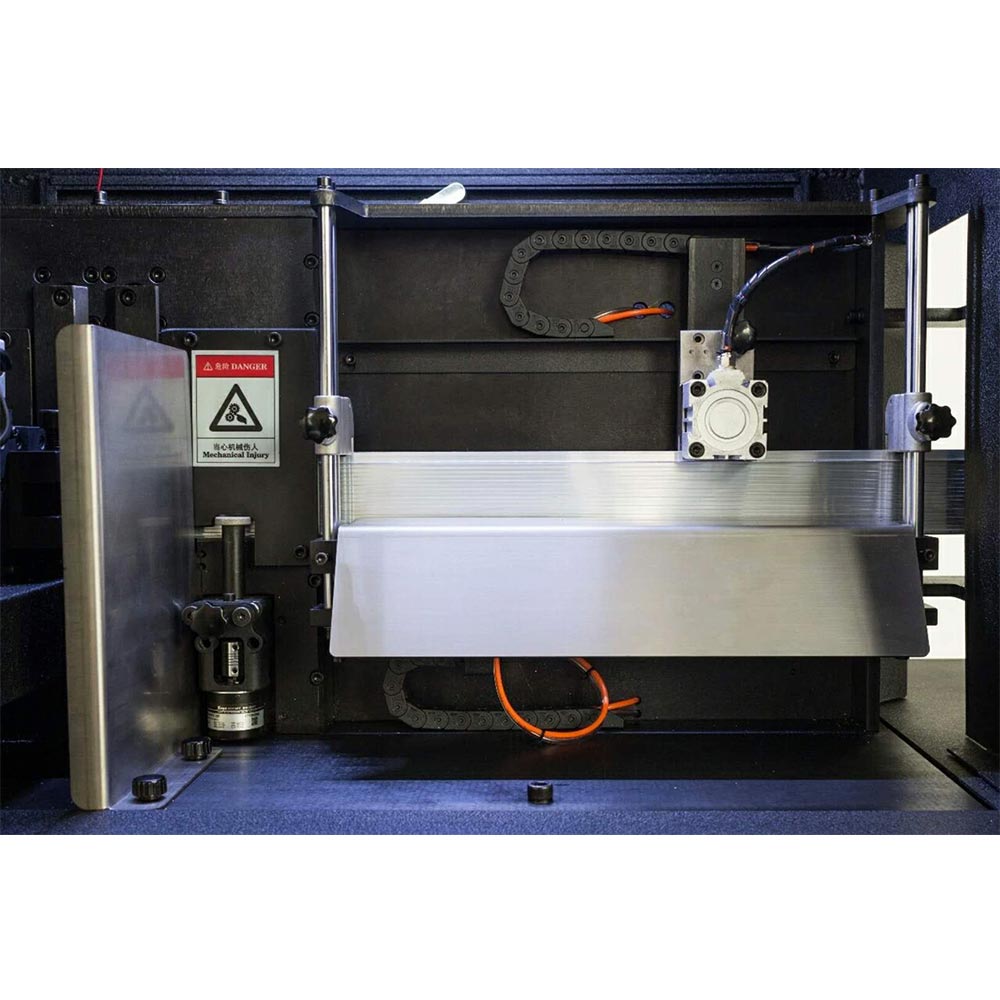

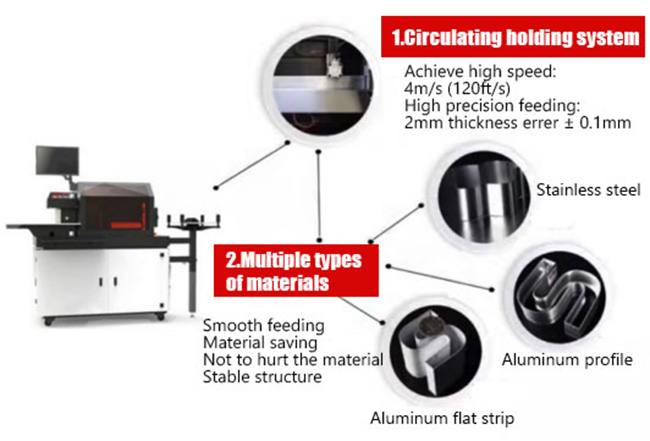

1.Circulating clamping feeding system
With the mechanic-hand circulatory clamping feeding design, servo motor, high quality ball guide screw and straight guide way, it makes the feeding stable and doesn’t deform materials. Plus length coder and closed-loop control, it fabricates a perfect match for the workpieces from its original source files.

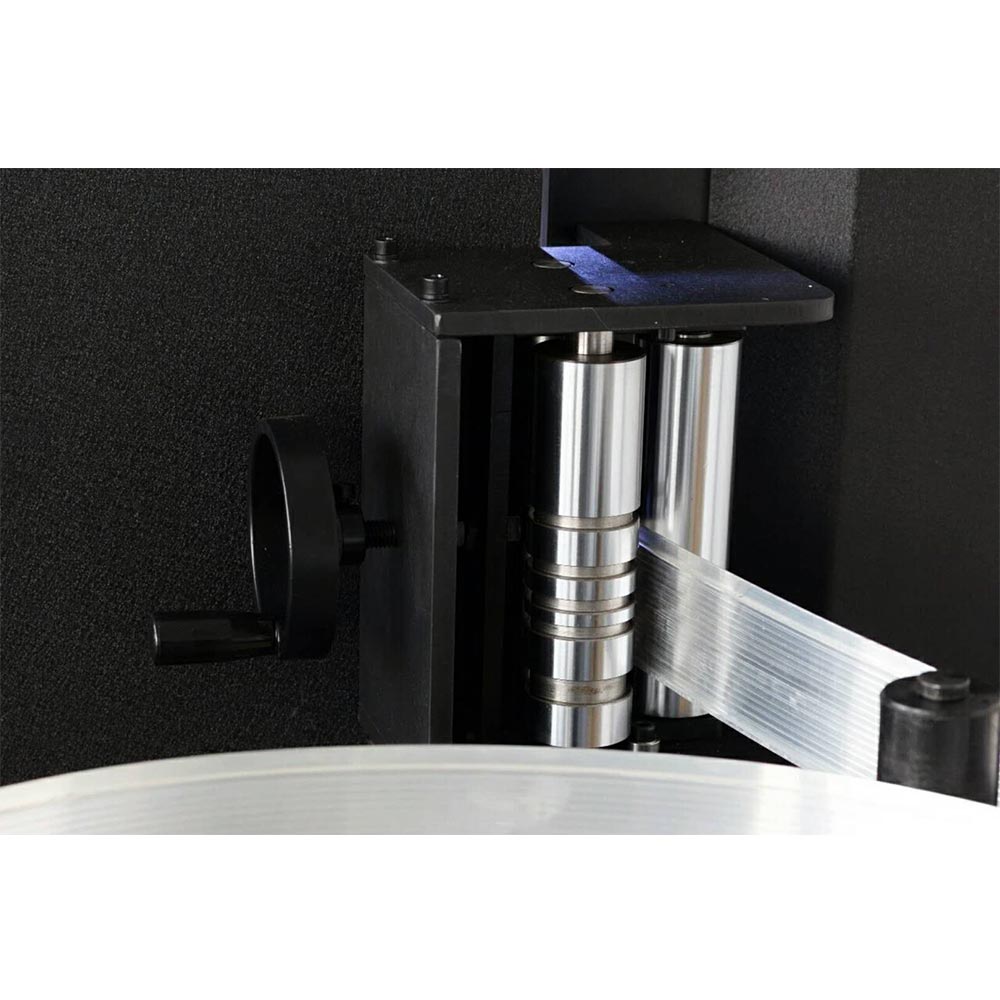

2.Material Guide Rollers
For the problems of existed deformations on materials, it is equipped the multiple guide rollers system which can be adjusted according to material thickness. It will guide the material before processing that makes the product quality improved.

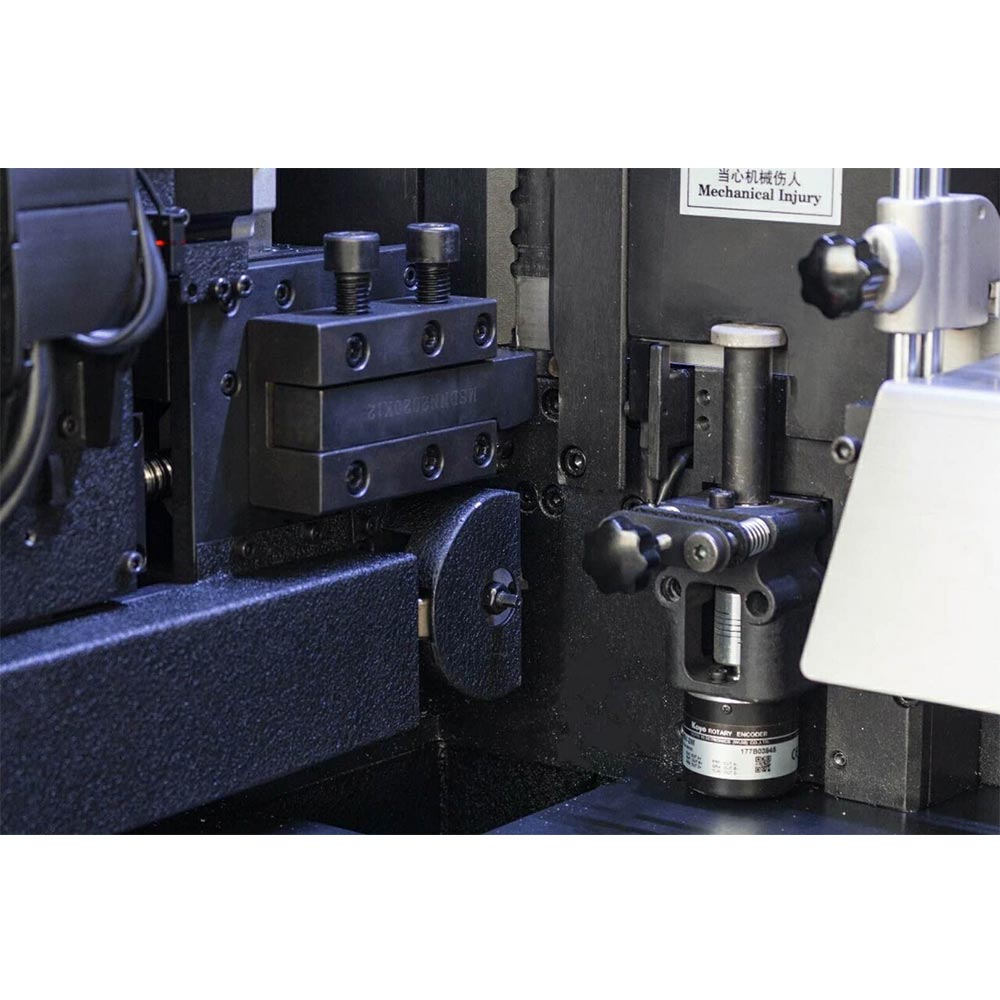

3.Planer & Milling Bits,Two Tools Notching System

With the configuration of planer & milling bit, it adopts the planer for stainless steel galvanized sheets while the bigger angled alloy bit for aluminum material and aluminum plates.4.Bending System with Two-type Alternative Bits
The two-type bits alternated bending system, it will use a corresponding bit automatically for bending as per the fabrication form inner and outer arc of the file. During changing, the opposite tool will be put back into bit chamber so that to avoid the bending tool touch the corners been cut. It is super good for small arc and small angled section forms. Comparing with similar machines, this one is capable to process section steel, and no need to change parts for both sheet and section steel materials.

Application:

Packing:

Our Factory:

Details:
Core Rod Casting





Core Parts











1. I don’t know this website well, how can I trust you?
2. Not clear about the Price Policy of Sign-in-Global.com?
3. How to pay? Can I use credit card?
4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
Notching No
Scope of Application Stainless Steel Channel Letter,Aluminum Channel letter
Flanging -No-

A13CSW Automatic CNC Metal Channel Letter Bender Machine

Specification
Model MBM-JY-A13CSW
Feeding System Circulating clamping feeding system
Notching System Plane cutter and alloy milling cutter double cutters slotted system
Bending System Double blade alternate bending system
Applicable Materials Stainless steel, Galvanized steel, Aluminum plate
Material Height 20mm ~ 125mm (0.79in-4.9in)
Material Thickness Stainless steel, galvanized steel, auminum≤1.2mm (0.0472in)
Size Accuracy ±0.1mm
Docs Formats .dxf
Machine Dimension
Packing Size
2571mm x 800mm x 1550mm (101in x 31.5in x 61in)
1570mm x 870mm x 1770mm (62in x 34in x 70in)
Power AC220V, 50Hz, 3KW
Air Source 0.6sqm / min
Machine Weight
Gross Weight
480kg (1056lbs) / 550KG (1210lbs)



Love it! Rate it!
  • Simply write a review of a product and you can get up to 500 Points (Equivalent to $5) for Next Orders.
  • ≥ 120 words + ≥ 3 clear photos = Up to 1000 Points (Equivalent to $10).
  • Show us why you love or how to use the product. Help other shoppers find the right product!
Average Rating: 0

Wooden Box: There are total one wooden box.
Machine Size: 2571mm x 800mm x 1550mm (101in x 31.5in x 61in)
Packing Size:1570mm x 870mm x 1770mm (62in x 34in x 70in)
Neight Weight: 480kg (1056lbs)
Gross Weight: 550KG (1210lbs)



Automatic CNC Metal Channel Letter Bender Machine Operation Demo
