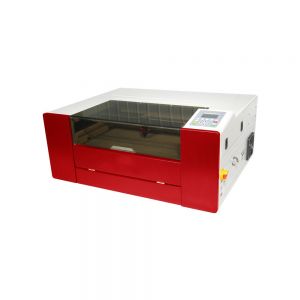

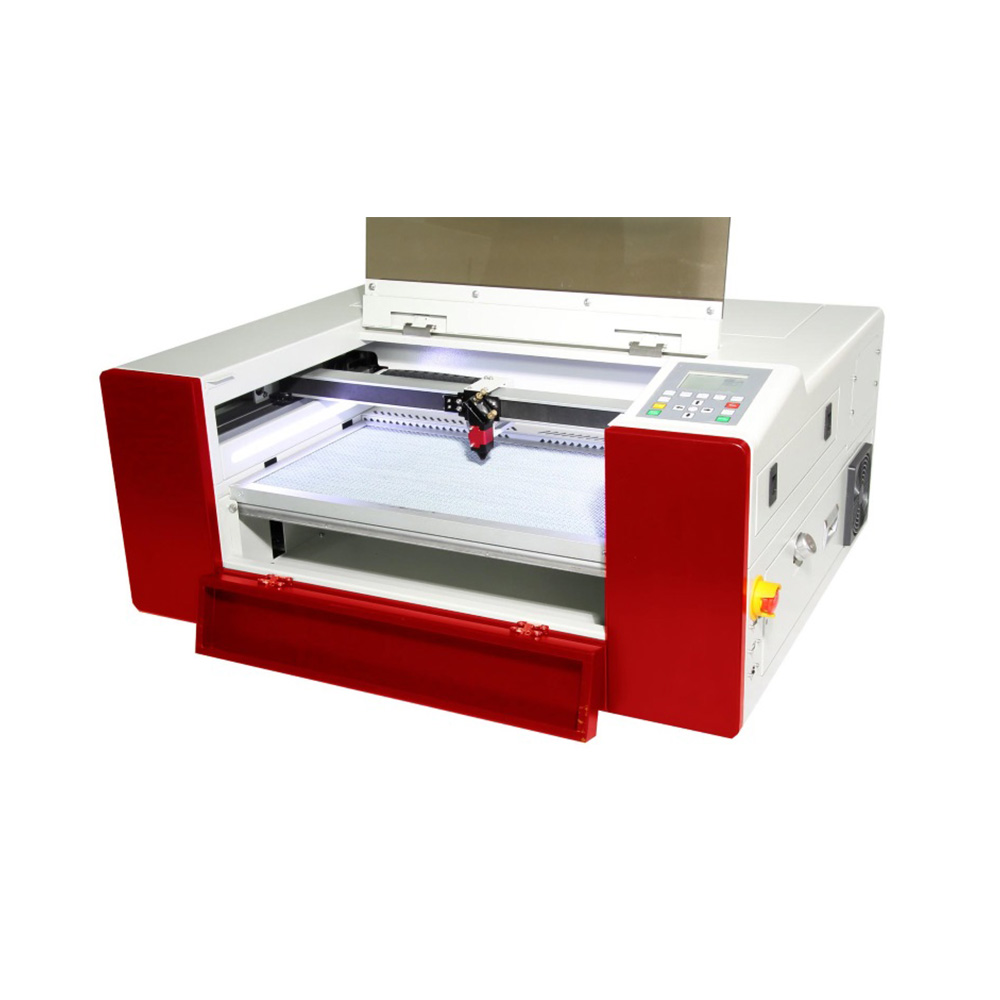

E-5030 CO2 Laser Cutting and Engraving Machine

E-5030 CO2 Laser Cutting and Engraving Machine

Description:
The E-5030 CO2 laser machine offer a portable desktop solution for high quality cutting and engraving of acrylics, cardboard, wood, textiles, two-color sign laminate, stones and much more. Our machines are the most robust, accurate, and reliable on the market.

Product Specification
Laser Power: 40W / 30W (optional)
Power Supply: AC 110V, 60Hz / AC 220V, 50Hz
Working Size: 0.5mx0.3mx0.12m
Product Size: 0.9mx0.7mx0.4m
Working Table: Lifting Table
Cooling Type: Water Cooling
Working Type: Cutting Engraving
Max Cutting Speed: 40m/min
Resolution Ratio: 1000DPI
Location Precision : 0.03mm
Laser Wavelength: 10.6um
Package: Wooden Case
Packing Size: 930mm x 715mm x 420mm
GW: 150kg
Software: EAGLE software
System Environment: AutoCAD CorelDraw Photoshop CAXA
Graphic Format: Supported CAD DST DSB BMP JPG GIF

Product Features
LCD display which is used for water temperature monitoring.
Corel Draw Software: Has the ability of both Newly Seal and Newly Draw and so it can be employed in both carving and cutting works.
Mainboard and chip: Adopt Japan imported which can control the engraving more precise.
Bearing: Adopt Germany imported and high accuracy stepping belt which not only make the engraving more precise, also make the machine life time twice to three times than ordinary CO2 laser engraver.
The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.
Built the heat dispersed fan to reduce all electronic component's temperature. Thus lengthen electronic component's life and the higher technical volatility.
This machine supports any kind of model printer, the scanner. Be compatible with TIF international standard fonts and BMP/JPG/JPEG/WMF/EMF/PLT.
Computer system: Window 7,Window 8, Window XP.  APPLE system not applicable.
The Ampere meter and the Regulating Switch is Change to Digital Control Panel, and the Regulating Precision is Reach to 0.1%.

Product Details
1.Small space requirements and DIY applications

You can easily put it on a desk or somewhere you like. It can be used for DIY, Gift making, creative competition, model cutting.

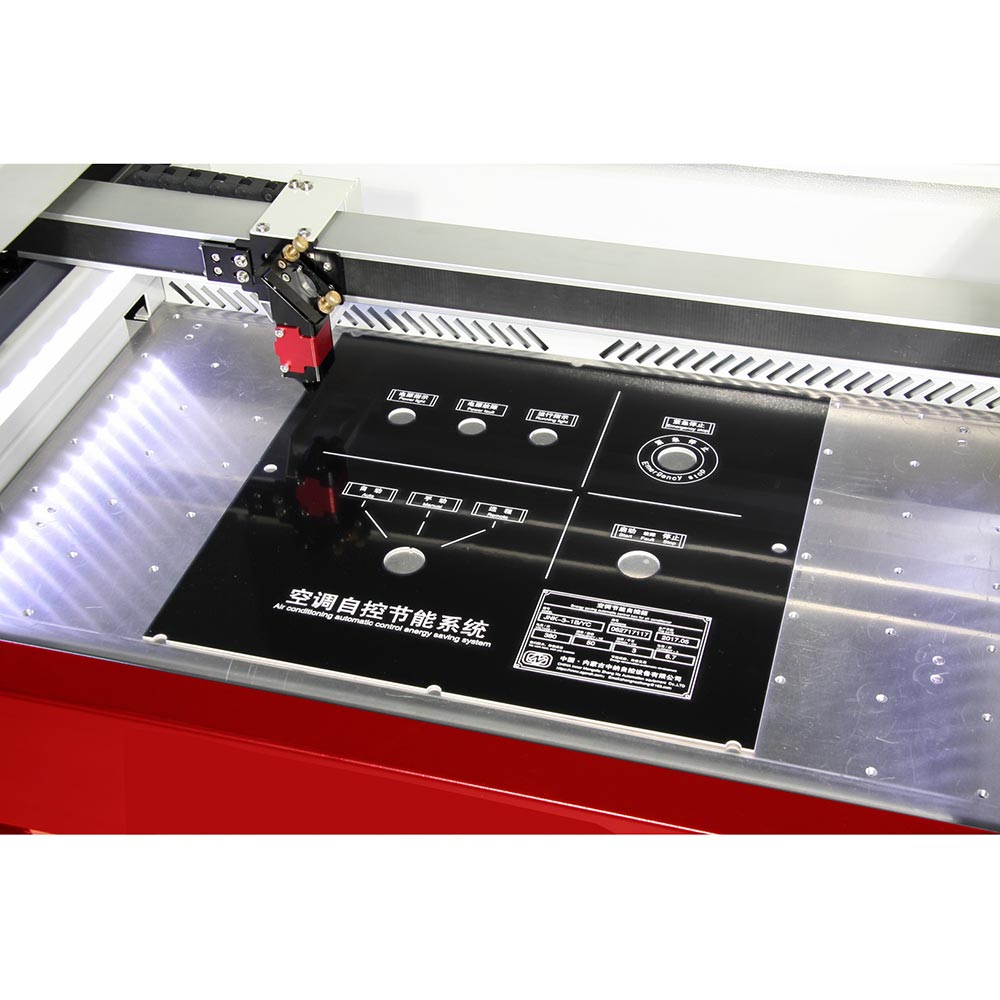

2.Choice of Support Tables
We provide both a full-support honeycomb table suitable for soft material processing (paper and textiles), and an aluminum plate table for hard and flammable materials (acrylic, cardboard, wood, etc.) The working table of the E-5030 features powered up and down movement, to accommodate abnormally shaped work pieces or an optional rotary unit for use with pipe and rod stock.

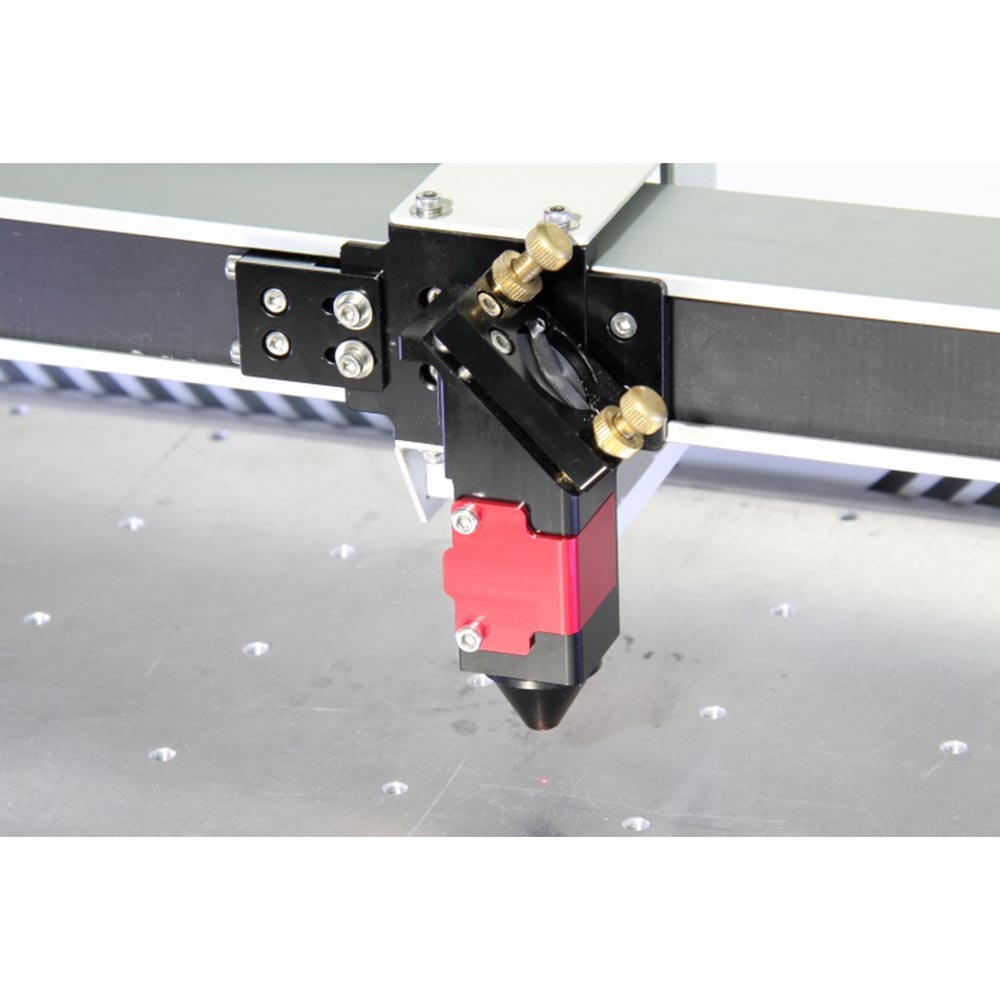

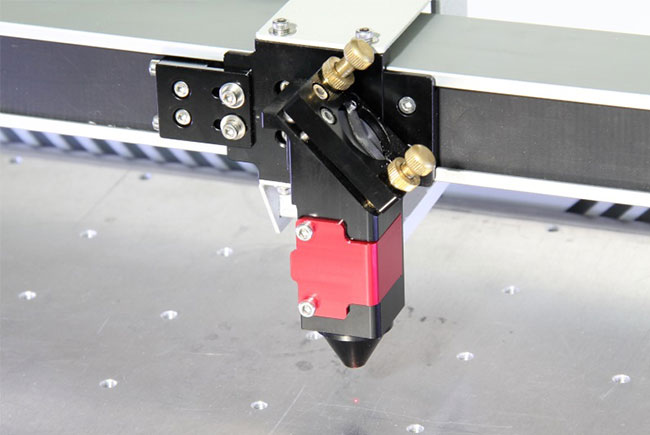

3.Air Assist Mechanism
The laser head includes an air assist assembly. A constant stream of compressed air protects the lens from dust or cutting vapor, and sweeps the cutting surface, reducing the possibility of flaming, scorching, or charring when cutting materials such as acrylic or wood.

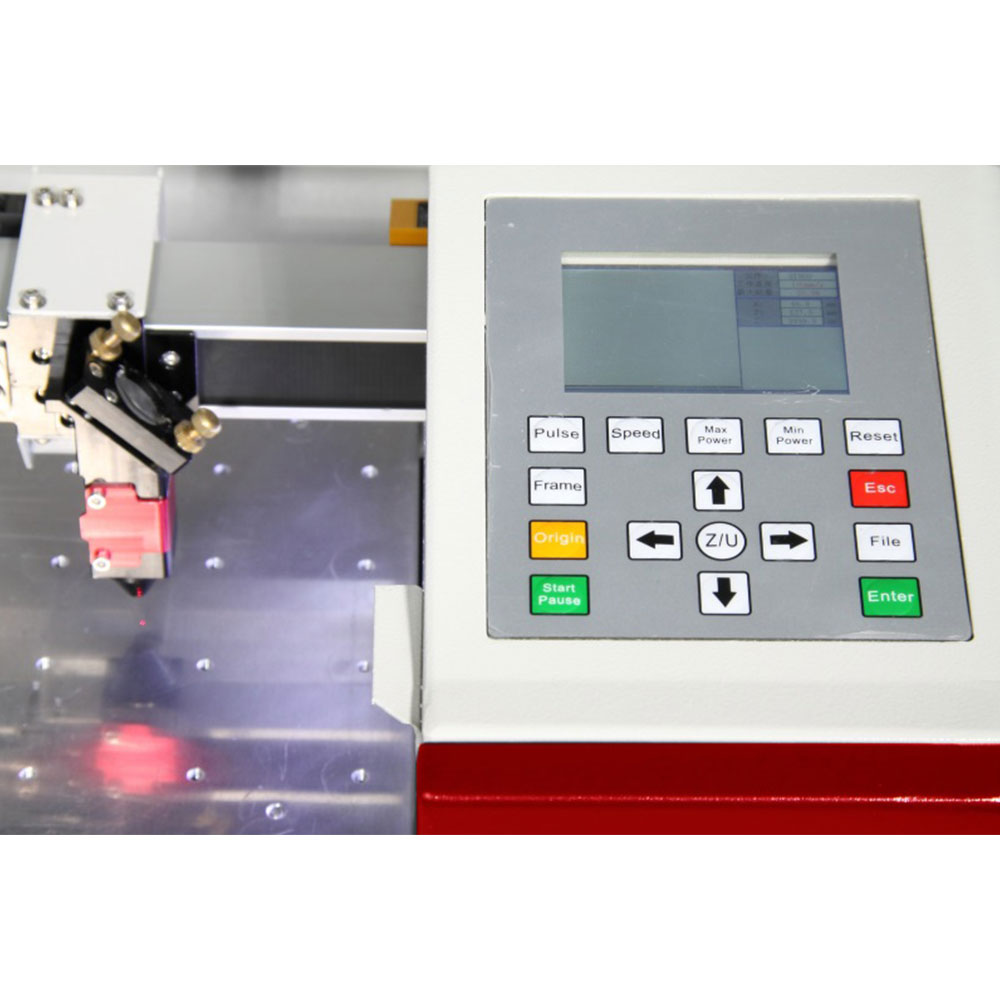

4.Front Panel Display and Controls

The machine is equipped with a high performance control system with a user-friendly interactive panel. The high-resolution, true color TFT LCD panel lets you preview machine status and job details before processing. You can adjust parameters for different materials, or even run a processing simulation on the panel. While processing, you will see real-time status information on the panel, and you can adjust parameters on the fly according to the results you are seeing.
5.Design and Machine Control Software
We supply your machine with Eagle Works, a complete software solution for creating, editing, optimizing, and processing patterns for cutting and engraving. You can import a design from your favorite CAD or illustration program, or create an original design with the Eagle Works software. Then you can adjust the cutting/engraving order, specify the layout within the processing area of the machine, run a processing simulation, and finally control the machine directly from inside the software running on your PC.
6.Print Driver

As an alternative to using the Eagle Works software, you can run the machine directly from within your favorite CAD or illustration program using our print driver. This software makes the laser machine look to your computer as if it were just another printer, to which you can “print” from any application, including AutoCAD, Adobe Illustrator, Photoshop, CorelDraw, etc.
When controlling the machine through the print driver, you use color and line thickness settings in the drawing to control the laser power (cutting vs. engraving) and the order of cutting. This allows you to easily combine cutting and engraving in a single job, for faster processing and more precise control of the laser.
Half-toned photographs and other images can be laser-engraved by “printing” directly from inside your favorite image editing software. When using software that supports both raster images and vector drawing (e.g. Adobe Illustrator, CorelDraw, etc.) a simple one-step Print command can do both cutting and engraving simultaneously.
We supply all the dust work needed to vent the machine to the outside. Just connect it all together and you are ready to run your first job! The E-5030 includes many high-end design elements that give our machines superior speed, accuracy, reliability and service life.

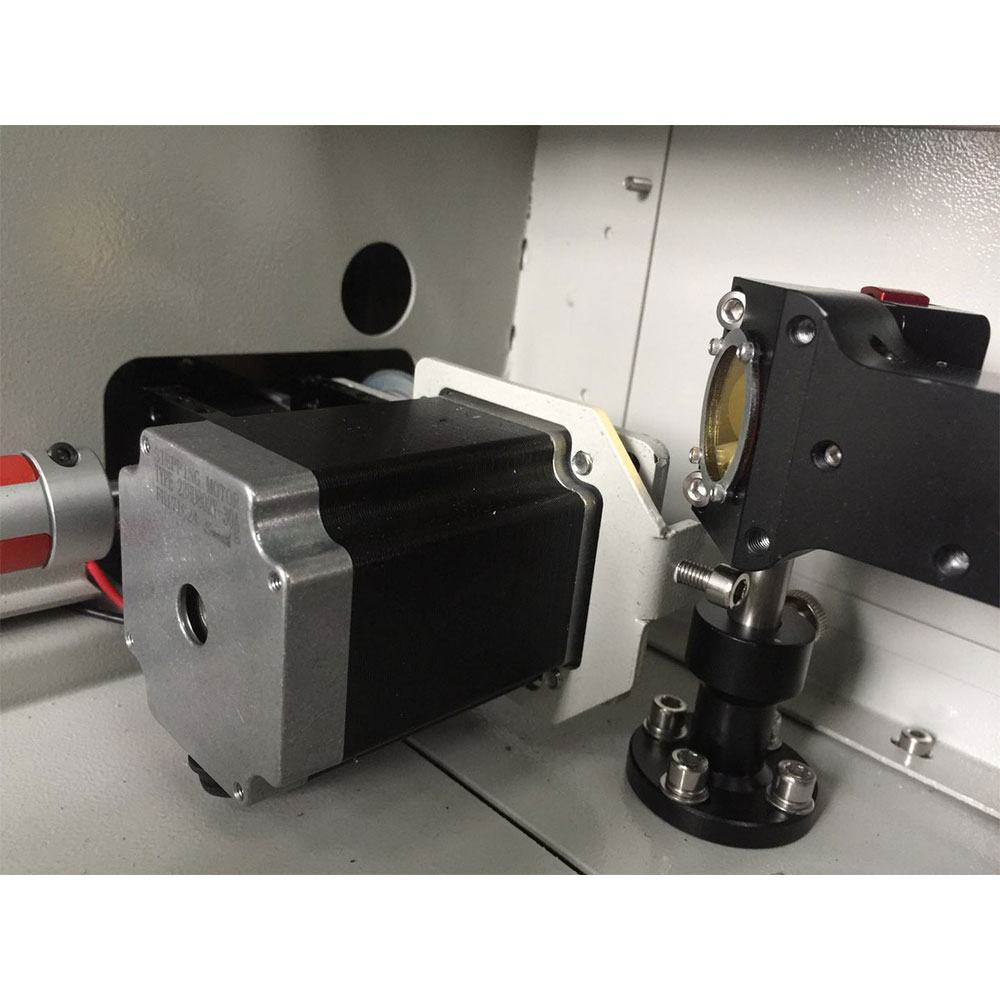

7.High Performance Motors

With stepper motors from world’s leading supplier, the laser head of the E-5030 can move very fast at extremely high resolution. A step size of just 6.35μm gives the machine a resolution of over 4000DPI. In arbitrary-direction cutting, the head can accelerate at 2 m/s2 (0.2G), while for X-axis scanning during engraving, acceleration up to 40 m/s2 (4G) is possible.
8.Robust, High-precision Slides
The linear bearings and slide rails used in the E-5030 are thicker and stronger than in competitive models, ensuring long-term stability of the laser path. That means less downtime, more productivity, and more profit.
9.Superior Laser Sources

This machine can be equipped with single 40W glass CO2 Laser Tube, with great cost performance ratio. If engraving is a large part of your work load, you can increase productivity and engraving consistency with our 30W RF metal tube laser. It will allow you to get more done in less time with unmatched engraving quality.
10.High Quality Optics

The E-5030 is equipped with top-quality, American-made optics, to provide a consistent laser beam across the entire working area. This allows the E-5030 to achieve industry-leading cutting and engraving quality.


Comprehensive guarantee for 2 years except the wearing parts
24 - hour technical support by email or calling
User - friendly English manual for machine using and maintaining
The resident technician in the United States, if any problem can be consulted at any time, can help service maintenance when necessary.
We have professional operation video for customers who can't come to the door. We can also provide technical staff video guidance.
