Description:

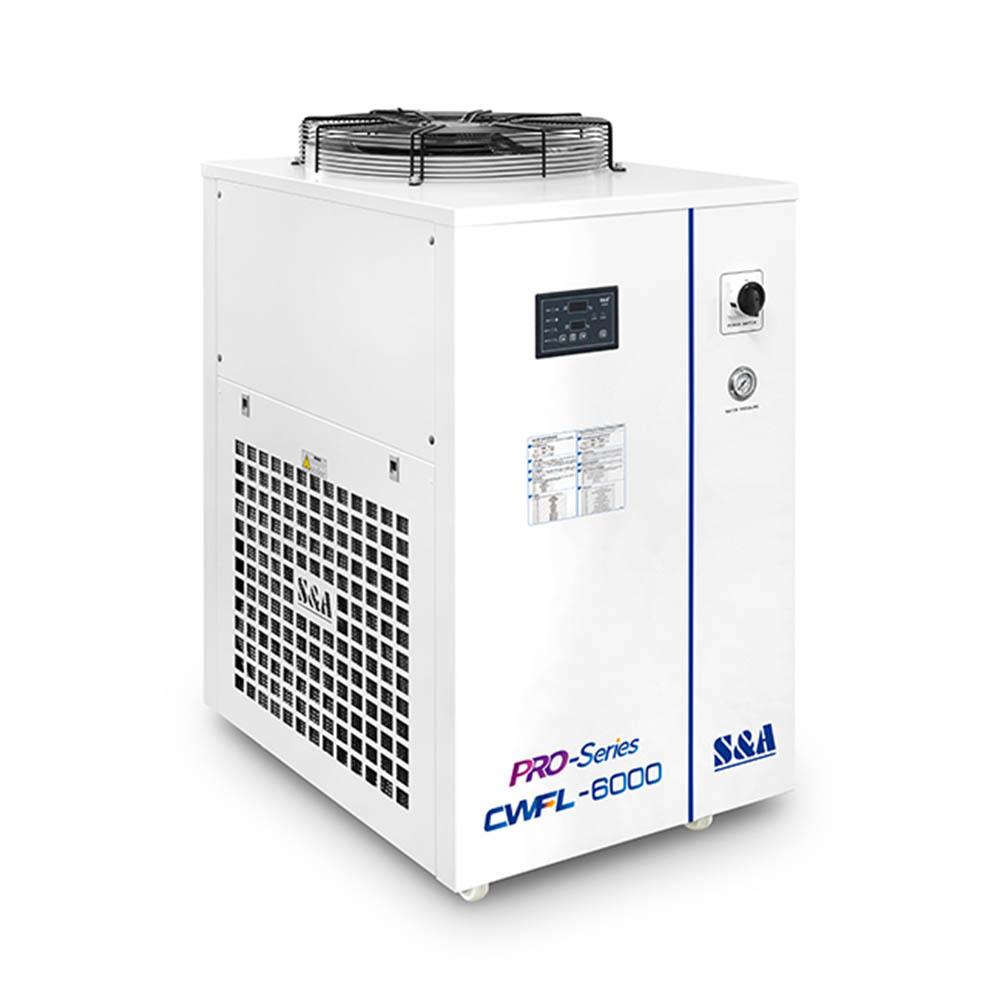

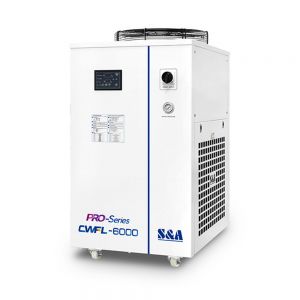

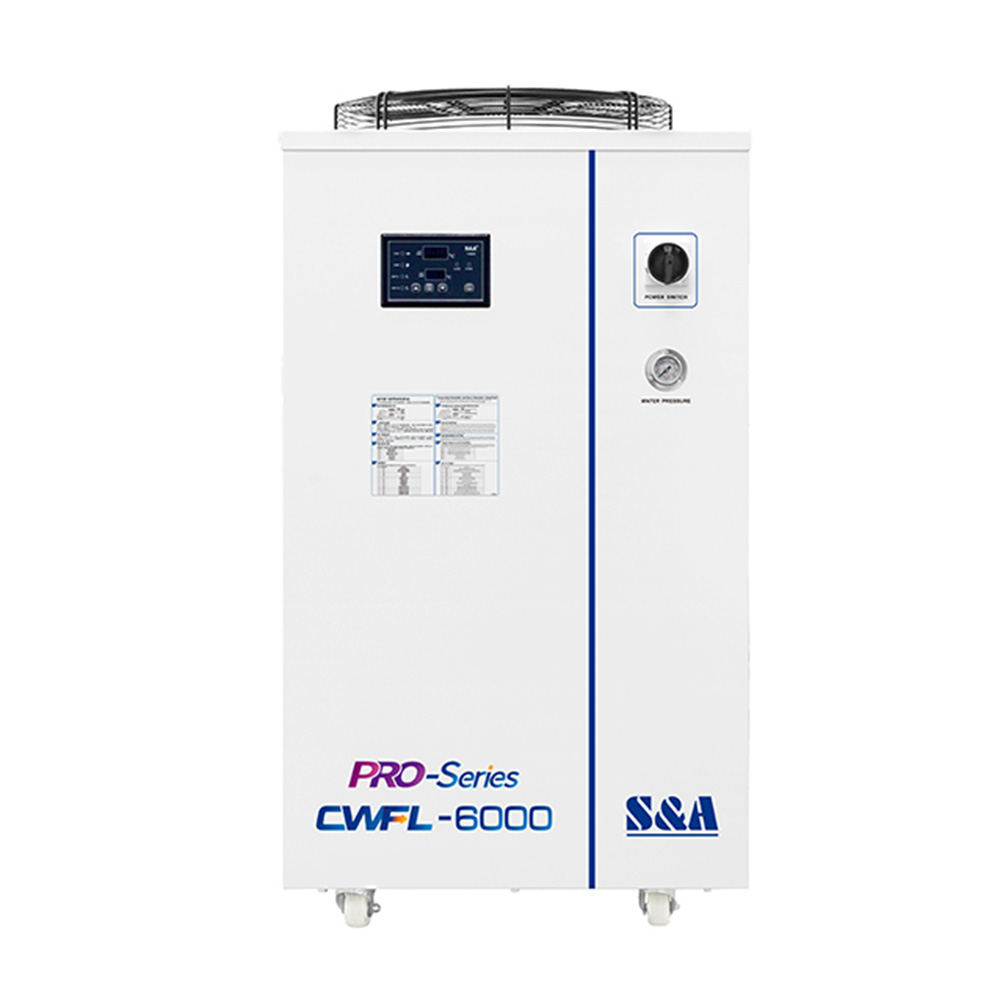

S&A Dual Temperature Cooled water chillers CWFL-6000FN For 6000W Fiber Laser(AC 3P 380V, 60Hz)
Industrial temperature control system CWFL-6000 comes with a dual refrigeration circuit. Each refrigeration circuit is working independently from the other. It is specially designed for fiber laser processes up to 6KW. Thanks to this brilliant circuit design, both the fiber laser and the optics can be perfectly cooled. Therefore, the laser output from the fiber laser processes can be more stable. The water temperature control range for this Water Chiller machine is 5°C ~35°C. Each of the chiller is tested under simulated load conditions at the factory before shipment and conforms to CE, RoHS and REACH standards. With Modbus-485 communication function, CWFL-6000 fiber laser chiller can communicate with the laser system very easily.
Features:
1. Dual cooling circuit
2. Active cooling
3. Temperature stability: ±1°C
4. Temperature control range: 5°C ~35°C
5. Refrigerant: R-407C
6. Intelligent digital control panel
7. Integrated alarm functions
8. Back mounted fill port and easy-to-read water level check
9. RS-485 Modbus communication function
10. High reliability, energy efficiency and durability.
Tips:
Make sure the refrigerant is filled before running the chiller.
Refrigerant is forbidden by express company, so we could not put it into the package.You can buy it locally and fill it out.
If the compressor of this chiller has not been filled with refrigerant.
Please make sure it has been filled correctly according to the Filling Requirements paper put in the Accessories box before running the chiller.
| Specification |
| Model |
CW-FL-6000FN |
| Voltage |
AC 3P 380V |
| Frequency |
60Hz |
| Current |
2.1~19.3A |
| Power consumption |
9.44kW |
| Heater power |
1000W+1800W |
| Refrigerant |
R-407C |
| Precision |
±0.1℃ |
| Reducer |
Capillary |
| Pump power |
1KW |
| Tank capacity |
70 L |
| Inlet and outlet |
Rp1/2”+Rp1” |
| Max. Pump pressure |
5.9bar |
| Rated flow |
2 L/min+50 L/min |
| N.W |
178Kgs (392.4lb) |
| G.W |
203Kgs (447.5lb) |
| Dimension |
41" x 28" x 52" (105cm x 71cm x 133cm) |
| Package dimension |
44.1" x 32.3" x 59" (1120 x 820 x 1500mm) |
PRODUCT INTRODUCTION
Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the optics.

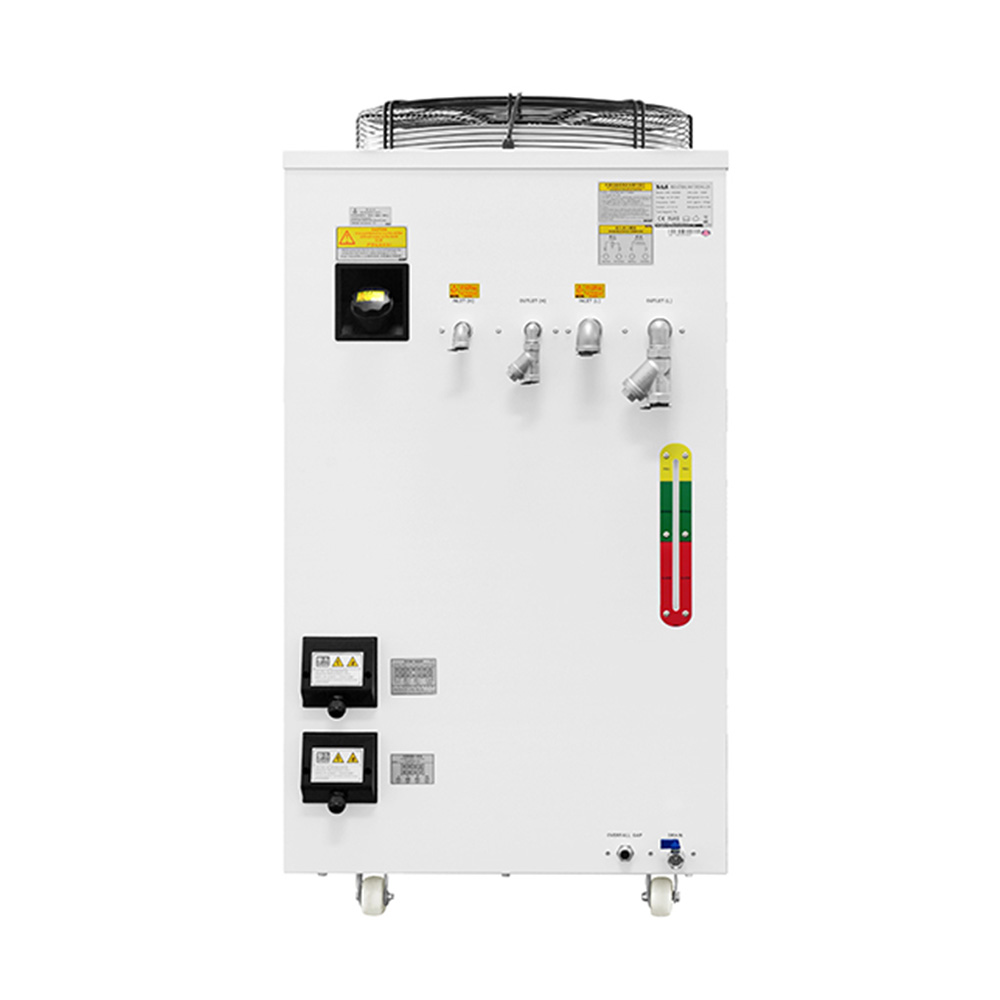

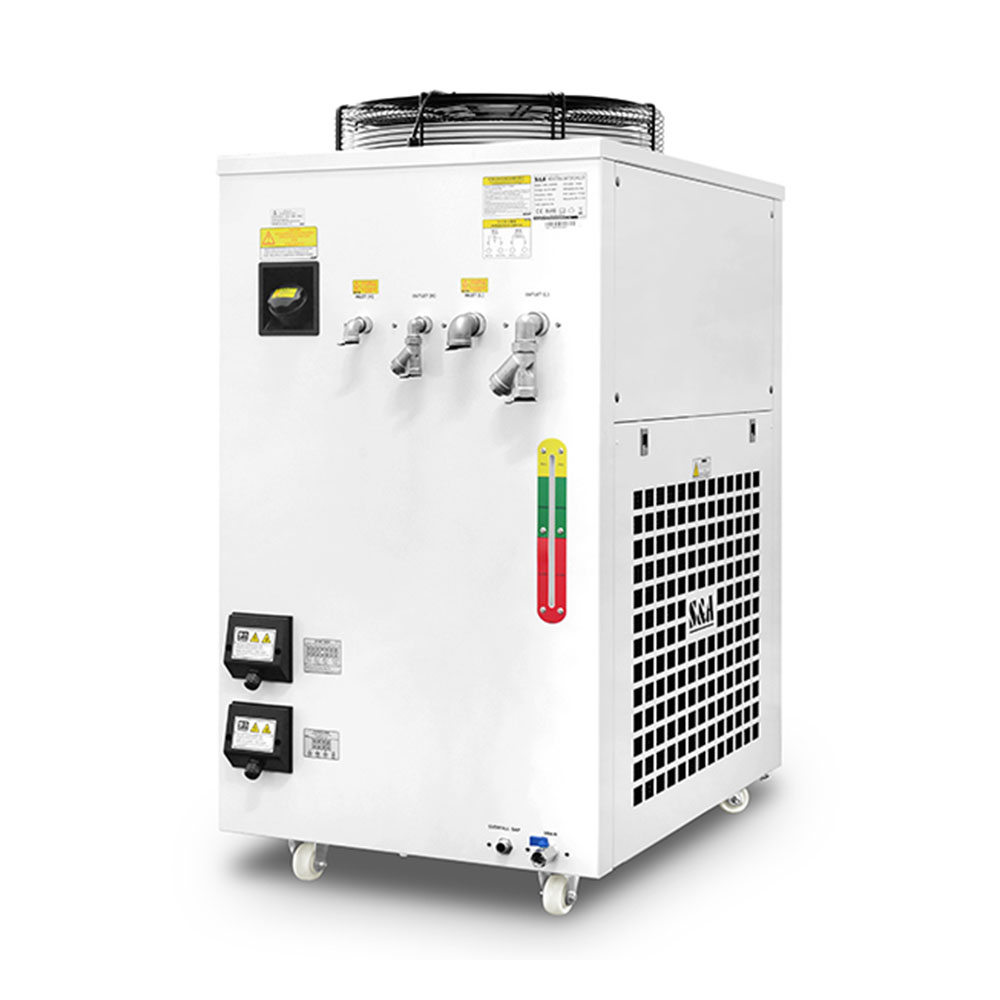

Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.
Caster wheels for easy mobility
Four caster wheels offer easy mobility and unmatched flexibility.
Level gauge equipped
Cooling fan of famous brand installed.
With high quality and low failure rate.
Customized dust gauze available and easy to take apart
