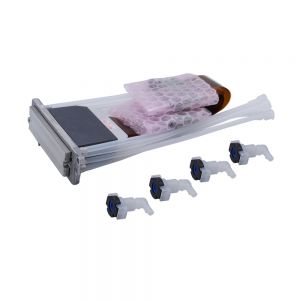

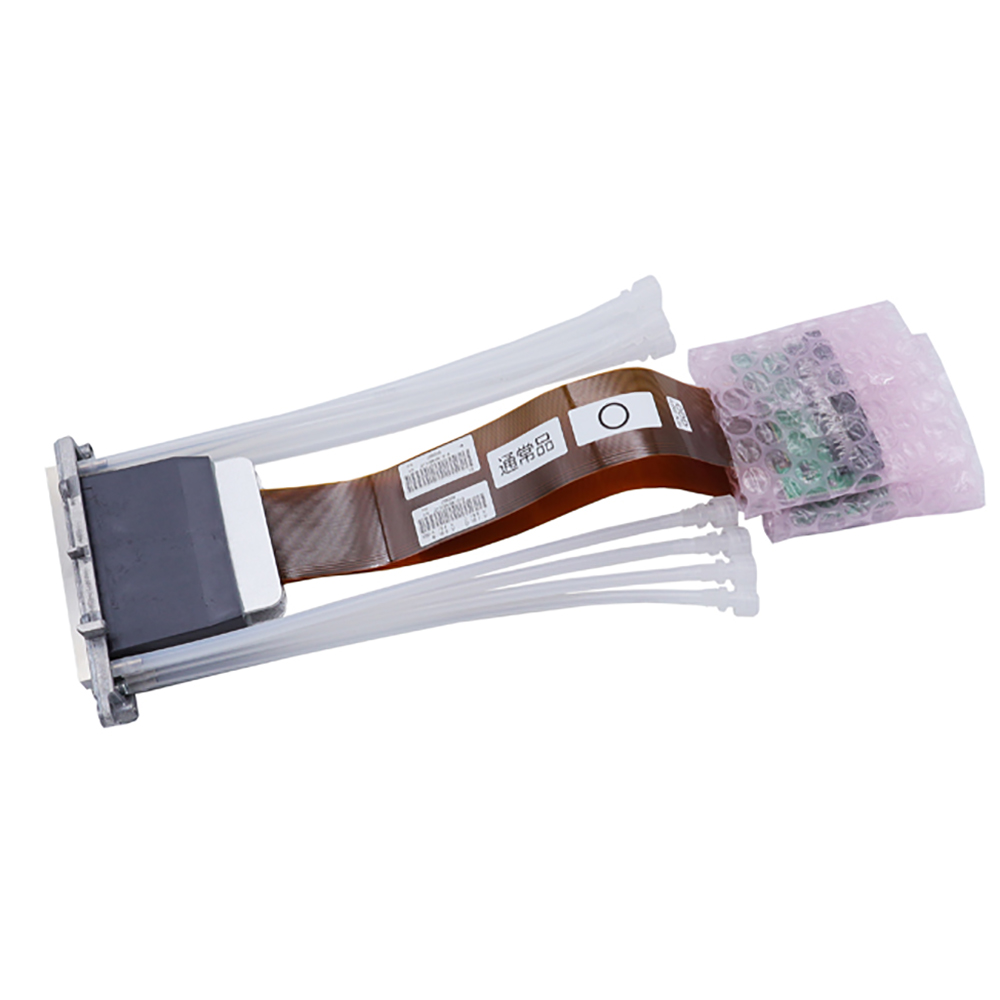

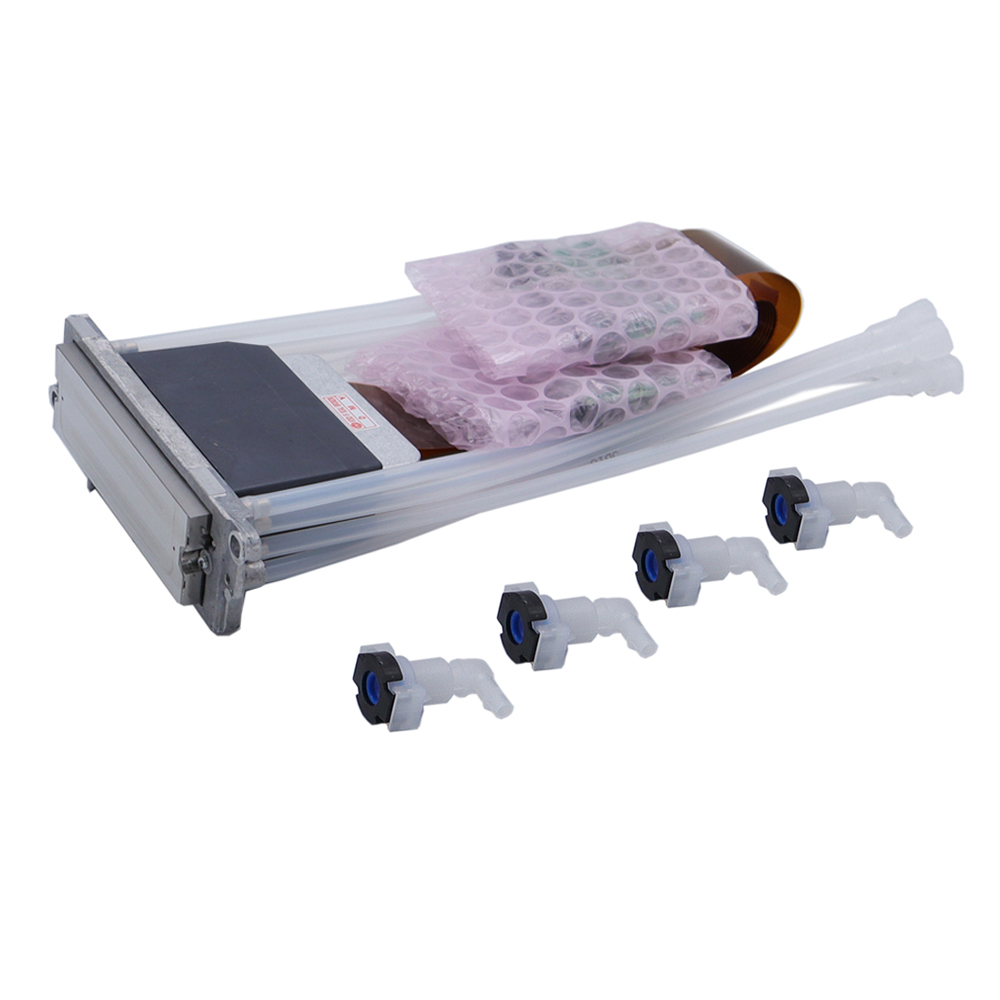

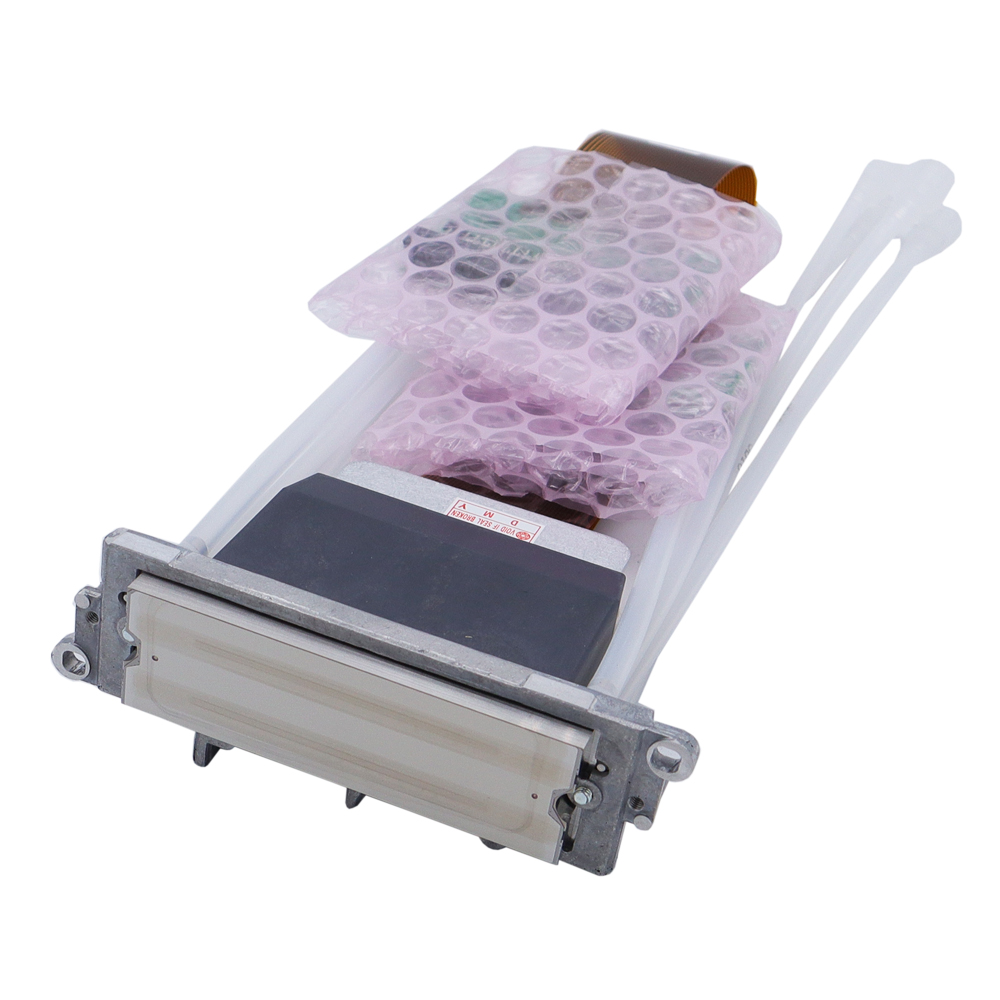

Mimaki TS500-1800 Gen5 Printhead Assy - M022653
This printhead is suitable for Mimaki TS500-1800 & TX500-1800 series printers.
Printer Compatibility: Mimaki TS500-1800 / TX500-1800B / TX500-1800DS
Part No.: M022653
Remarks: Original
Specifications:
|
Model
|
PRH-MIM-006
|
| Head materials | SST, Nickel alloy, Epoxy Adhesive |
| Number of nozzles | Four 320 nozzles |
| Nozzle spacing | 0.1693 mm |
| Nozzle density | up to 600 npi |
| Nozzle plate surface | Coated SST |
| Piezo type | D33 Stacked PZT |
| Native drop volume | 7 pl |
| Drop volume range | 7 - 35 pl |
| Drop velocity | 7 m/s |
| Jetting frequency | Up to 60 kHZ |
| Temperature control | Integrated Heater and Thermistor |
| Operator temperature range | Up to 80° C |
| Life | 100 billion actuations per nozzle |
| Dimensions | 89 x 25 x 69 mm (not include cables) |
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage. If there is any visible damage on the package, please refuse the shipment and call us at +86(10) 63705868 ext 607 or send email to info@sign-in-global.com
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
