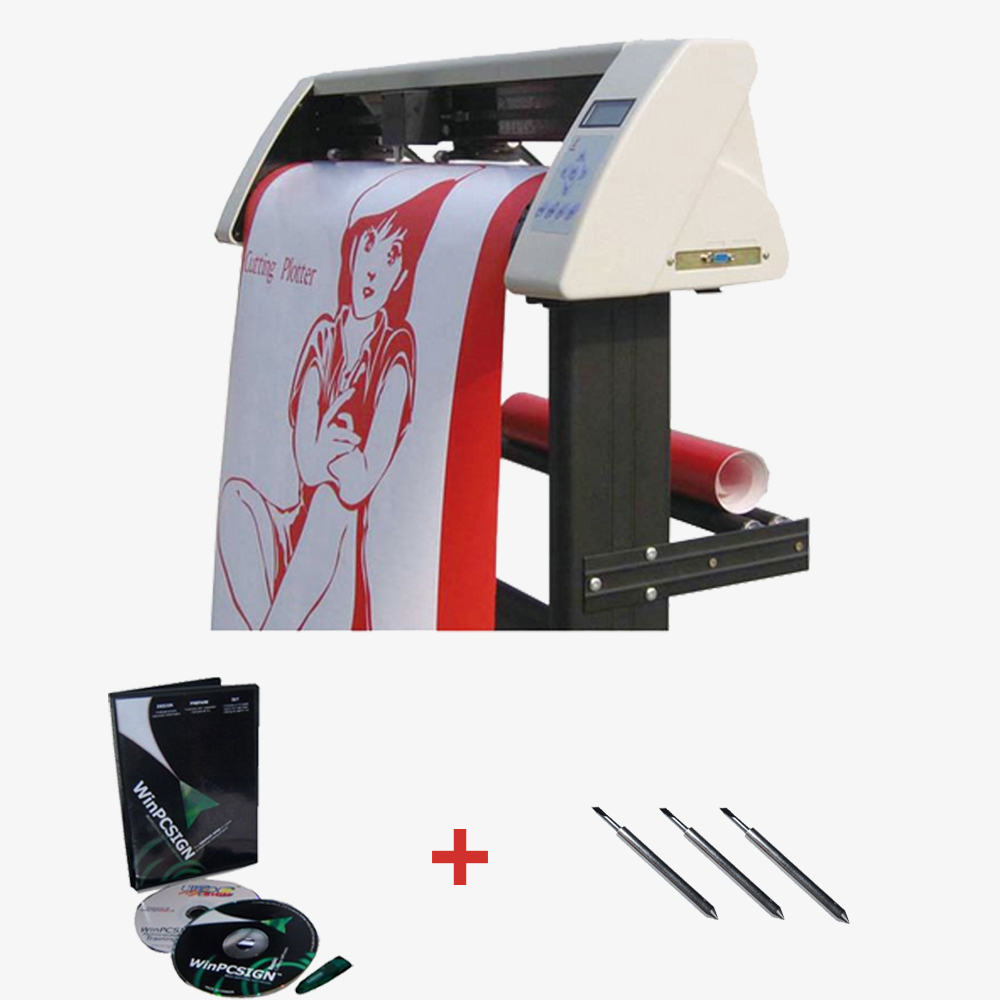

60" Redsail Vinyl Cutter Plotter with Contour Cut Function

Red optic sensor, register marks with "Cut" Support, cut plug-in for Corel DRAW.

With such a fast, accurate and versatile vinyl Cutter Plotter, you can contour cut most any media pre - printed - from your choice of inkjet, solvent based and laser printer.

WinPCSign plotting software (Match training CD)

Support CorelDraw output directly (But you need to buy a soft dog), please choose CutMate2.3 CorelDraw driver with softdog

This 60" vinyl cutting plotter has a contour cutting function and is used to cut all kinds of pictures, letters, and similar materials on self-adhesive vinyl, sticker. It is made in China and comes with two years warranty.Please choose contour cut function, WinPCSign 2009 Basic Plotting Software.

• Low cost and high performance machine for the manufacture of signaling.
• Controlled by RISC high-speed processor, a high speed cache.
• This 60" vinyl cutting plotter can regulate the pressure and speed numerically at real-time.
• This 60" vinyl cutting plotter supports CorelDraw files,  bringing great convenience to work.
• The cutting plotter is highly stable and has nearly no malfunctions.
• This 60" vinyl cutting plotter  has a stylish design and very solid support.
• The cutting plotter has LCD with a very accurate and simple English Menu, operated it by pressing buttons.
• The plotter’s pinch rollers are adjustable.

• Unique soft impact cutter
• This cutting plotter adopts the latest numerical technology, which creates a new concept of cutting.
• This 60" vinyl cutting plotter has a perfect output: there's no saw tooth even when using high speed.
• This 60" vinyl cutting plotter doesn't shake while cutting.
• The paper stays in place when using rolls of media.
• Save money for you.
• Smooth cutting
• It is very convenient and can be achieved fast.
• The cutting plotter is easy to operate.

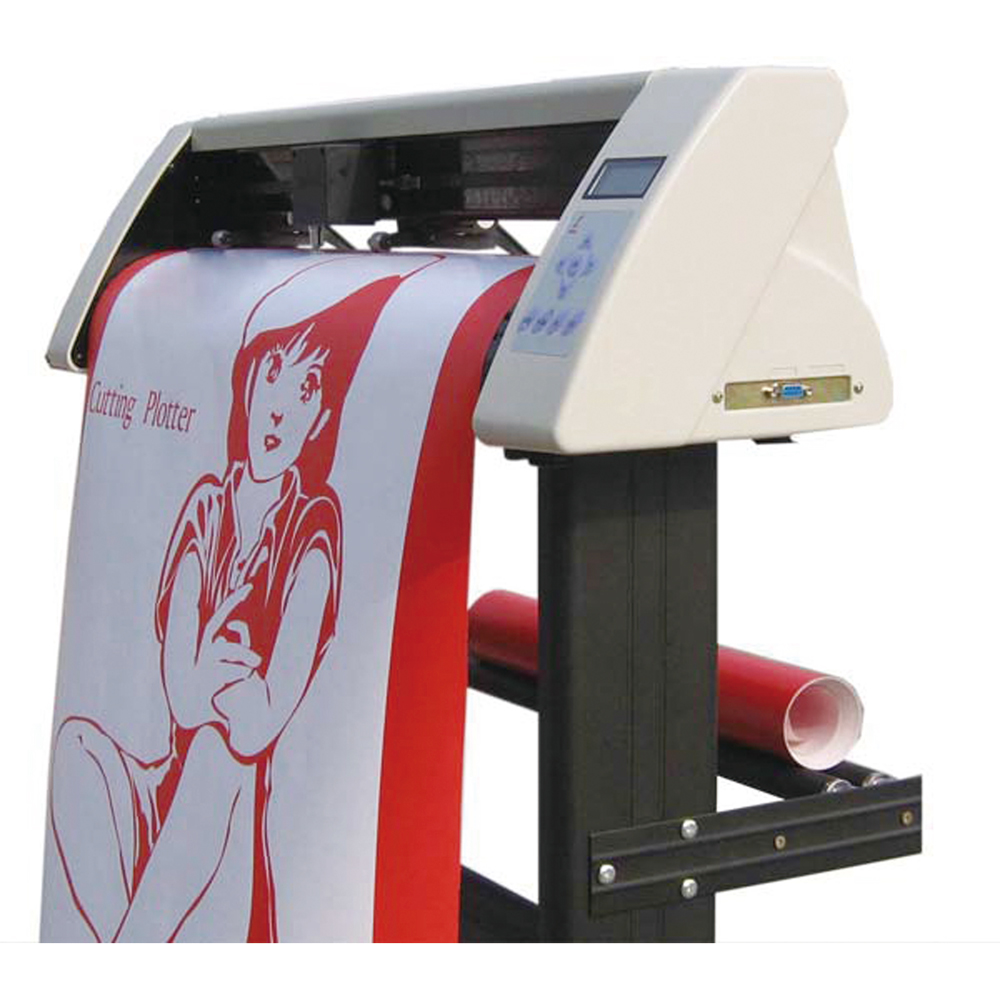

1.Protection of track                             2.Carriage

3.Pinch roller                                       4.LCD monitor

5.Keyboard panel                                 6.LED lamp

7.Right shell                                          8.Machine’s foot

9.Blade holder                                     10.Seat of blade holder

11.Left shell                                          12.Handle to control the roller

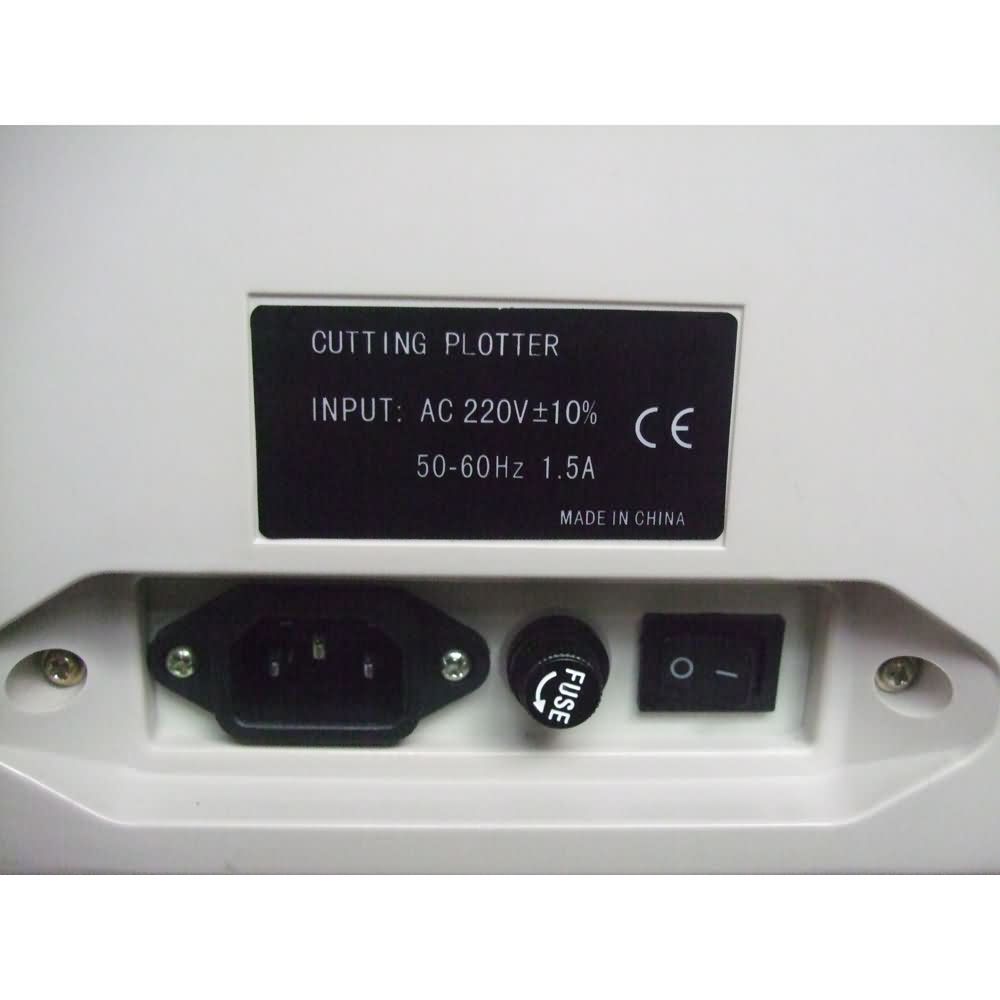

13.AC power port                                 14.Safe fuse

15.Power switch                                  16.RS232 port

Locknut holder's shell close screw blade

On the working state, the knife can rotate in holder very smoothly. In the first time you can screw the "close screw" off the "holder's shell", set the blade into bottom of holder, then close the "close screw" to avoid the knife falling out, let the knife peep out of the holder less than 0.5mm. When you want to change the blade, take out the old blade, change a new one, then close the" close screw", keep the blade peep out of the holder less than 0.5mm. (The locknut will not screw, usually).


Close screw Holder shell Plotting pen.

You can use usual ball pen as plotting pen; keep the ball pen peep out of the holder between 4mm and 5mm. the other using method is similar as blade's process; please try it yourself according to the blade's changing method.

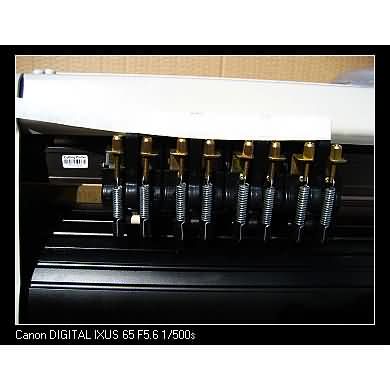

Double spring press paper holder, not distortion

Silica gel pinch roller, durable in use

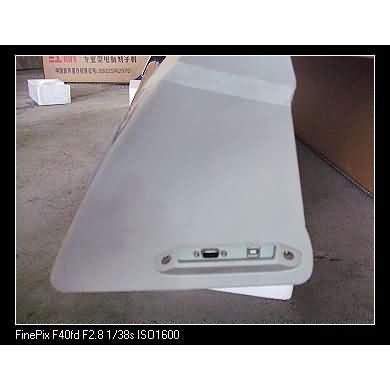

             LCD display control panel                       CE mark and power supply                                USB interface

1.Details Show:


2.Function Show:


The life of cutting knife Blade of Vinyl Cutter
The correct usage could prolong the life of blade.
(1)The more length the blade sharp extends out, the shorter life blade will work. So you should avoid cut through the paper.(2)The more Force, the blade life will get short.
(3)Trying to use small Force, when the blade edge is getting less sharp, you could add the working force suitable.
(4)Different brand blades will have different life.
(5)You should change the blade when you find the old one has no tartness, to avoid affecting the work badly.
 How to fix and setup the cutting knife Blade of vinyl cutter?
Turn off the plotter power.
Set the holder on holder's seat; close the screw of seat of holder.
Turn on the power, the carriage will move to right side; you can press "TEST" key to examine the plotter.

Remark:
A. You should keep the blade clean and don’t break the blade sharp.
B. The length out of the cover should be just a little bit, say 0.2mm around over the paper thickness which you will cut!

On the working state, the knife can rotate in holder very smoothly. In the first time you can screw the "close screw" off the "holder's shell", set the blade into bottom of holder, then close the "close screw" to avoid the knife falling out, let the knife peep out of the holder less than 0.5mm. When you want to change the blade, take out the old blade, change a new one, then close the" close screw", keep the blade peep out of the holder less than 0.5mm. (The locknut will not screw, usually).

How to load media?
Steps: Load media / Load paper:
When you move the roller, you must lift the handle first; the right roller will not move, usually.
Lift the handle, the roller will lift 1 - 2mm, and then you can load your media.
Laying down the handle, you can press "UP" key (S+) or "DOWN" key (S-) continuously, the paper will roll to front or back; please confirm the paper must move straightly during the distance that you want to cut.
Adjust the speed and pressure, and then you can output the data to the plotter.

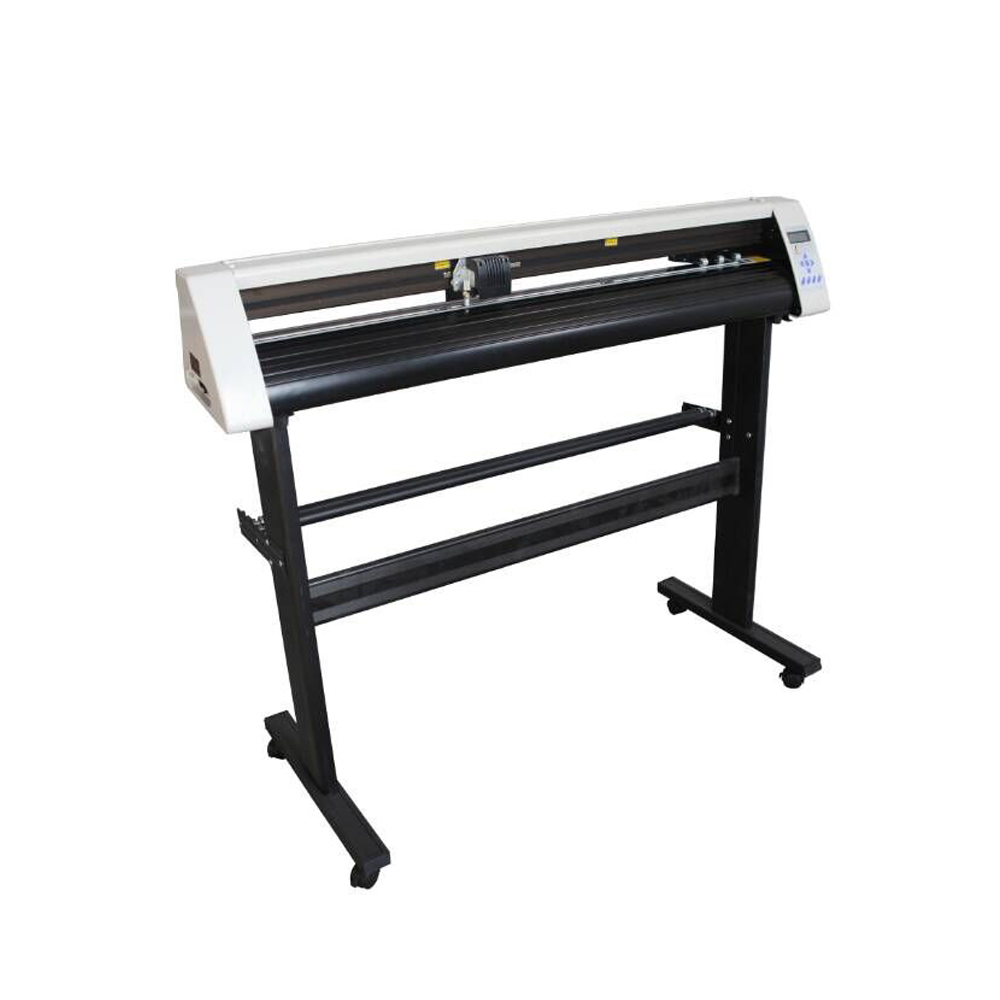

The structure of floor stand:

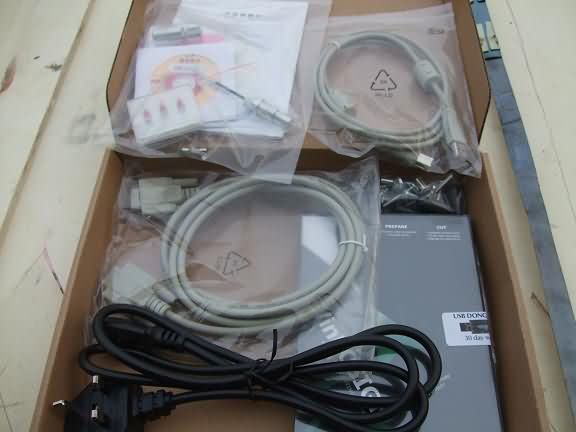

Details Pictures

(Remark: The hop-pocket is optional accessory)

Common Cutting Function

Contour Cutting Function

How to use this vinyl cutter to make personal T-shirts, sport clothes, uniform clothes, advertising shirts, color flags?

How to use this vinyl cutting machine to make contour cutting for heat transfer?


This cutting plotter is great for business usage; it is able to make any kind of design and it works faster and easier than other models. This machine can be used for Advertising production, Wall stickers, Post, Retro-reflective sheeting, Adhesive, Heat Transfer Film, Mobile phone sticker, CAD diagram, Dust cloth, banners, Display Board, Light box, stickers, glass decal, penaflex, vinyl decal, masking film for painting or etching, vinyl lettering, decorative scrapbook papers, card stock, stencils, magnetic sheets, etc. As well as all kinds of flexible heat transfer media like T-shirts, magic cut colored paper for garments, etc.






Quality report:

Comprehensive guarantee for one year except the wearing parts
24-hour technical support by email or calling
User-friendly English manual for machine using and maintaining

The guarantee period of the laser machine is one year, since the goods' arrival at Destination Port.
If there is standard part breaks with quality problem within warranty, buyer mail seller the broken part, seller will send a new part to buyer soon and guide buyer how to change it as has been taught in training.

Technical Supports
About Machines
• We have the professional after-sale services teams. We can provide the professional Training to our clients.
• In the training, we will teach them the general operation rule, maintenance method, and the solution of the general problems of the machines.
• During the working process of the laser machine in customer side, if there is any very difficult problems which the customers don't know how to solve, we will provide the corresponding solution to customers via telephone or internet (Such as e-mail, MSN, Skype).
• At the same, if the problems still can't be solved via telephone and internet, we will send our technical engineer to visit customer side to solve the problem directly according to the actual situation at that moment.

About Spare Parts
If the parts were broken during the guarantee period, we will provide a new part free of charge;   if the parts were broken during the guarantee period is expired; customer can buy a new one from our company.

Please download the PDF document to know more information about Daily Maintenance.
