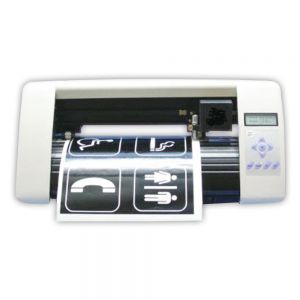

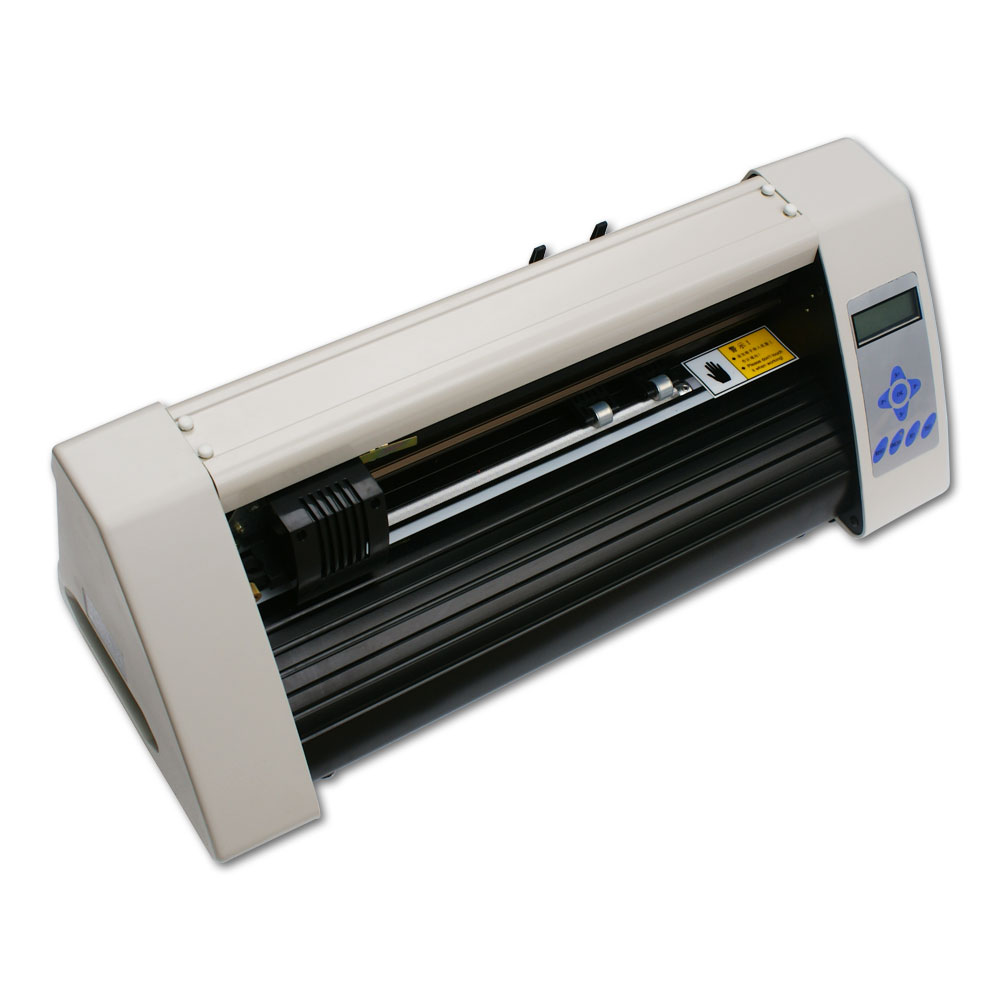

16" Redsail Mini Vinyl Cutter Plotter with Contour Cut Function

Unit Price:$323.00 - 348.00/set(Discount Notice)

Buy More, Save More!

Qty (sets) Discount Amount/set
    1 0% $348.00
    2 - 10 4% $334.00
    11 - 20 7% $323.00

Need more quantities, please submit a Bulk Order inquiry

Get Coupon: $500Order ≥ $4999 $200Order ≥ $1999 $100Order ≥ $999 $50Order ≥ $499 $30Order ≥ $299 $10Order ≥ $100

Please choose

Quantity:
set(s) Total Cost: USD $348.00

Shipping Weight: 38.7lb (17.6kg) freightFreight

Order Now Add to Cart Inquire Now

Buyer Protection

Your are Viewing: Price : $323.00 - 348.00/set Order Now
Cart 0 item(s) Back to Top

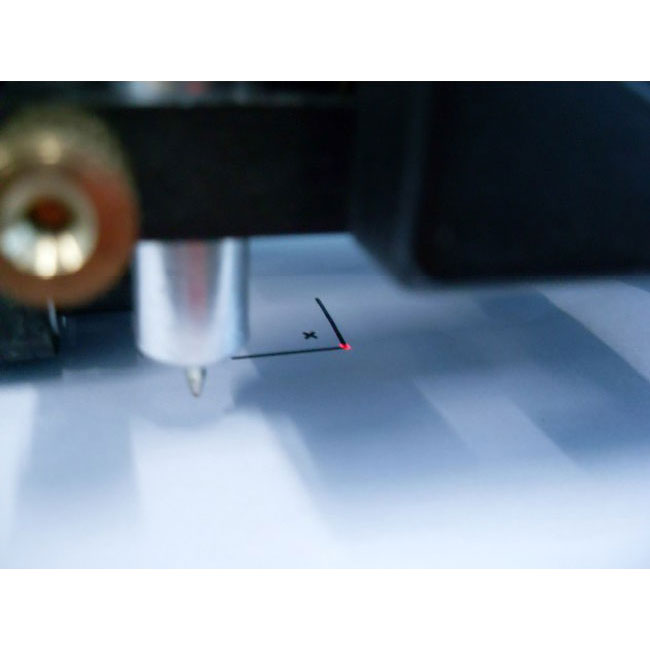

Red optic sensor, register marks with "Cut" Support, cut plug-in for Corel DRAW.
Red optic sensor, register marks with "Cut" Support, cut plug-in for Corel DRAW. Aluminum alloy knurling feed rollers, leading shaft, high torque motor and micro-step driver locating system. With such a fast, accurate and versatile desktop cutting plotter, you can contour cut most any media pre-printed - from your choice of inkjet, solvent based and laser printer.
WinPCSign plotting software (Match training CD)
Support CorelDraw output directly (But you need to buy a soft dog)
Features:

- Low cost and high performance machine for the manufacture of signaling.

- Controlled by RISC high - speed processor, a high speed cache.

- Unique soft impact cutter for smooth cutting.

- It can regulate the pressure and speed numerically at real-time, which is very convenient and can be achieved fast.

- It has a perfect output: There’s no saw tooth even when using high speed.

- It supports direct cut-outs from `CorelDraw` 11, 12, X3.X4, X5, bringing great convenience to work.

- It has a stylish design and very solid support. It doesn't shake while cutting.

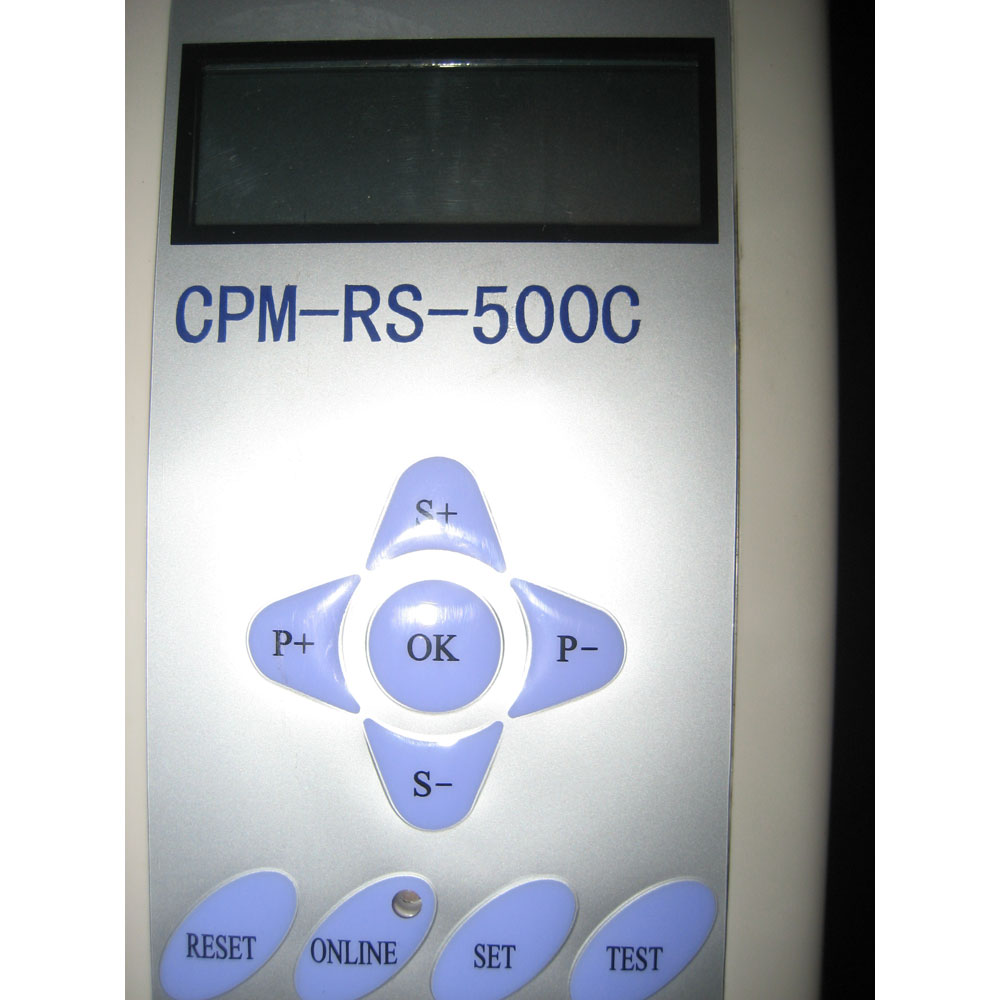

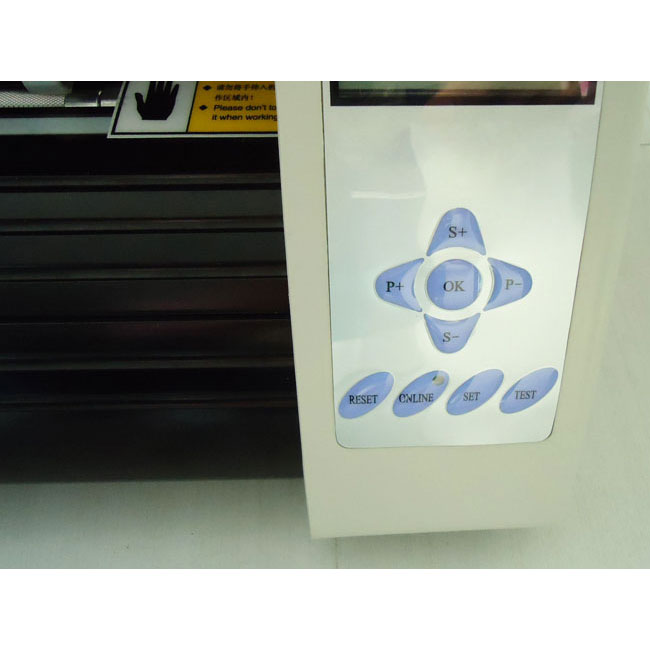

- The cutting plotter has LCD with a very accurate and simple English Menu, operated it by pressing buttons.

- The plotter’s pinch rollers are adjustable, so the paper stays in place when using rolls of media.

Components:



1. Protection of track                                       9. Knife holder

2. Carriage                                                      10. Seat of knife holder

3. Pinch roller                                                11. Left shell

4. LCD monitor                                               12. Handle to control the roller

5. Keyboard panel                                          13. AC power port

6. LED lamp                                                    14. Safe fuse

7. Right shell                                                   15. Power switch

8. Machine’s foot                                            16. RS232 port





Locknut holder's shell close screw blade
On the working state, the knife can rotate in holder very smoothly. In the first time you can screw the "close screw" off the "holder's shell", set the blade into bottom of holder, then close the "close screw" to avoid the knife falling out, let the knife peep out of the holder less than 0.5mm. When you want to change the blade, take out the old blade, change a new one, then close the" close screw", keep the blade peep out of the holder less than 0.5mm. (The locknut will not screw, usually).



Close screw Holder shell Plotting pen.

You can use usual ball pen as plotting pen; keep the ball pen peep out of the holder between 4mm and 5mm. the other using method is similar as blade's process; please try it yourself according to the blade's changing method.

Details Pictures:

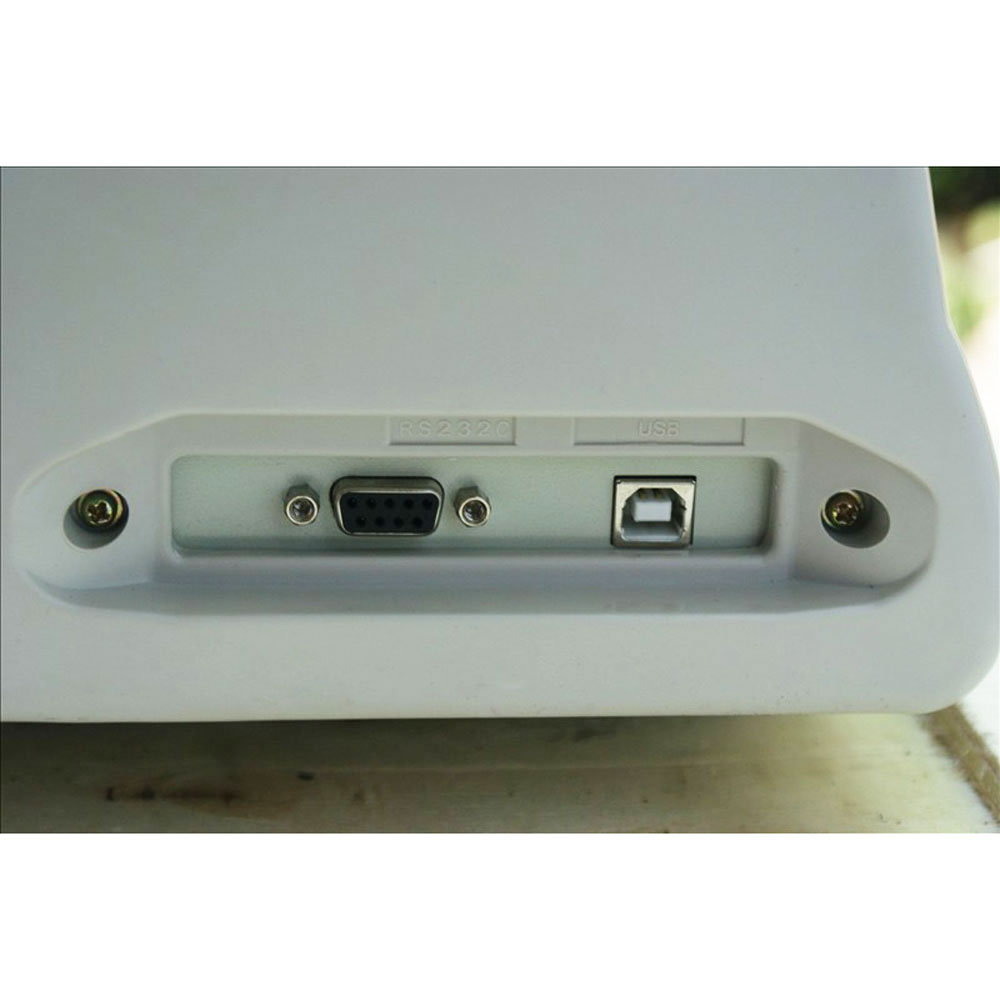

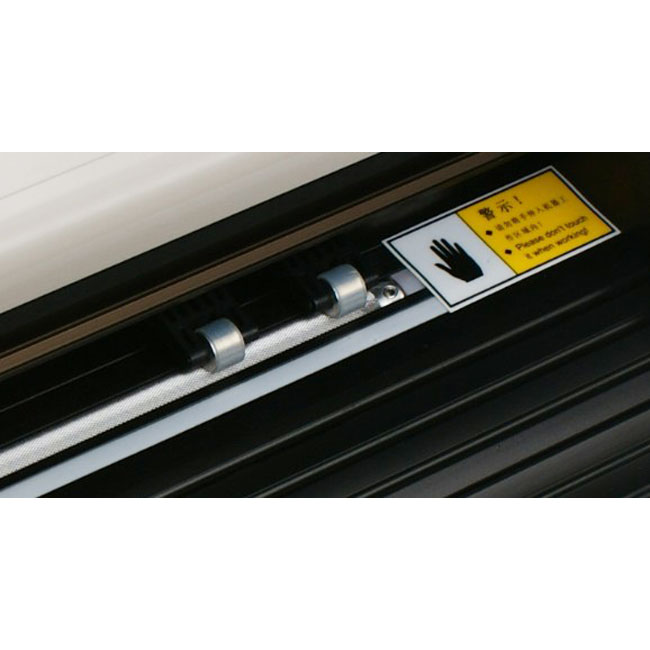

Silica gel pinch roller, durable in use USB interface

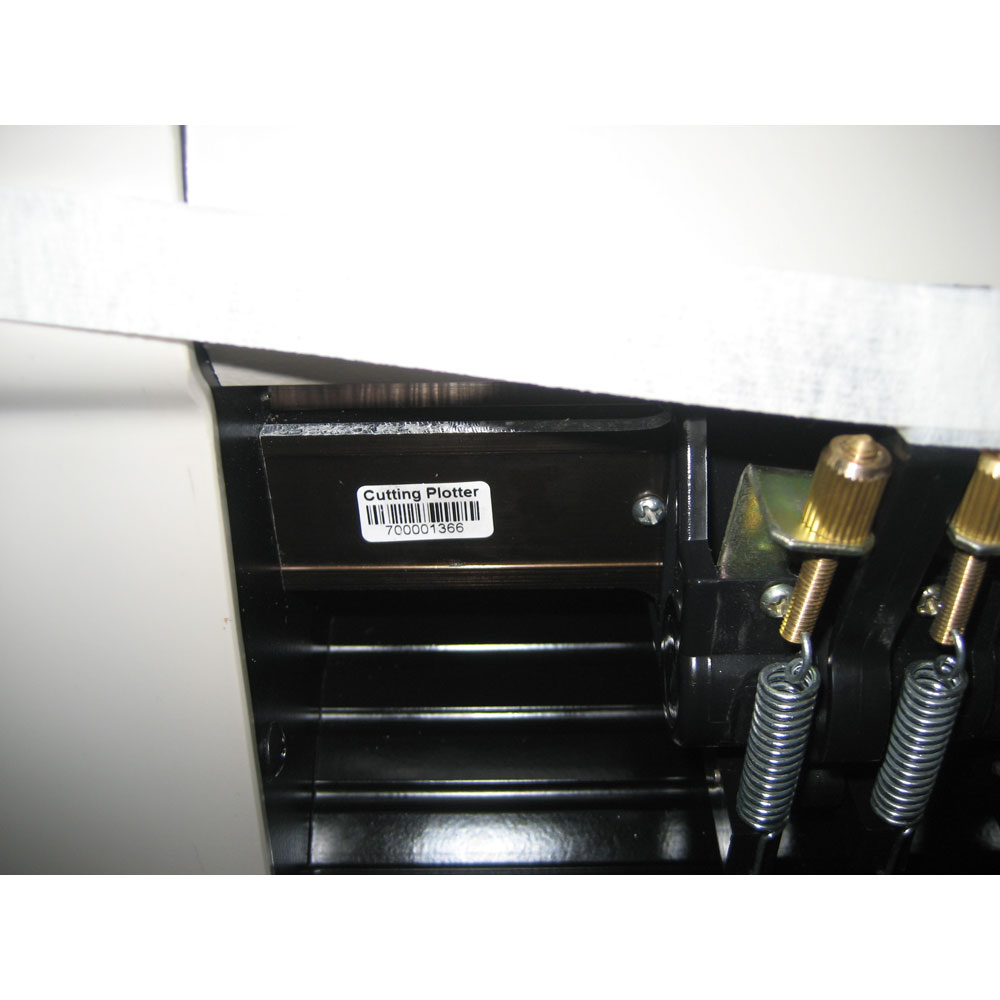

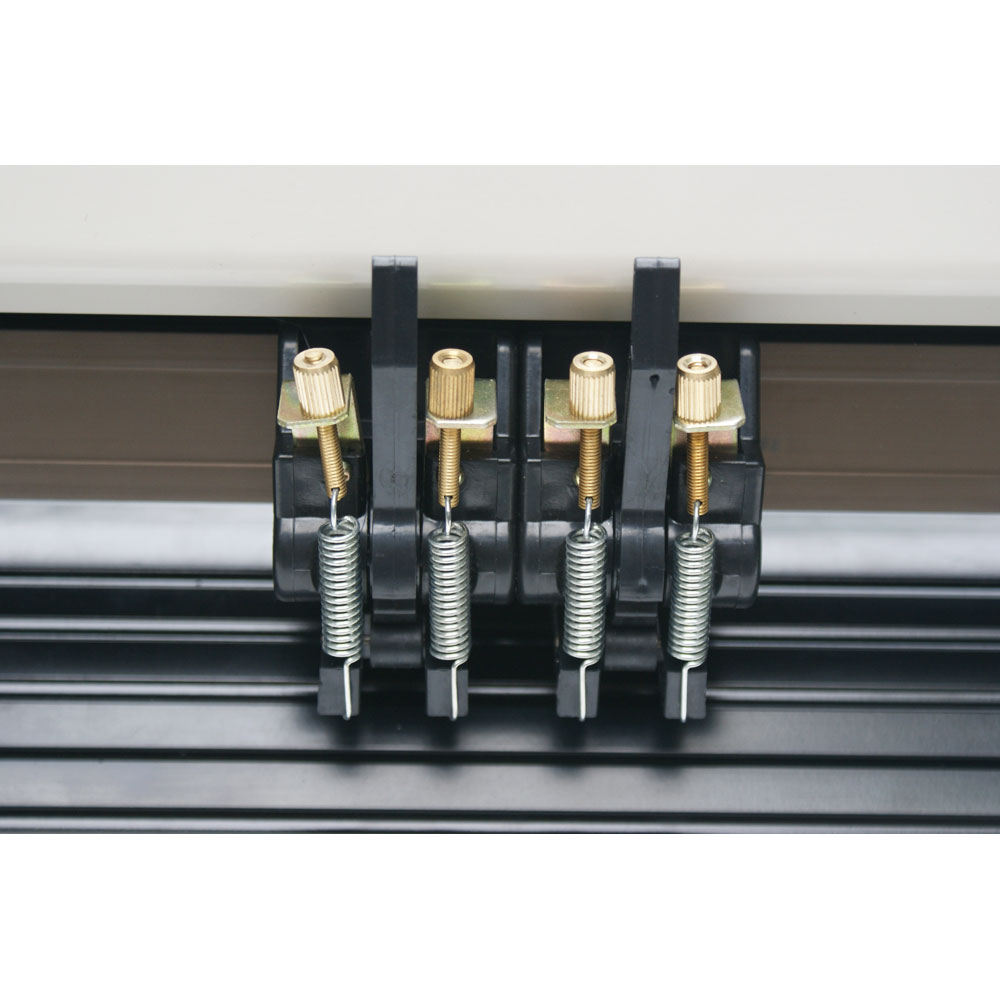

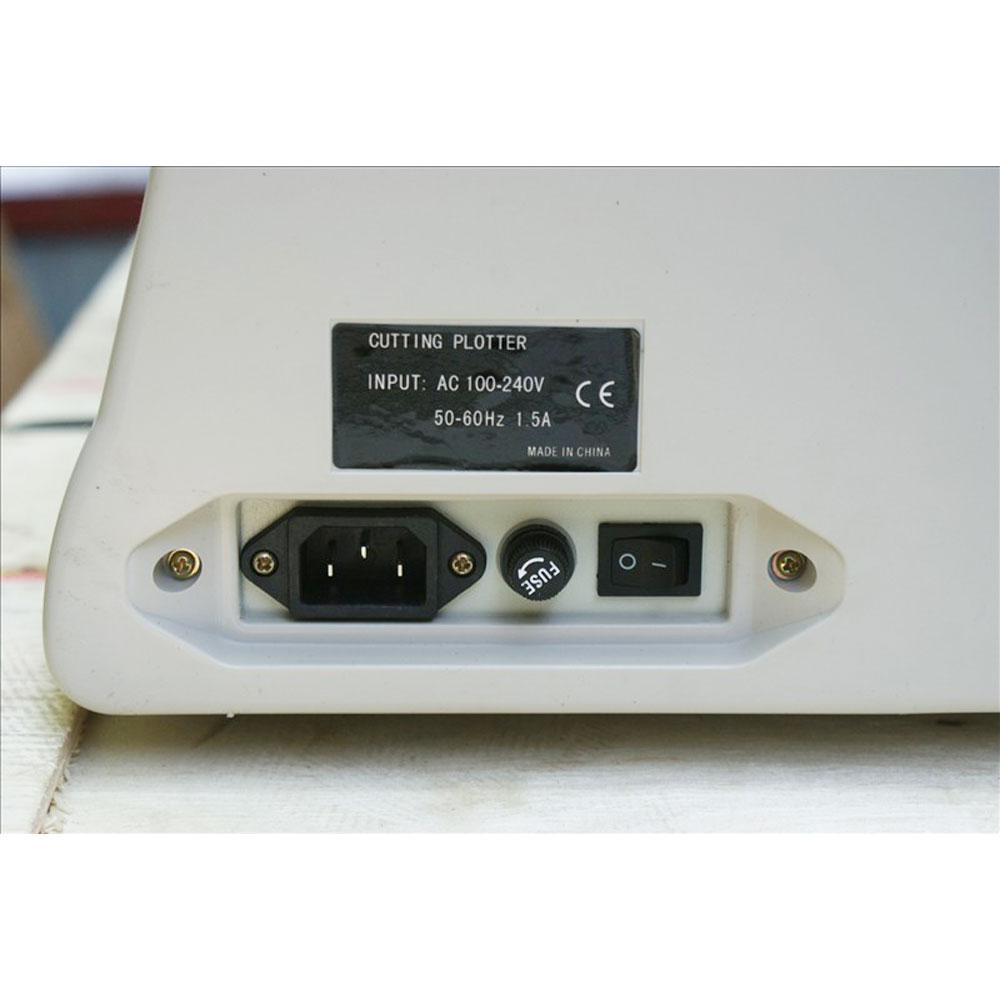

Double spring press paper holder, not distortion CE mark and power supply




This cutting plotter is great for business usage; it is able to make any kind of design and it works faster and easier than other models. This machine can be used for stickers, glass decal, penaflex, vinyl decal, masking film for painting or etching, vinyl lettering, decorative scrapbook papers, card stock, stencils, magnetic sheets, etc. As well as all kinds of flexible heat transfer media like T - shirts, magic cut colored paper for garments, etc.

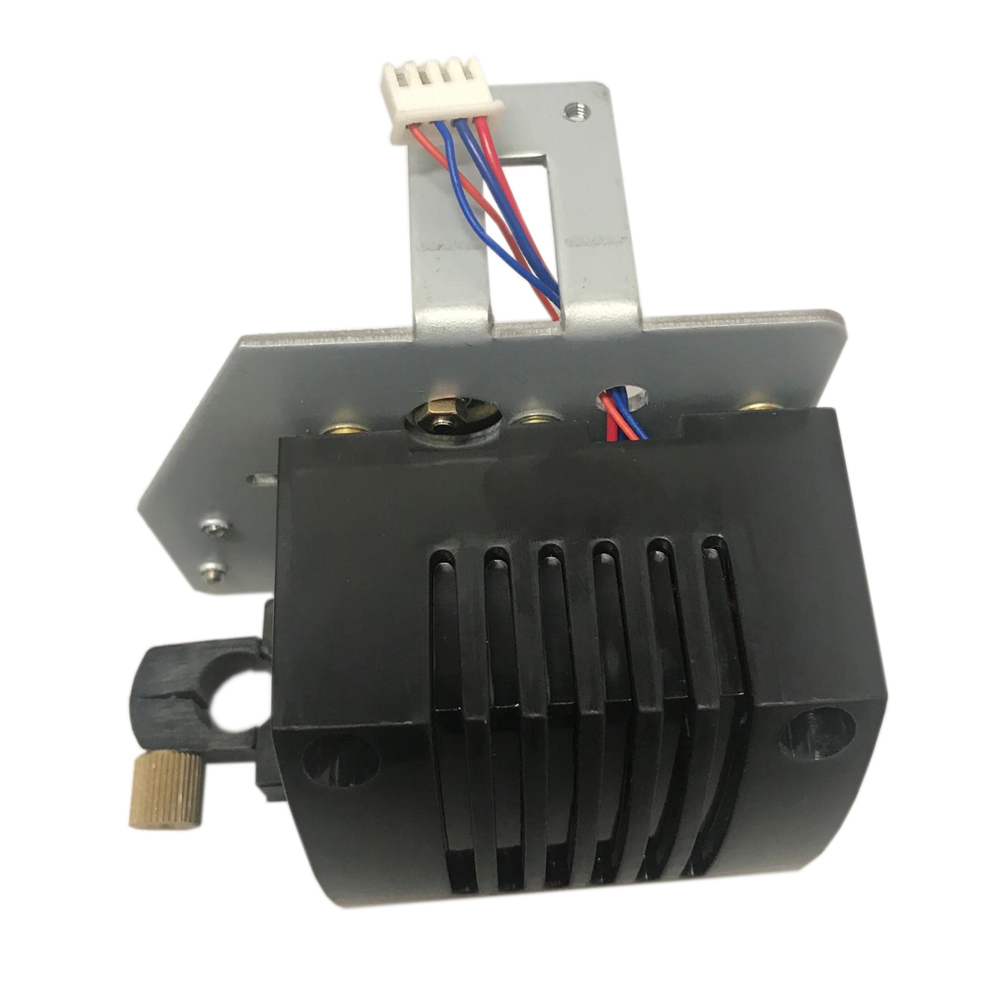

Blade holder and pen holder
The life of Blade:
The correct usage could prolong the life of blade.
(1) The more length the blade sharp extends out, the shorter life blade will work. So you should avoid cut through the paper.
(2) The more Force, the blade life will get short.
(3) Trying to use small Force, when the blade edge is getting less sharp, you could add the working force suitable.
(4) Different brand blades will have different life.
(5) You should change the blade when you find the old one has no tartness, to avoid affecting the work badly.

How to fix and setup the blade?
Turn off the plotter power.
Set the holder on holder's seat; close the screw of seat of holder.
Turn on the power, the carriage will move to right side; you can press "TEST" key to examine the plotter.

Remark:

A. You should keep the blade clean and don’t break the blade sharp.
B. The length out of the cover should be just a little bit, say 0.2mm around over the paper thickness which you will cut!
On the working state, the knife can rotate in holder very smoothly. In the first time you can screw the "close screw" off the "holder's shell", set the blade into bottom of holder, then close the "close screw" to avoid the knife falling out, let the knife peep out of the holder less than 0.5mm. When you want to change the blade, take out the old blade, change a new one, then close the" close screw", keep the blade peep out of the holder less than 0.5mm. (The locknut will not screw, usually).

How to load media?
Steps: Load media / Load paper:
When you move the roller, you must lift the handle first; the right roller will not move, usually.
Lift the handle, the roller will lift 1 - 2mm, and then you can load your media.
Laying down the handle, you can press "UP" key (S+) or "DOWN" key (S-) continuously, the paper will roll to front or back; please confirm the paper must move straightly during the distance that you want to cut.
Adjust the speed and pressure, and then you can output the data to the plotter.


Quality report:

1. I don’t know this website well, how can I trust you?
2. Not clear about the Price Policy of Sign-in-Global.com?
3. How to pay? Can I use credit card?
4. Is it safe to pay online? Will it occur any security problems concerning my personal information?
Maximum Cutting Width 16" (400mm)
Maximum Media Feeding Width 20" (500mm)
Interface COM, USB
Maximum Knife Press 500g
Maximum Cutting Speed 24" (600mm)/s
Standard Plotting Software WinPCSign Basic 2009 multi-language version
Computer System Requirements Windows 95, 98, Me, NT, 2000, XP & Win7, Vista
Main Features Red optic sensor, register marks with "Cut" Support, Cut plug-in for Corel DRAW. Aluminium alloy knurling feed rollers, leading shaft, high torque motor and micro-step driver locating system. With such a fast, accurate and versatile desktop cutting plotter, you can contour cut most any media pre-printed, from your choice of inkjet, solvent based and laser printer.
This product has no Specifications
Love it! Rate it!
  • Simply write a review of a product and you can get up to 500 Points (Equivalent to $5) for Next Orders.
  • ≥ 120 words + ≥ 3 clear photos = Up to 1000 Points (Equivalent to $10).
  • Show us why you love or how to use the product. Help other shoppers find the right product!
Average Rating: 0

Terms & Condition of Purchase: After we receive PO from customer with stamp, we give PI for customer.

Lead Time: After receiving customer's deposit, within 1 - 3 days.

Wooden Box: There is total one carton box.

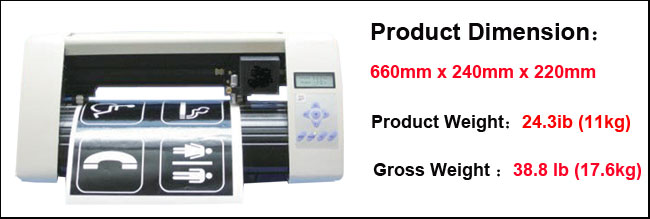

Machine Dimension
660mm x 240mm x 220mm (26" x 9" x 8")
Machine Weight
24.3ib (11kg)
Package Carton box with foam fixed
Packing Size 32" x 12" x 14" (810mm x 310mm x 350mm)
Gross Weight 38.8 lb (17.6kg)

Packing List

pictures Article Unit Quantity
Cutting plotter set 1
WinPCSign basic 2009 version plotting software set 1
USB cable pc 1
Power cable pc 1
Cutting blades pc 1
Blade holder set 1
Pen holder set 1
User manual (CD) copy 1 - 3

Standard Accessories



Comprehensive guarantee for one year except the wearing parts

24 - hour technical support by email or calling

User - friendly English manual for machine using and maintaining

Spare Parts Supports

We provide all replacement parts for all machines we sold, if you have a parts that break beyond warranty period, you could order it directly from us at reasonable prices. We would post the new parts with step by step instructions in PDF format on how to replace the parts to you.
If you want to buy any parts from us, please tell us the names or pictures of the parts.

Satisfaction Guarantee

For the items other than consumable products sold via www.Sign-in-China.com, we provide 12 months warranty after shipment. All the extra parts for equipment can be purchased from www.Sign-in-China.com. Further, for our VIP customers, the period of warranty shall be extended to 18 months.

We offer 14 days 100% satisfaction guarantee on all our machines. If you are not satisfied after receiving an item, Sign-in- China.com promises that, within 14 days after actual delivery of such an item, you are allowed to return the item to us and get complete refund, provided the returned item does not affect its subsequent re - selling and you also undertake the charge of returning delivery.

More information, please look at the document of Training & Warranty & Service Policies

Vinyl Cutting Plotter with Contour Cut Function:

WinPCSign Plotting Software with Red Dot Positioning:
