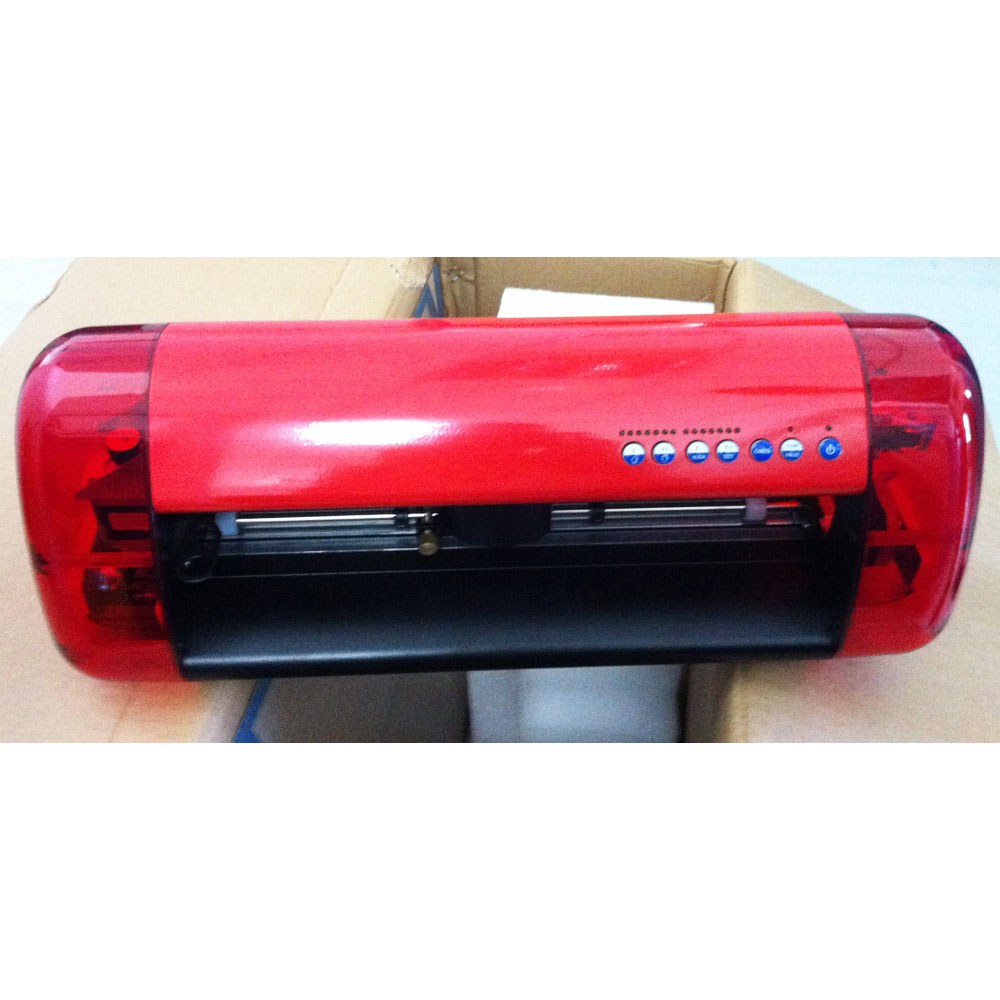

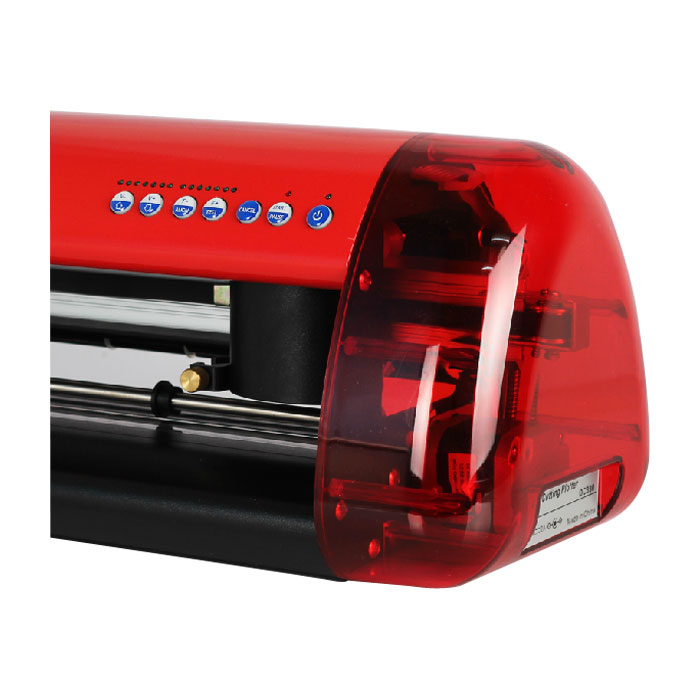

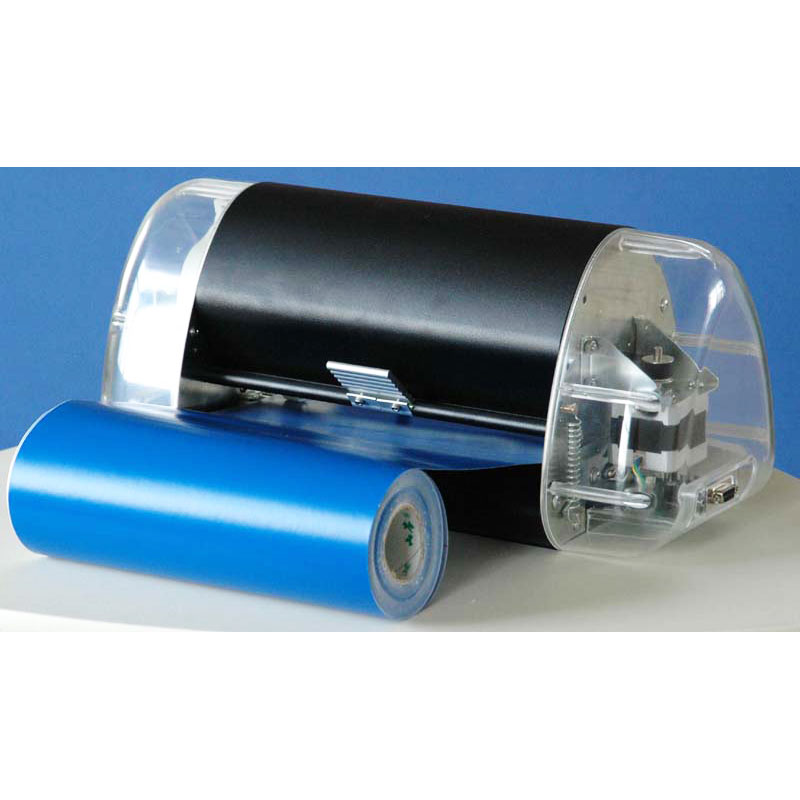

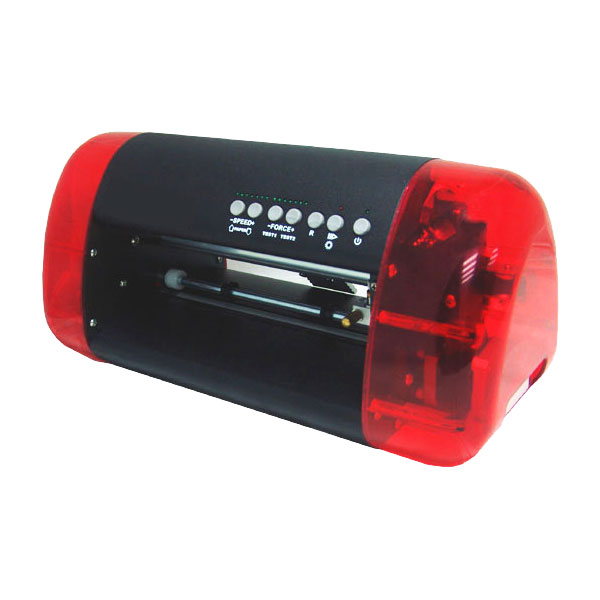

A3 Size CUTOK Vinyl Cutter and Plotter with Contour Cut Function
Warm Tips:
1. Please read the instruction before using.
2. Wait for more than 20 seconds before output after powered on the machine or repluged in the cable. Otherwise, the cutter driver will be offline automatically. Make the status online before output if offline status occured.
Description:
A3 Size CUTOK Vinyl Cutter and Plotter is a small cutting and drawing plotter with a registration mark laser on it.
It is a 13" mini vinyl Cutter Plotter sign making equipment.
Compatible with Windows VISTA, XP, 2000, 2003, 2007, Win7/Win8
A Windows driver is provided and enables output from leading drawing software (e.g. CorelDraw 12, Adobe Illustrators).

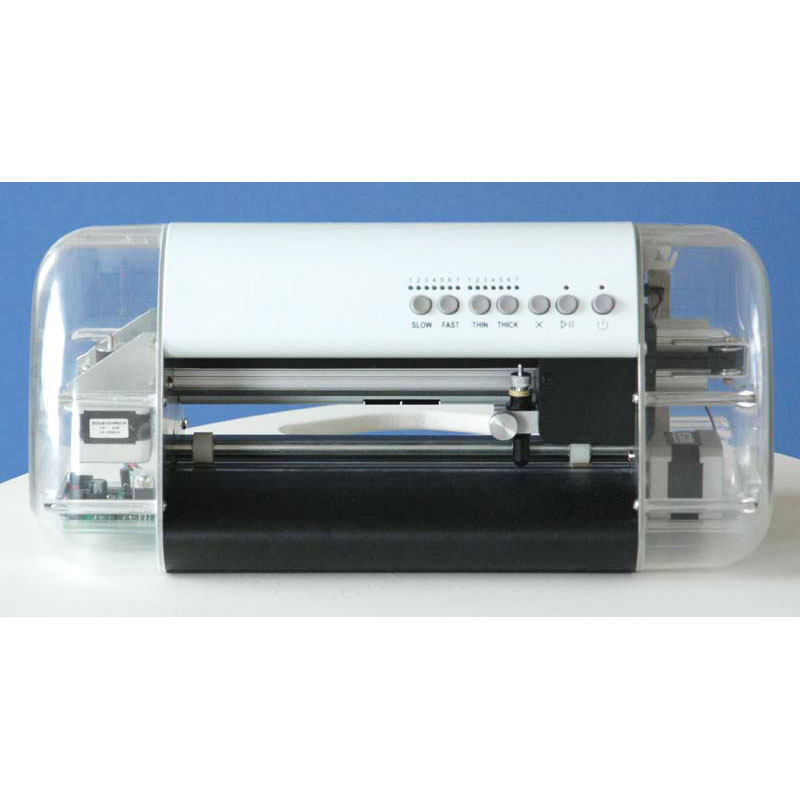

• CPM-CUTOK-A3 Vinyl Cutter is a small cutting and drawing plotter with a registration mark laser.
• The vinyl cutting plotter can draw, cut and kiss - cut shapes around of cardboard, vinyl and polyester sheets for several uses.
• You can change the cutting - knife to `ball` pen, then it works as plotting instrument.
• The cutting plotter is powered by a 16V DC adaptor.
• Compatible with Windows VISTA, XP, 2000, 2003, 2007, Win7/Win8
• A Windows driver is provided and enables output from `leading` drawing software (e.g. Corel DRAW 12, Adobe Illustrator CS).
• High moving precision grit - rolling guaranteed. Optical function - for easier and accurate operation.
• The vinyl cutter is equipped with the CUTOK Master software, especially designed for this machine, which is practical and easy to use. Its main function is contour cutting; it means that you can cut printed graphics along the contour.
• This vinyl cutting machine is compatible with many kinds of plotting software, such as FlexiSign, SignCut, WinPCSIGN, Artcut, etc.
• It has an innovating design that saves more room.
• You can use the software you like, just do some setting. Please look at PDF documents of how to set the software in Instruction tab.
Media Types
Film media 0.1 mm thick or less
Kent paper (Inkjet or laser paper up to 300g / sq. m)
Drawing paper, postcards, scrapbook paper
Inkjet photo paper (Not all kind of media can be cut)
Applications:
You can draw, cut, kiss-cut and decuple shapes around.
You can cut cartoon or other Vinyl and polyester sheets for your business and hobbies.
You can use it to make stickers, paper crafts, scrapbooks, jigsaw puzzles, DIY, 3D card modeling, cards, letters, gift boxes, etc. It is especially suitable for thick paper cutting.
The vinyl plotting machine is the best choice for store, office, school and home use.
Sample card board cutting and small batch production
Heat transfer, sticker, die-cutting industries
Paper molding, 3D molded paper products, paper industry
Decorative wall stickers, stickers, car sticker
Cutting personalized jigsaw samples
Paper cutting and so on
The machine won four patent certificates as bellowing:
Patent Number: 200630083948.4, Mini desktop vinyl cutting machine
Patent Number: 200620072605.2, Updated version of mini desktop cutting plotter
Patent Number: 200620076059.X, Blade and carriages
Patent Number: 200620072070.9, Roller structure of the cutting plotter
Patent Number: 200720131322.5, Blade alignment apparatus of this machine

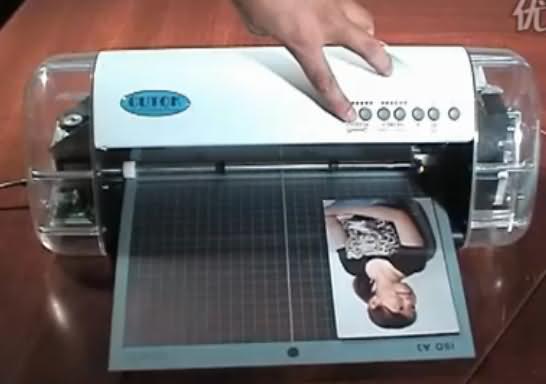

How to use the Cutting Mat
Remark: The price will float subject to foreign exchange. Please ask our salesman for the final quotation before you make an order.
| Maximum Cutting Width | 11" (290mm) |
| Maximum Media Feeding Width | 13" (330mm) |

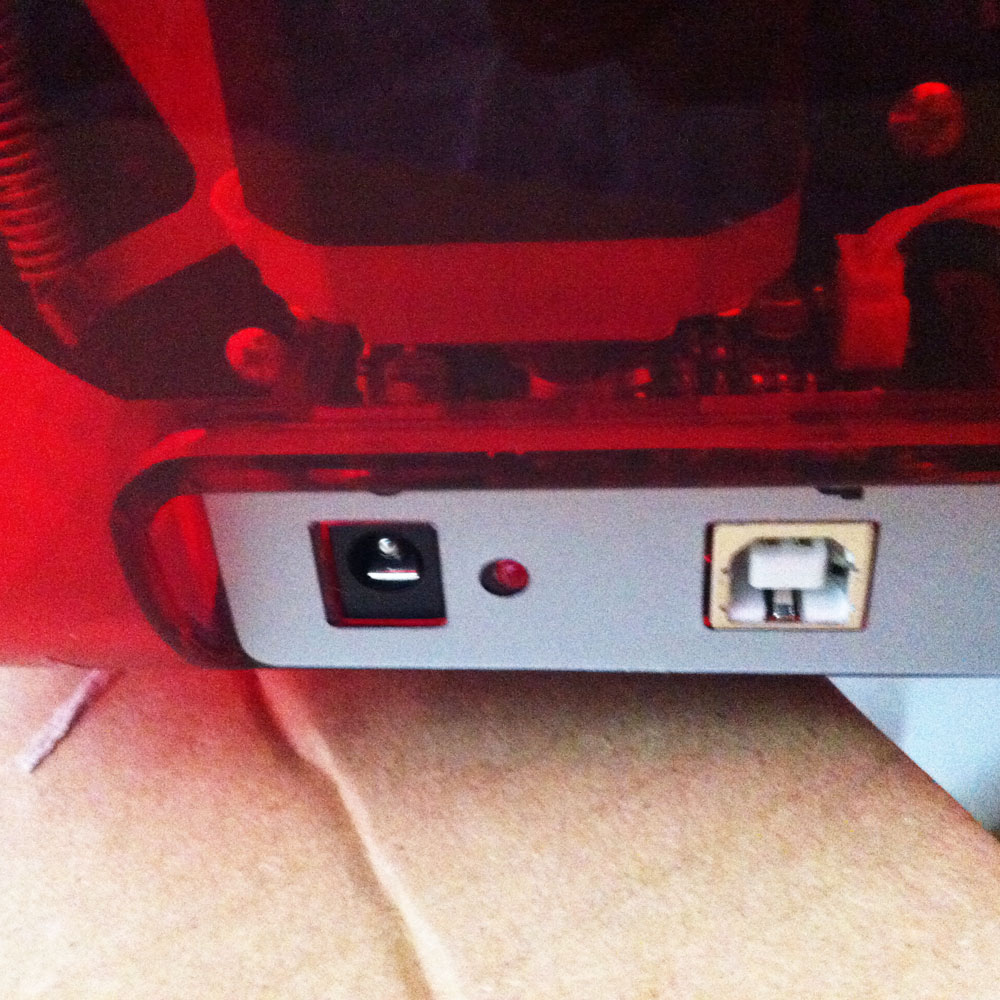

| Interface | COM, USB |
| Maximum Knife Press | 500g (7 levels selectable) |
| Maximum Cutting Speed | 11" (280mm)/s (7 levels selectable) |
| Standard Plotting Software | CUTOK Master |
| Computer System Requirements | Compatible with Windows7 (64bit), Windows (32bit), Windows VISTA (64bit), Windows VISTA (32bit), XP, 2003, 2000 |
| Main Features | Red optic sensor, register marks with "Cut" Support, cut plug-in for Corel DRAW. Steel sting feed rollers, leading shaft, high torque motor and micro-step driver locating system. You can draw, cut, kiss-cut and decuple shapes around. You can cut cartoon or other Vinyl and polyester sheets for your business and hobbies. |
| Model | CPM-CUTOK-A3 |
| Driver | Stepper motor |
| Maximum Paper Feed Width | 13" (330mm) |
| Maximum Cutting Width | 11.8" (300mm) |
| Maximum Cutting Speed | 0.4" - 11.0" (10-280mm) / s ( 7 levels selectable) |
| Maximum Cutting Length | 78.7" (2000mm) |
| Maximum Cutting Thickness | Film media 0.1 mm or less in thickness(acetate plastic for airbrush stencils 0.5 mm or less in thickness). |
| Kent paper (inkjet or laser paper up to 300g / sq. m). | |
| Drawing paper, postcards, scrapbooking paper. | |
| Inkjet photo paper (Not all types of media can be cut) | |
| Knife Press | 60g to 500g (7 levels selectable) |
| Minimum Size of Cutting Letter | 0.2" (5mm) |
| Repeat Precision | 0.025mm / step 1016DPI or 0.0254mm / step 1000DPI |
| Type of Tool | Roland carbide blade |
| Plotting Instruction | DMPL, HPGL |
| Interface | USB2.0 |
| RAM | 256M |
| Real Cutter Softball | Yes |
| Optical Function | Yes |
| Emergency Stop | No |
| Power Supply | Dedicated adapter: OUTPUT: DC 16V 2.5A |
| INPUT: AC100V ∼ 240V ; 47Hz ∼ 66Hz | |
| Working Environment | 5 to 30°C, 35 to 80% R.H. (Non-condensing) |
Average Rating: 5 (15)
Lead Time: After receiving customer's deposit, within 24 hours.
Package: There is total one carton box.
| Machine Dimension | 18.5" x 7" x 7" ( 470mm x 170mm x 165mm) |
| Machine Weight | 5.5kg |
| Package | Carton box with foam fixed |
| Packing Size | 23" x 11" x 14" (590mm x 280mm x 360mm) |
| Gross Weight | 7kg |

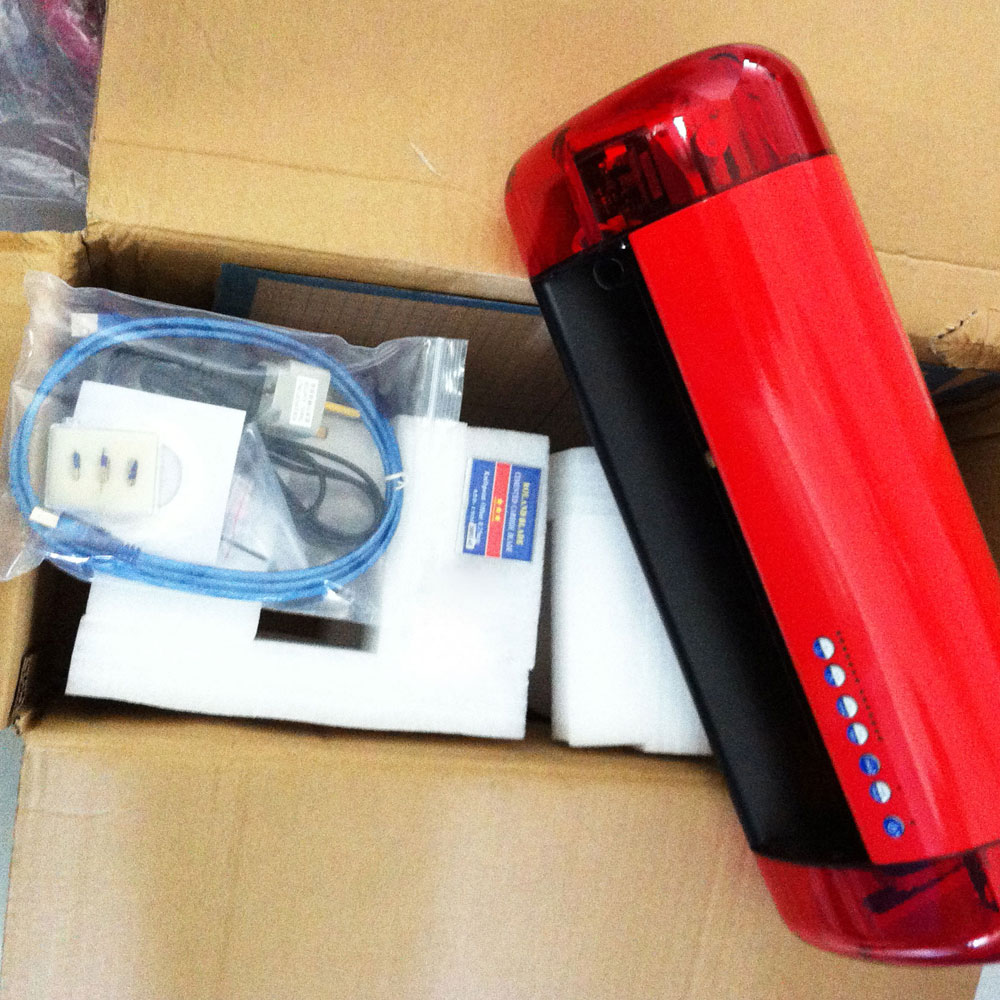

Packing list
 |
Cutting plotter | 1 set |
 |
USB cable | 1 pc |
 |
Power cable | 1 pc |
 |
Cutting blades | 3 pc |
 |
Blade holder | 1 set |
| Pen holder | 1 set | |
 |
User manual (CD) | 1 copy |
 |
A3 cutting mat | 2 pc |
Package:
Packing List
Spare Parts Supports
We provide all replacement parts for all machines we sold, if you have a parts that break beyond warranty period, you could order it directly from us at reasonable prices. We would post the new parts with step by step instructions in PDF format on how to replace the parts to you.
If you want to buy any parts from us, please tell us the number of the parts. (Download the pictures of Accessories ID, find the number.)
parts-ID-2-small
parts-ID-3-small
parts-ID-4-small
parts-ID-small
