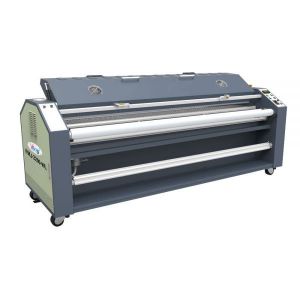

Qomolangma 86" Full-auto Wide Format Liquid laminator Aqueous Liquid Coater
Liquid laminates provide UV protection and image enhancement for a wide variety of graphic applications.
Liquid laminates are often a great alternative to film laminates and can be an effective way to protect billboards, prints, fine art, signs, banners, awnings and other products from the elements.
Liquid laminates come in many formulas and offer a number of advantages over rolled film coatings. They are extremely economical and don’t produce much waste when machine applied. Vinyl that has been treated with a liquid laminate is weldable (hot air and radio frequency) and the coating offers as much or more UV and abrasion protection as film laminates. They will also stretch and conform to uneven surfaces better than a hard coat film product.
Description:
Support Roll To Roll Operation.
Mainly used for roll to roll coating of vinyl, banner, canvas etc.
This series of liquiq laminator is widely used in the post-production of outside/inside advertisement and vehicle body advertisement.
Available size in 63.0" (1600mm), 78.7" (2000mm), 86.6" (2200mm) width.
Coating process
Products Highlights:
◇This liquid laminator has both drying system and cooling system, which make the coating film from `liquid` state to solid state. After laminating, the media can be crack resist, more flexible, UV protection, scratch resist etc.
◇61", 76", 83" Maximum working film width for your option.
◇Easy operation panel:
Dryer, fan, motor, pump button
Various speed and temperature adjustment
Temperature indication
Emergency Stop Button
◇Compatible with most roll-to-roll solvent, eco-solvent and pigmented inkjet printers, this liquid laminator protect inkjet graphics on vinyl, PSA, non-porous textiles, wet strength wall covering, canvas and other flexible substrates.
◇Liquid film is formed directly on the picture surface, and the film thickness is up to the size of Mayer bar. You can change the Mayer bar to increase film thickness according to requirement.
◇Has both flash drying system and cooling system, which make the coating film from `liquid` state to solid state, especially for hard-to-dry inks.
◇The liquid laminator is cost-effective and environmentally friendly. Coating costs range from $0.25 to $0.32 per sqm, depending on application and coating used.
◇Easy to operate and clean, requires minimal operator training.
Applications:
The series liquid laminator is one kind of after printing equipments, it is applicable to outdoor advertisements (printed by Solvent Ink).
Detailed pictures:
 |
 |

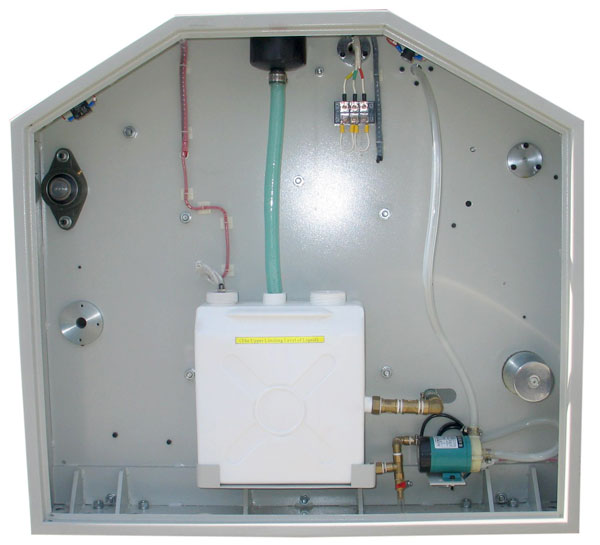

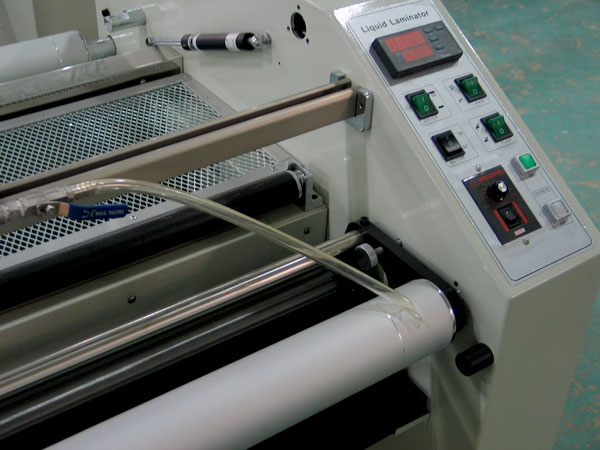

| Liquid film tube | Liquid film tank |
 |
 |

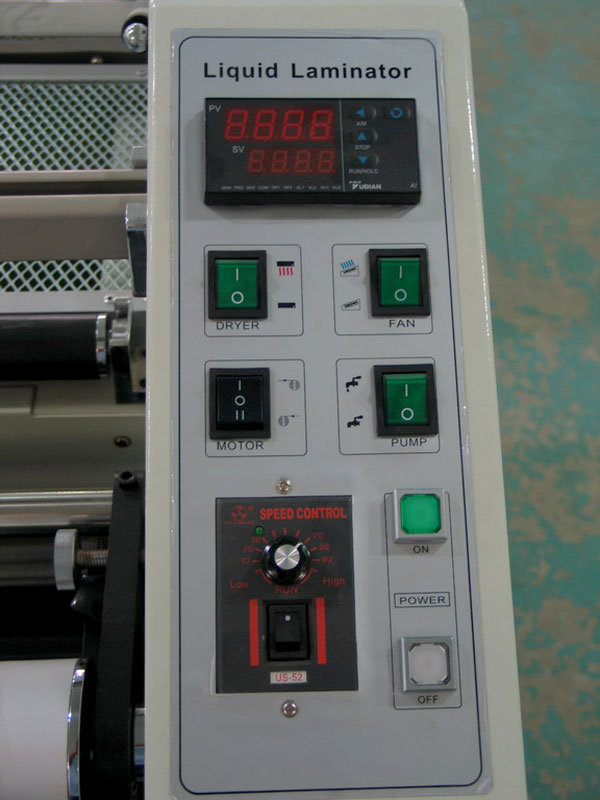

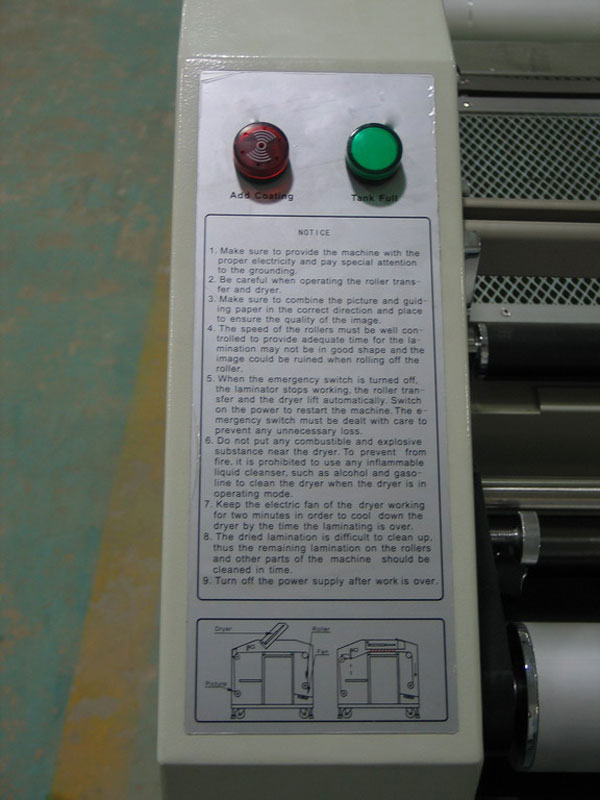

| Control panel | Liquid film status lights |
 |
 |

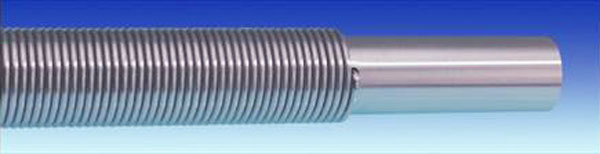

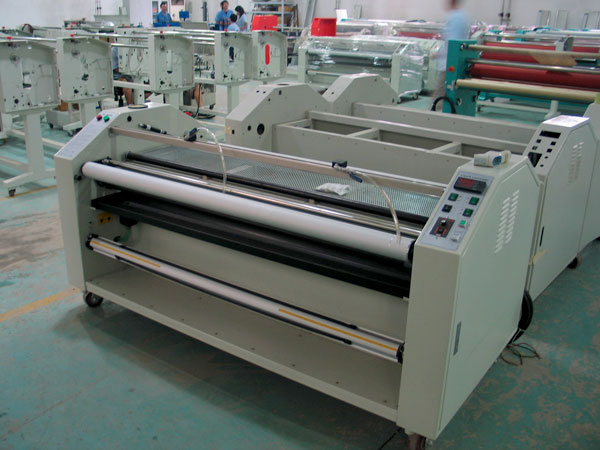

| Mayerbar | Laminator showroom |
| Maximum Laminating Width | 86" (2200mm) |
| Maximum Laminating Thickness | 0.007-0.01mm (Thickness adjustable) |
| Maximum Laminating Speed | 39"-59" (1-1.5m)/min |
| Profile | This full-auto (Automatic take-up roll for both printed images and back paper by one person) liquid laminator has both drying system and cooling system, which make the coating film from liquid state to solid state. After laminating, the media can be crack resist, more flexible, UV protection, scratch resist etc. It is compatible with most roll-to-roll solvent, eco-solvent inkjet printers, and it is mainly used for roll to roll coating of vinyl, banner, canvas etc. |
|
Model
|

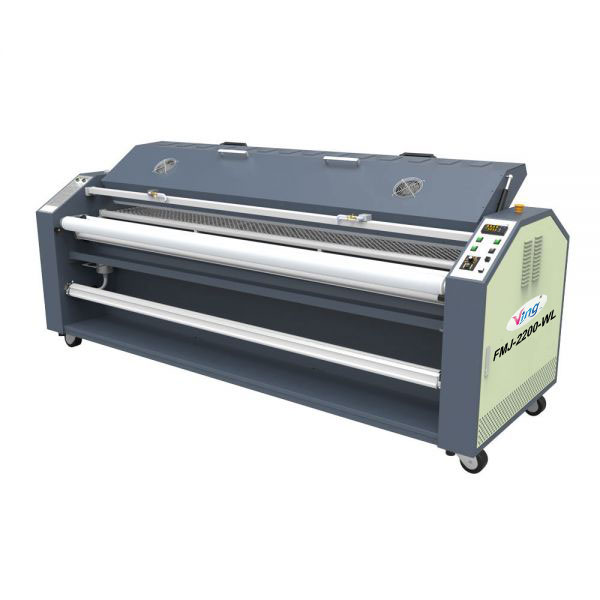

FMJ-2200-WL
|
|
Max. Coating Width
|
2100mm(83")
|
|
Max. Laminating Thickness
|
0.007-0.01mm
|
|
Max. Laminating Speed
|
1-1.5m(40"-59")/min
|
|
Laminating Temperature
|
100-130 degree
|
|
Max. Heating Temperature
|
150 degree
|
|
Forward / Reverse
|
Yes
|
|
Emergency Stops
|
Yes
|
|
After Laminating Pickup
|
Yes
|
|
Heating Power
|
8.4KW
|
|
Film Supply Mode
|
Magnetic suspension liquid pump, circulation supply
|
|
Heating Method
|
Infrard heating lamp
|
|
Motor Power
|
90W
|
|
Power Supply
|
The voltage is up to the local requirement, like AC 110V-240V, AC 380V; The current is 50Hz or 60Hz
|
|
Machine Weight
|
450kg
|
|
Machine Dimension
|
2630*930*1050mm(106"*37"*41")
|
|
Package
|
Fumigation free package
|
|
Packing Size
|
2760*1100*1230mm
|
|
Gross Weight
|
550kg
|
