Description:

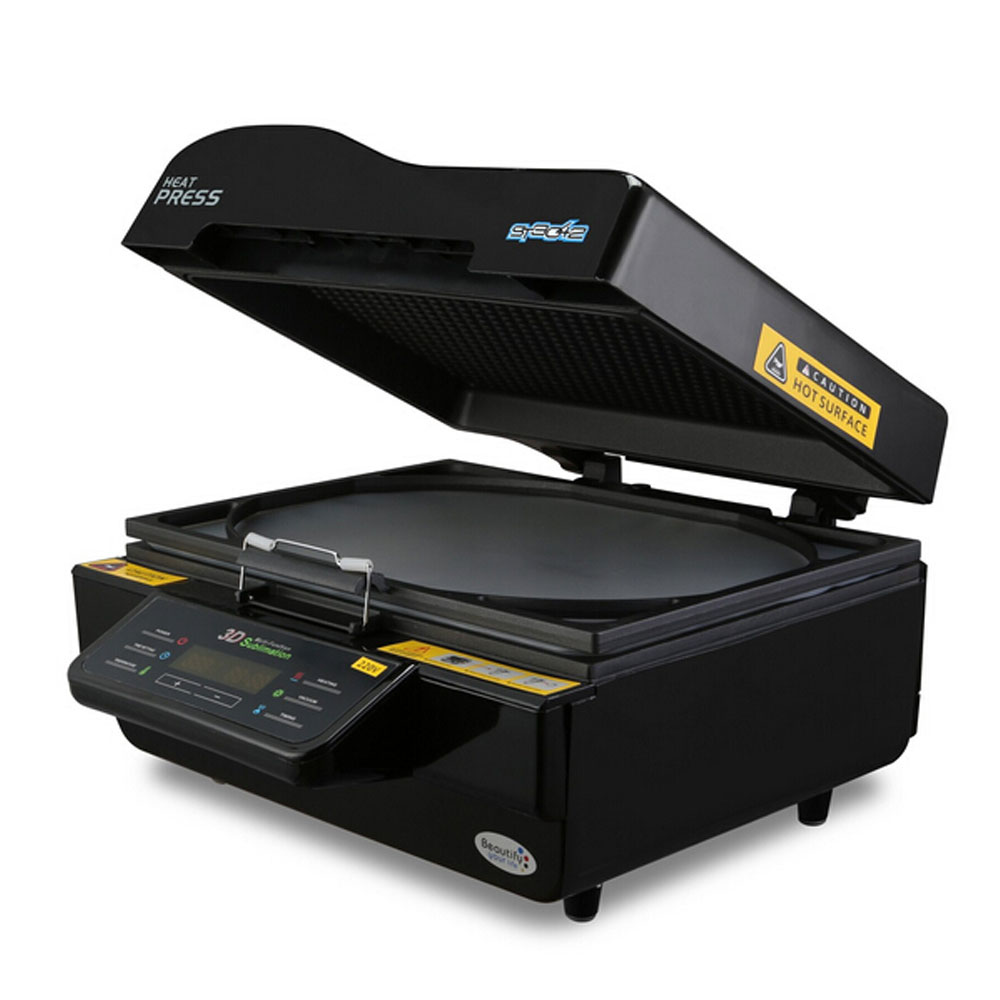

This 3D vacuum heat transfer machine is made of special aluminum and iron material that is high flame-retardant and thermal-insulated. It uses hot rollers with vacuum sucking moulding to transfer items of three-dimensional surface one time with perfect imprint effect. The 3d sublimation heat transfer machine is designed with asperities dots on the surface of working table to enlarge the heating area, and the more dots, the more wonderful transferring image it transfers.
Including:
• One set of 3D vacuum heat transfer machine
• One piece vacuum film
• Two pieces 11OZ mug clamper
• One pieces 15OZ mug clamper
• 3D vaccum press is based on the newest sublimation technology.
• High efficient, it can imprint 12 mugs at one time.
• Multifuction, flat items and curved items are both ok.
• Safety, dual temperature control on software and hardware seperately and it'll power off within 15 minutes without any operation.
• High intelligent, you can only close the cover and no need to press any button when working.
Feature1: Concise
The whole 3D Vacuum Heat Press Machine with compact and practical inner structure adopts special material which is adiabatic and uninflammable. And the the outer appearance is fashion and concise.
Feature2: High Efficiency

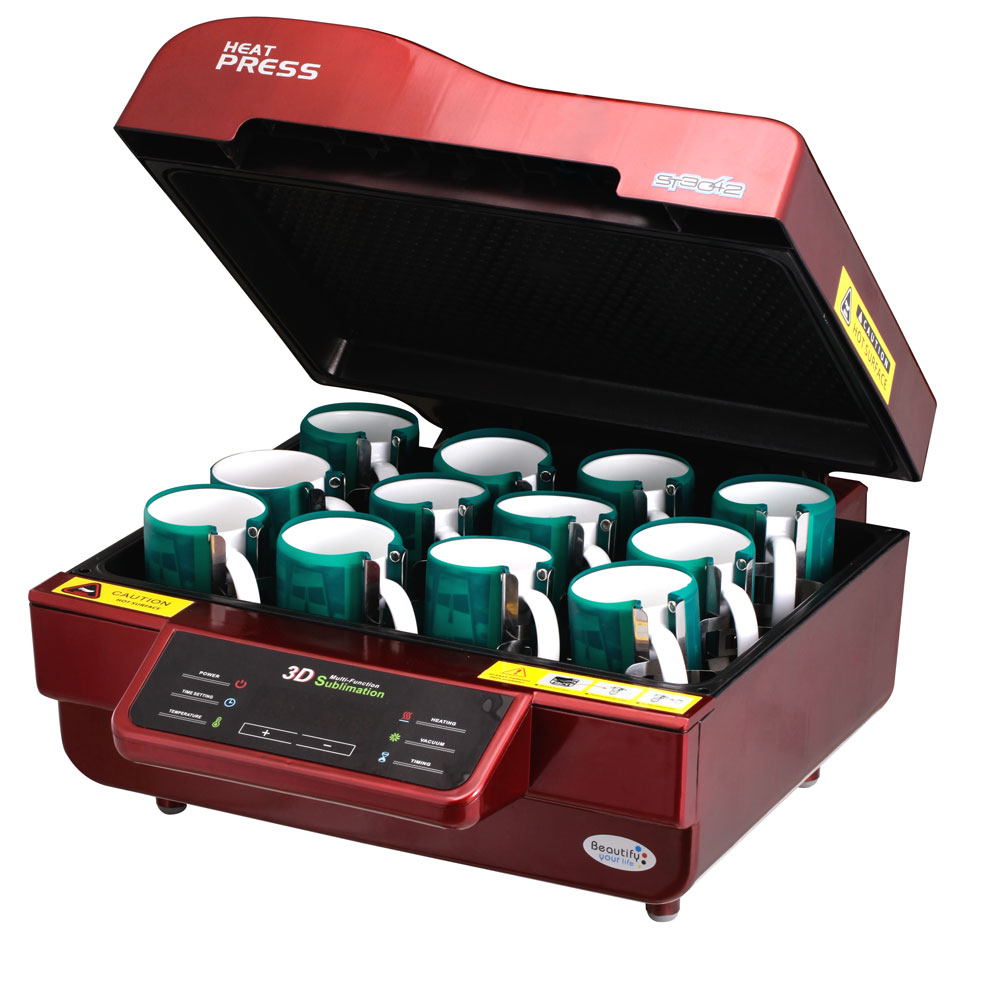

A big oven space, high working efficiency of printing 12 mugs at one time, equaling 12 mug heat press machines.
Feature3: Intelligent
Use friendly desktop design, simple fresh-hand lead in and control just with temperature and time setting. No extra manipulation needs for the whole printing process but only putin and take-out. When the cover is closed, the machine will automatically extract air, countdown and heat. When the printing is finished, the machine will automatically suck air.
Feature4: Delicate

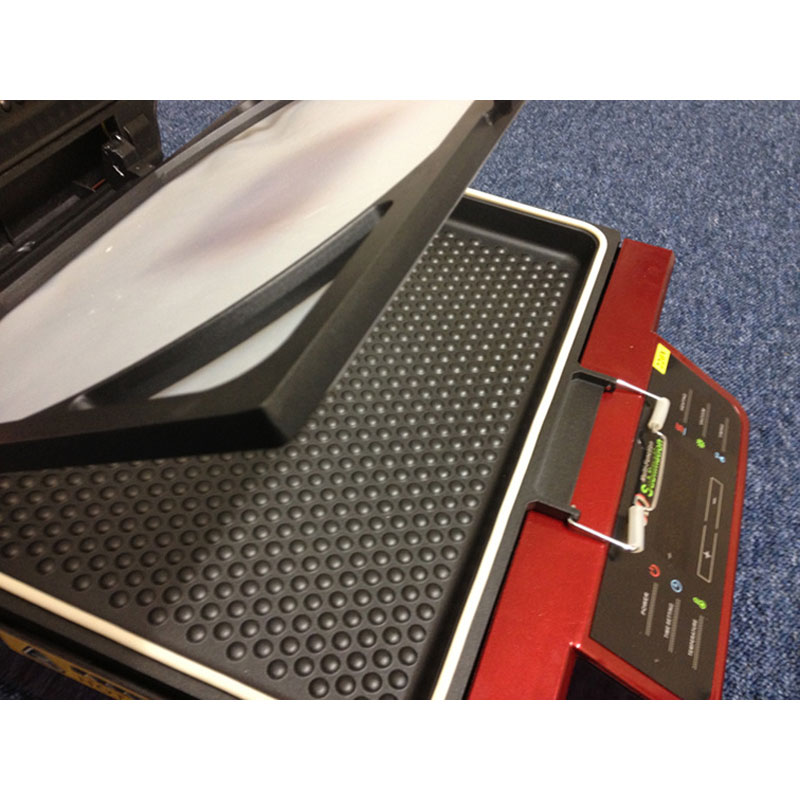

Heating area is enlarged with the bump dots design; and temperature of each point in the oven is even with the aluminum alloy heating and the far infrared radiation coat. Printing comes out in a more clear and vivid way.
Feature5: Compact
108 degree upward clamshell design that is compact and simple to operate and also saving space.
Feature6: Enviromental Friendly
Highly activated carbon air filter is equipped in the sublimation 3D vacuum heat press machine, effectively filtering the poisonous smell produced during printing and protecting users’ safety.
Feature7: Safety
Double-circuit design guarantees temperature control. When malfunction occurs in one circuit, the other temperature controlling circuit activates automatically. The machine will automatically shut down after 15 minutes’ idle running, making it safe and reliable. This sublimation vacuum transfer machine has applied for CE/UL certificate.

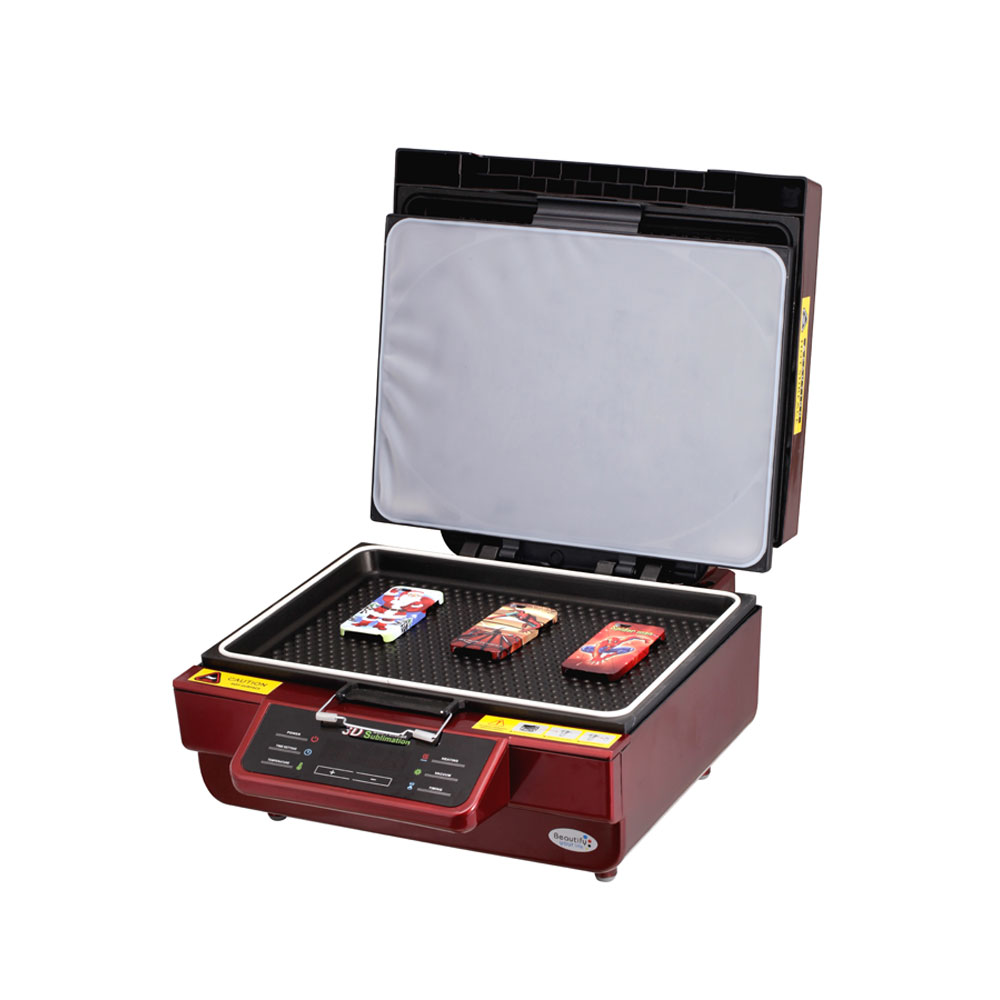

The 3D vacuum heat transfer machine is multifunctional for both flat items and curved items, such as T-shirt, pillowcase, tile, mouse pad, glass, crystal, plate, mug, iPhone cover, iPad cover, etc.
Finished Machine Test:
1) Turn on the machine, let it heating up to 200 degree Celsius.
2) Keep the temperature stay at 200 degree Celsius for at least half an hour.
Quality Inspection:
| Model | HTM-AHP-3D-S |
| Voltage | 110V / 220V |
| Power | 2800W |
| Transferring Area | 300X420X110mm (11.8"X16.5"X4.3") |
| Inspiratory Time | 18S |
| Vacuum Pressure | negative 0.1KPA |
| Temperature Range | 0-250 degree Celsius |
| Time Range | 0-999S |
| Dimesion | 470X590X290mm (18.5"X23.2"X11.4") |
| Packing Size | 720X640X420mm (28.3"X25.2"X16.5") |
| Gross Weight | 28kg |
| Items | Quantity | Temperature | Time |
| MUGS | 1pc | 200 degree Celsius | 360S |
| 12pcs | 200 degree Celsius | 480S | |
| Phone Case | 4pcs | 190 degree Celsius | 360S |
| Round Plates | 1pc | 200 degree Celsius | 300S |
| 2pcs | 200 degree Celsius | 360S | |
| Photo Slate | 1pc | 200 degree Celsius | 360S |
| 2pcs | 200 degree Celsius | 420S |
Average Rating: 5 (4)

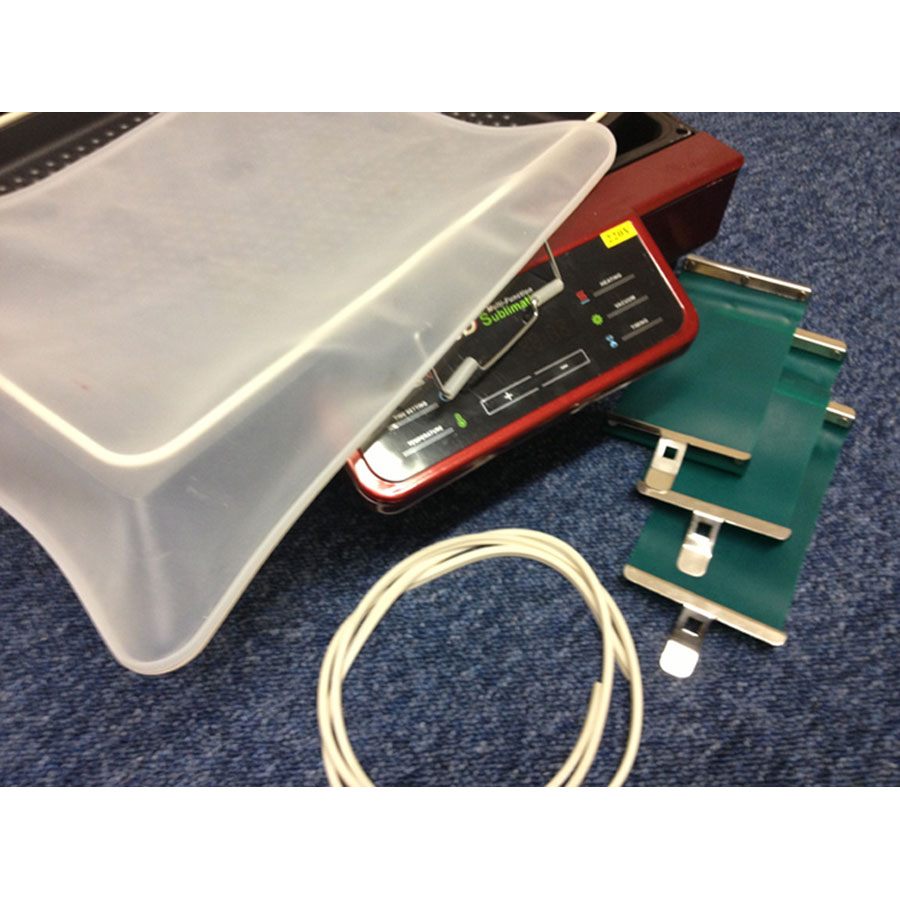

Packing List :
 |
3D Vacuum Heat Press Machine with connection wire
|
1 set
|
 |
11oz Mug Clamper
|
2pcs
|
|
15oz Mug Clamper
|
1 pc
|
 |
Heat-reisistant Gloves
|
1pair
|
 |
Vacuum Film
|
1pc
|
 |
Heat-reisistant Tube
|
1pc
|
 |
Heat-reisistant Sealing
|
1pc
|
 |
Product Manual
|
1pc
|

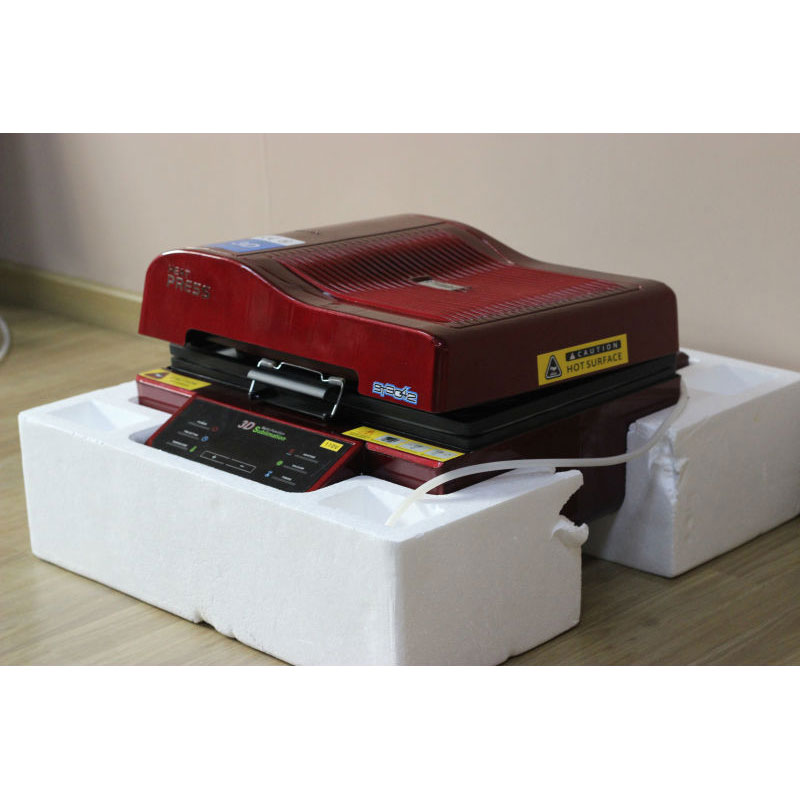

Package:
CTN Size: 720X640X420mm(28.3"X25.2"X16.5")
Gross Weight: 25kg
Tips:
There are several molds and clampers in our package. Also, we supply various molds for your option. Please check the area of related products above for your reference.
How to make sublimation mugs printing
How to make sublimation phone case printing
3D vacuum heat press machine operation
Maintenance of the 3D vacuum heat press machine
Warranty:
We provide support service for all customers to help them achieve successful business of heat transfer products.
• Comprehensive guarantee for one year except the wearing parts
• 24-hour technical support by email or calling
• User-friendly English manual for machine using and maintaining
About Spare Parts
If the parts were broken during the guarantee period, we will provide a new part for free. We will send clients new parts once after they return the broken one. And customer can buy a new one from our company if the guarantee period is expired.
