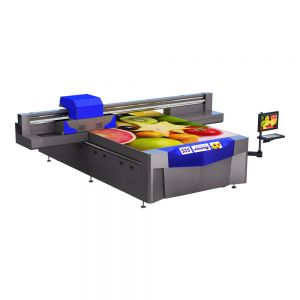

This UV Flatbed Printer can print onto almost all the flexible and hard materials, using environmentally friendly UV technology with non-plate and non-mesh processes. You can easily achieve efficient production with a small imprint and a single operation. This printer is a good option for small to medium print runs; in many fields such as advertisement, decoration, glass processing, etc.
Technological Advantages:
Design: The true flatbed design uses a unique strong sectional vacuum system in six different zones, or a set of built-in wheels that can be lifted up and down to fix media to the table, while printing, to provide accurate registration. The heavy-duty chassis ensures durability, and enables to hold heavy materials up to 100 mm thick. The bed is equipped with media locating pins, for accurate media replacement, to obtain the most accurate results when printing the same image repeatedly.
Ink: A negative pressure ink supply system controls traditional colors, white ink and varnish separately. Correct purging is achieved with state-of the-art Printhead technology that uses a built-in temperature sensor and a heater. This guarantees fluid and continuous prints with no auto cleaning while printing, so you save a lot of UV ink each year.
Ink Colors: Basic 4 colors, 6 colors, white and varnish options are available. For white color applications you can choose from: overlay white, underlay white, fill white, spot white and under color white. Clear top coating varnish as a separate application is used to increase outdoor durable life, avoid scratch and add or reduce gloss.Unique bi-directional printing option, makes it easy to switch from white underlay to white overlay option, saving time while the x-beam returns.
Printheads: This printer uses Konica Minolta KM512-14pl printheads and can achieve a maximum resolution of 1440 dpi. An integrated printhead capping device system, while the printer is in stand-by mode protects the nozzles from light and dust automatically, to extend printhead durability and reduce ink usage.
RIP Software: Caldera, Photoprint, or Manager V9.22 are the RIP software options for this printer, you can achieve vivid and sharp printed images by using the “feather” option of these RIP software.
Applications
You can use this printer using a wide range of rigid materials, such as glass, ceramic tiles, aluminum, metal, wood, stone, billboards, acrylic, Plexiglass, foam board, or packaging paper; or flexible media like wallpaper, glistening film, canvas, carpet, leather, paper, and more.
Quotation:
Printer Model
Printing width(mm)
Printhead Number
Color Model
FBP-3020-5C-UV
78.7" (2000mm)
5
C, M ,Y ,K, W
FBP-3020-6C-UV
78.7" (2000mm)
6
C,M,Y,K,W,V
FBP-3020-7C-UV
78.7" (2000mm)
7
C,M,Y,K,LC,LM,W
FBP-3020-8C-UV
78.7" (2000mm)
8
C,M,Y,K,W,LC,LM,W,V
Detail:
Sample:
| Interface | USB2.0 |
| Ink colors | C,M,Y,K,LC,LM,White,Varnish |
| Max Media thickness | 100mm |
| Print resolution | 720 x 1440dpi |
| Printer head | Konica 512/14PL Print head |
| Max print size | 3060mm x 2050mm |
|
|
Model
|
LFIP-FBP-UV 3020
|
|
|
Table Type & Print Area
|
Table Options
|
Vacuum
|
|
|
Print Length
|
3.06m/10FT
|
||
|
Print Width
|
2.05m/6.7FT
|
||
|
Custom table width for glass ,wood
|
2.5m/8.2FT
|
||
|
Print Heads Arrangement
|
Max Media Thickness
|
100mm/39.3IN
|
|
|
Print Head Type
|
KM512( Heater& Sensor included)
|
||
|
Colors Mode
|
(C, M, Y, K, LC, LM, White, Varnish)
|
||
|
Options For Future Upgrade
|
8 Heads Configuration
|
||
|
Print Mode
|
Printing Way in "X" Direction
|
Bidirectional& Unidirectional Print
|
|
|
Printing Way In "Y" Direction
|
Print Forward & Backward
|
||
|
Print Speed & Resolution
|
Highest Resolution In DPI
|
1440 dpi
|
720DPI*1440dpi
|
|
Speed At Highest Resolution
|
10M2
|
||
|
Lowest Resolution In DPI
|
720dpi
|
720DPI*720dpi
|
|
|
Speed at lowest Resolution at 4pass
|
15M2
|
||
|
UV Ink& Varnish
|
Coverage In M2/Liter
|
90 -100M2(1000 FT2)/Liter
|
|
|
3D Vision Printing Application
|
Yes
|
||
|
UV Type Clear Jetting Primer Option
|
Yes
|
||
|
UV Type Clear Varnish Option
|
Yes
|
||
|
Secondary Operations
|
Can Laminate With EVA?
|
Yes
|
|
|
Can Insulated Glass
|
Yes
|
||
|
UV Curable System
|
UV Curable system
|
U.K. 6 Level energy adjustment
|
|
|
UV Lamp Lifespan
|
1800 Hours
|
||
|
UV Lamp Price
|
USD380
|
||
|
Control System & Rip Software
|
Control System
|
FPGA V3.3
|
|
|
Print Head Maintenance
|
Integrated cap and purging devices
|
||
|
Ink Supply System
|
Automatic &Negative Pressure
|
||
|
Print Locating System
|
Raster encoder
|
||
|
Output Interface
|
USB
|
||
|
Rip Software
|
Top class Caldera
|
||
|
Power And Condition
|
Power Requirement
|
Single Phase AC 220V,50/60HZ,5.8KW
|
|
|
Workshop Condition
|
Dust free room,T-20℃-28℃,H-40%-60%
|
||
|
Real Size& Wood Crate
|
Dimension(After installation)
|
4130x4000x1490mm
|
|
|
Wood Crate Size
|
4900x2300x2100mm
|
||
|
Gross Weight
|
2500kgs
|
||
