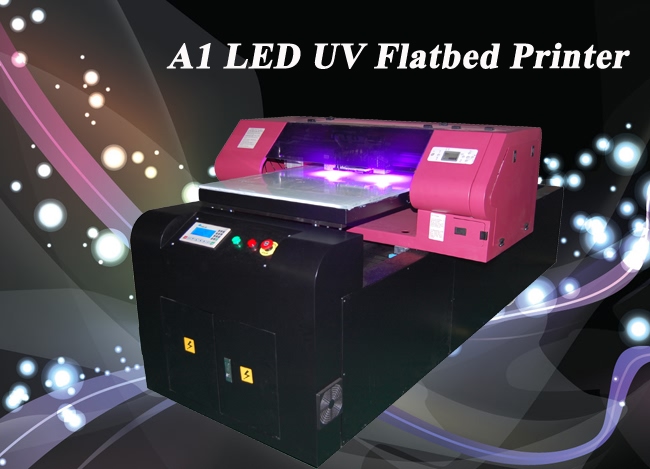

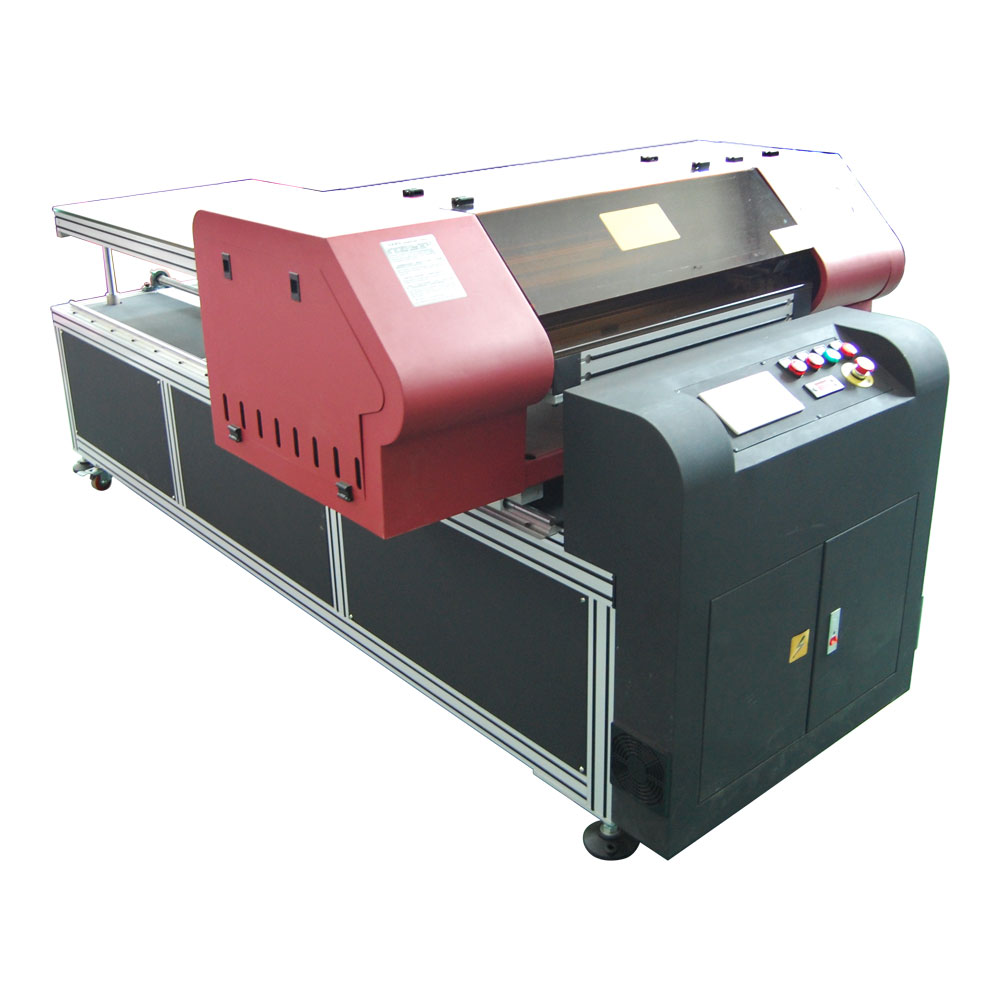

Descriptions:
LED UV Flatbed Printer have opaque white ink performance for higher-quality printing on dark materials. Printing ink dry instantly,emboss output images with 3D effect,increase your products added value and give higher competitive ability in the market,while other printing technology can't.
Features:
• LED UV curing technology
LED UV offers decisive energy savings, longer diode lifetime and a close to no VOC* emitting printing environment.
* VOC = Volatile Organic Compounds
• High-density Opaque White Ink
White UV ink creates a very opaque image, allowing you to print vibrant colors onto virtually any colored or transparent substrate with 3D textured result.
• Photo quality printing
Equipped with Epson Printhead DX5 ,The LED UV Printer realize the real photo printing quality with 2880*1440DPI.
• Supper Printing Width and Hight Printing Speed
Max printing width 600mm×1500mm
Printing Speed A1(1440dpi)/10min
• Direct Printing onto materials

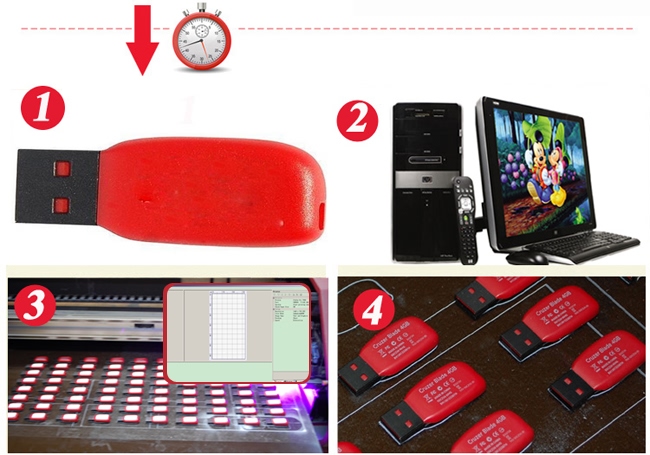

Because the integrated LED-UV lamp instantly cure ink during printing, The LED UV Flatbed can print directly onto materials such as PET, ABS, PVC, polycarbonate, PS and other plastics, as well as papers and card stocks.

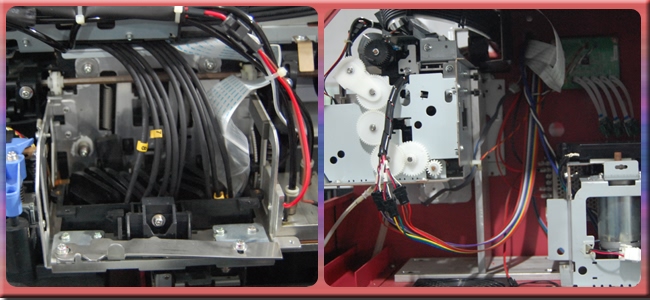

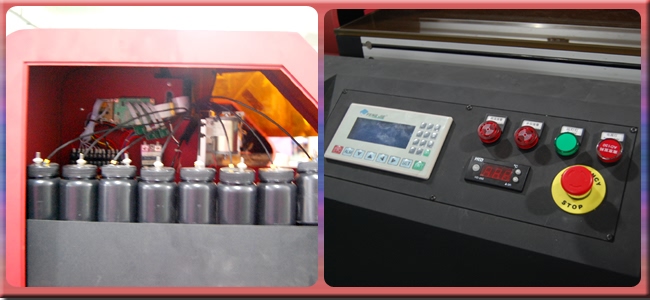

| EPSON Original Board | Water Cooling System for UV Lamp |
| Large Volume Ink Tank | Control Panel |
| Configuration of Dual LED UV Lamp | Auto Cleaning System |

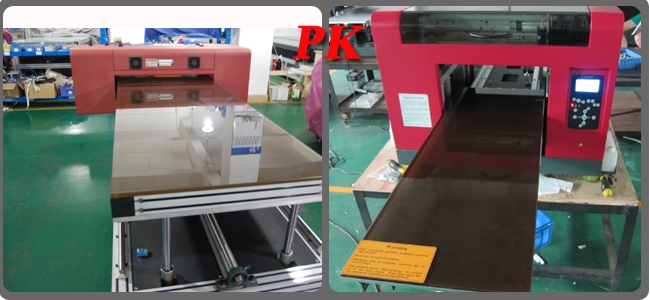

| Printing size of A1 LED UV Flatbed Printer: 600mmx1500mm which is bigger than the size of A3 and suitable for large quantity UV printing work. |
Printing size of A3 LED UV Flatbed Printer: 280mm x 590mm which is smaller and able to print personalized printing. |

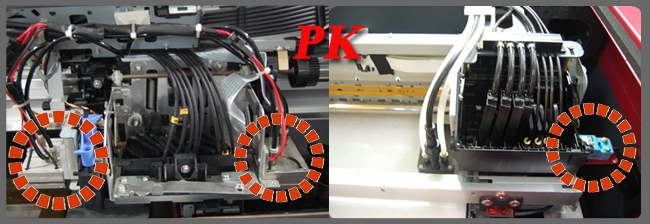

| A1 LED UV Flatbed Printer uses two LED UV lamps which perform faster printing and drying | A3 LED UV Flatbed Printer uses single LED UV lamp |
| A1 LED UV Flatbed Printer is bigger and suitable for sea transportation | A3 LED UV Flatbed Printer is smaller and suitable for air transportation. |
Since it is bigger and faster in printing, the price of A1 LED UV Flatbed Printer is higher than that of A3 LED UV
Flatbed Printer.
Quality report:
| Interface | USB2.0 |
| Ink colors | C,M,Y,K,+4W |
| Max Media thickness | 12mm |
| Printer head | Micro Piezo Inkjet 1440 Nozzles |
| Print resolution | 2880dpi |
| Max print size | 600mm x 1500mm |
|
Model
|
A1 LED UV Flatbed Printer
|
|
|
Print size
|
A1 large format size 600mm×1500mm
|
|
|
Printhead
|
Micro Piezo Inkjet 1440 Nozzles
|
|
|
Print color
|
C,M,Y,K,+4W
|
|
|
Print direction
|
Bi-Direction
|
|
|
Print speed
|
A1(1440dpi)/10min
|
|
|
Max. height of object
|
12cm
|
|
|
Max.printing weight
|
50kg
|
|
|
Max.printing resoultion
|
2880dpi
|
|
|
Ink tank volume
|
220ml
|
|
|
Ink
|
Environmental UV ink
|
|
|
Height adjustment
|
Automatic
|
|
|
Height of object detection
|
Automatic induction
|
|
|
Printhead protection
|
Intelligent self-protection system
|
|
|
Power supply
|
110-220V 50-60Hz
|
|
|
Printing interface
|
USB2.0/IEEE1394
|
|
|
Operation system
|
Windows XP，WIN7 32bit
|
|
|
Working Environment
|
Temperature 10-35°C relative humidity 20-80RH
|
|
|
LED UV
|
LED UV Syetem
|
Six levels of adjustable system for different requirement
|
|
UV Lamp
|
60W + 60W
|
|
|
LED UV life span
|
25000h
|
|
|
Software
|
Rip software
|
|
|
Printer size
|
2740×1320×1130mm
|
|
|
Shipping size
|
2800×1630×1330mm
|
|
|
Printer Net/Shipping Weight
|
400kg/500kg
|
|
Average Rating: 0
Packing List:
 |
Flatbed printer
|
1unit
|
 |
Driver CD
|
1pc
|
 |
RIP Software CD
|
1pc
|
 |
Power supply cable
|
1pc
|
 |
USB cable
|
1pc
|
 |
7P cable
|
8pcs
|
 |
Decoding board
|
8pcs
|
 |
Ink Damper
|
4pcs
|
 |
50ml syringe
|
6pcs
|
 |
10ml syringe
|
6pcs
|
 |
Silica gel tube
|
1meter
|
 |
Position sensor
|
2pcs
|
 |
Lubricant for slipper
|
1bottle
|
 |
ink tube
|
2pcs
|
Package:
A1 LED UV Flatbed Printer Working Video
seller assumes all responsibility for this listing
Quantity: Country:
| Handling time |
|---|
| Will usually ship within 3 business days of receiving cleared payment. |
 |
We have 4 overseas warehouses all over the world now including: Russia, USA, Brazil and Mexico. and We are setting up another one in Europe. Normally, we will ship your order from the nearest warehouse to you. if the stock near you is sold out, we will ship your order to you directly from china. |
 |
Purchases can be returned under the following conditions: 1) There are quality problems after opening the package. 2) Products are different than on the order list. 3) Products are irreparably damaged during transportation. |
| Payment method | |
|---|---|
 |
1.Paypal (online payment) 2.Creidit card 3.Bank Transfer (T/T) 4.Western Union online/offline payment |

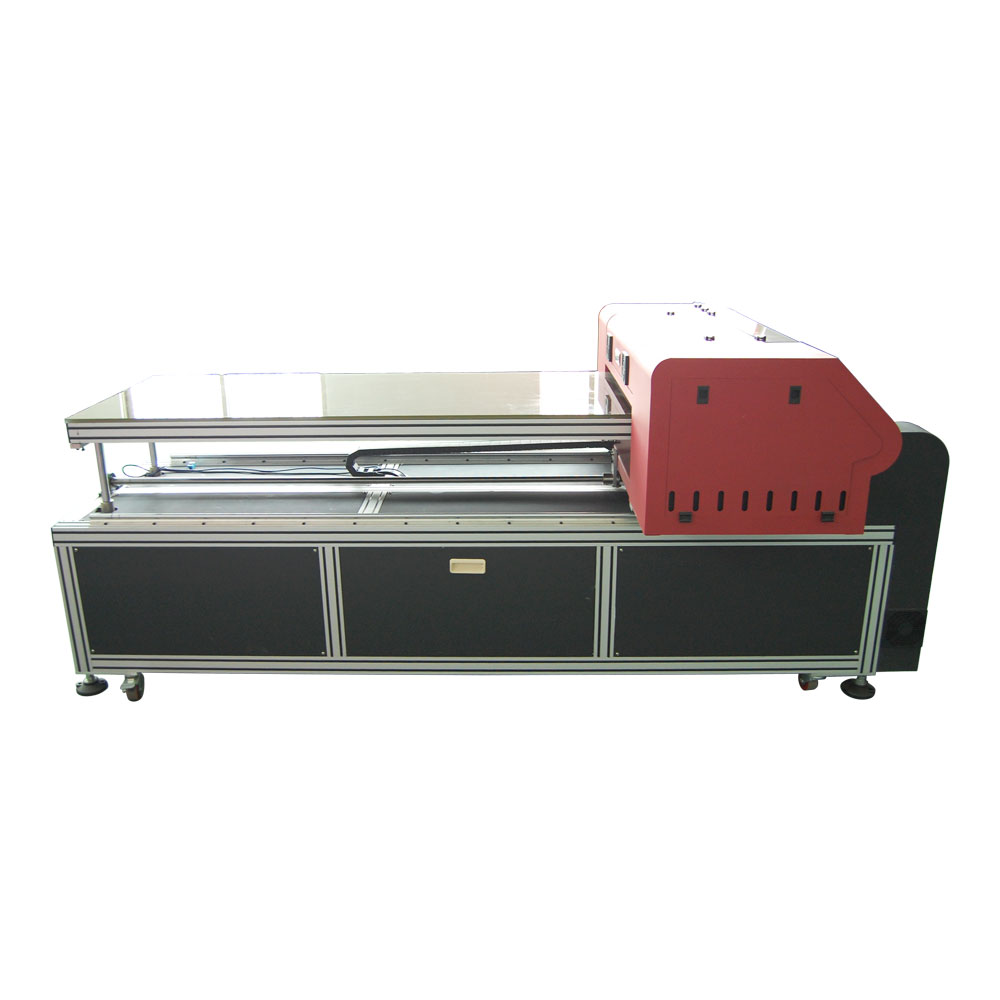

A1 LED UV Flatbed Printer
